Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Hose cut off factor MM | Product length in |
|---|---|---|---|---|---|
| 10411-22-08ZF | 2.260 | 57.500 | 1.020 | 26.000 | 2.264 |
| 10411-22-08SR | 2.260 | 57.500 | 1.020 | 26.000 | 2.264 |
| 10411-22-06Z | 2.145 | 54.500 | 0.960 | 24.500 | 2.146 |
| 10411-20-06Z | 2.240 | 57.000 | 1.060 | 27.000 | 2.240 |
| 10411-18-05Z | 2.030 | 51.500 | 0.930 | 23.500 | 2.028 |
| 10411-18-04Z | 2.030 | 51.500 | 0.930 | 23.500 | 2.028 |
| 10411-16-06ZF | 2.060 | 52.500 | 0.880 | 22.500 | 2.067 |
| 10411-16-05ZF | 1.980 | 50.500 | 0.880 | 22.500 | 1.990 |
| 10411-14-05Z | 1.948 | 49.500 | 0.846 | 21.500 | 1.948 |
| 10411-14-04Z | 1.910 | 48.500 | 0.810 | 20.500 | 1.909 |
| 10411-12-04ZN | 1.900 | 48.500 | 0.800 | 20.500 | 1.910 |
| 10311-40-16DXZ | 3.620 | 92.000 | 1.770 | 45.000 | 3.622 |
| 10311-32-12DXZ | 3.160 | 80.500 | 1.650 | 42.000 | 3.169 |
| 10311-22-05Z | 2.120 | 54.000 | 1.020 | 26.000 | 2.126 |
| 10211Y-16-04FAZ | 2.280 | 58.000 | 1.100 | 28.000 | — |
| 08ZR-608 | — | — | 1.460 | 37.084 | — |
| 08ZR-108 | — | — | 1.560 | 39.624 | — |

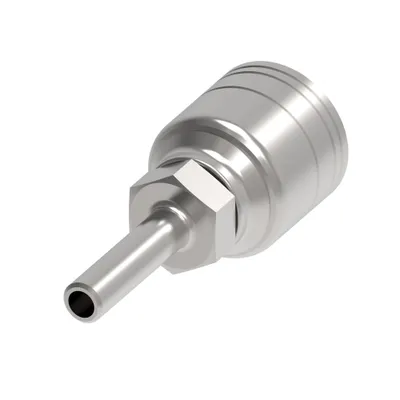

| 08Z-T08-BG | — | — | 1.700 | 43.180 | — |
| 08Z-T08 | — | — | 1.700 | 43.180 | — |
Common to all listed parts
| Angle shape | Straight |
| Construction Style | Crimp |
