Braided hose and fittings Parts

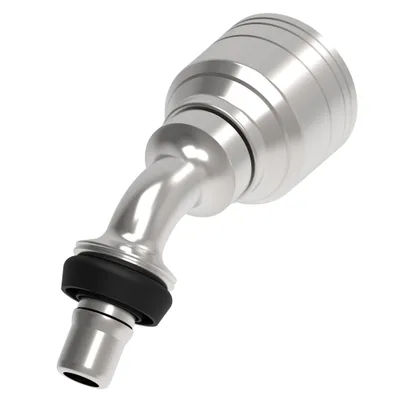

Danfoss

08Z-BC48

Hose End (perm) 1S/1R 45 D Male STC

Danfoss

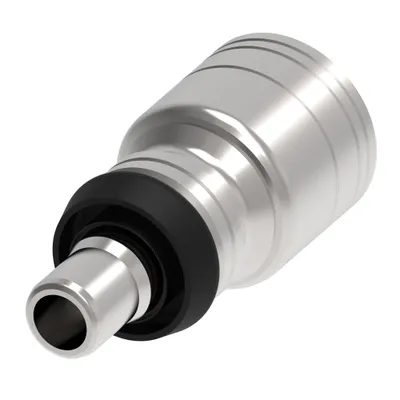

08Z-BC08-BG

Hose End (perm) 1S/1R

Danfoss

08Z-BC08

Hose End (perm) 1S/1R Str Male STC

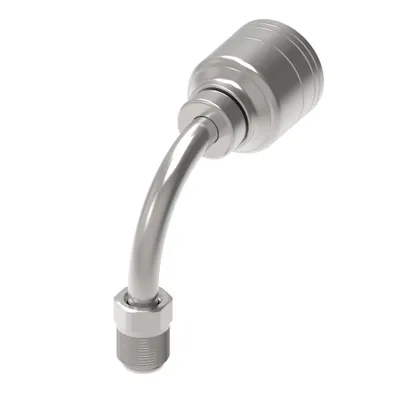

Danfoss

08Z-B68-BG

Hose End (perm) 1S/1R

Danfoss

08Z-B68

Hose End (perm) 1S/1R 90 D M INVERTED

Danfoss

08Z-B48-BG

Hose End (perm) 1S/1R

Danfoss

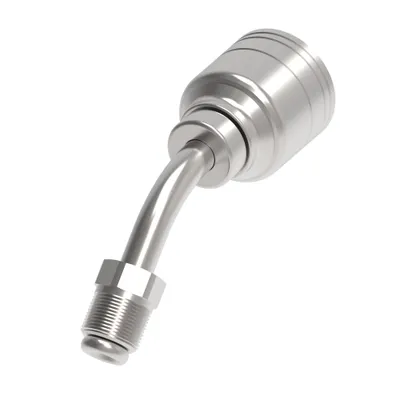

08Z-B48

Hose End (perm) 1S/1R 45 D M INVERTED

Danfoss

08Z-B10-BG

Ftng (perm), SAE INV

Danfoss

08Z-B10

Ftng (perm), SAE INV FLARE, STR MALE

Danfoss

08Z-B08-BG

Hose End (perm) 1S/1R

Danfoss

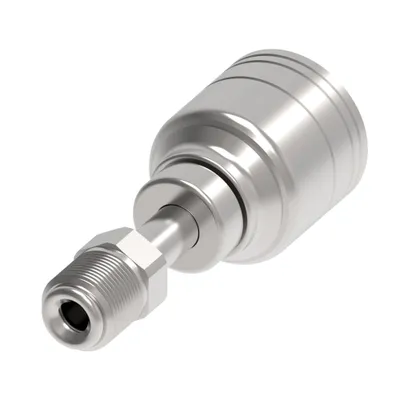

08Z-B08

Hose End (perm) 1S/1R Str M. INVERTED

Danfoss

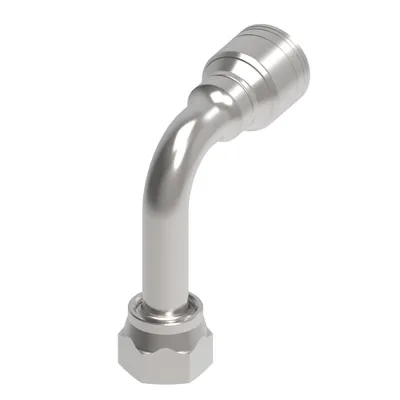

08Z-A70-BG

Hose End (perm) 1S/1R

Danfoss

08Z-A70

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

08Z-A68-BG

Hose End (perm) 1S/1R

Danfoss

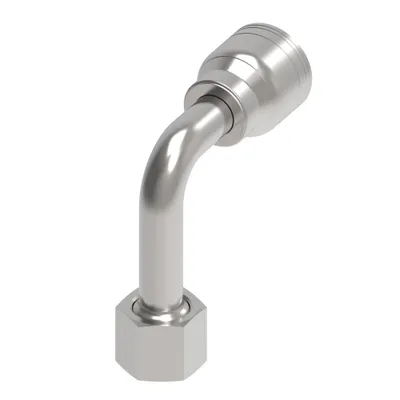

08Z-A68

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

08Z-A32-BG

Hose End (perm) 1S/1R

Danfoss

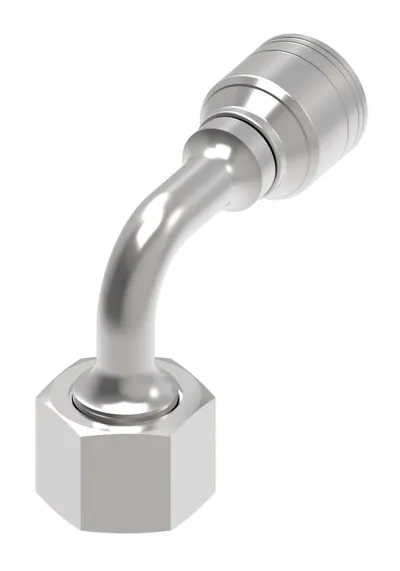

08Z-A32

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

08Z-A30-BG

Hose End (perm) 1S/1R

Danfoss

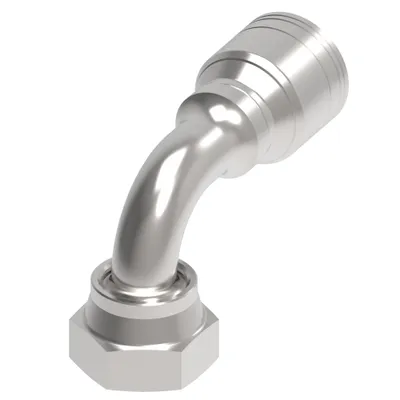

08Z-A30

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

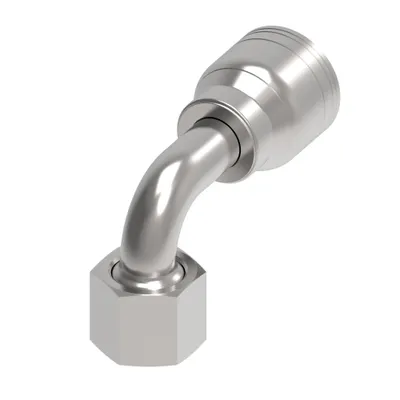

08Z-A28-BG

Hose End (perm) 1S/1R

Danfoss

08Z-A28

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

08Z-A26-BG

Hose End (perm) 1S/1R

Danfoss

08Z-A26

Hose End (perm) 1S/1R 90 D F. ORS SWVL

Danfoss

08Z-80P-BG

Ftng (perm), BSPP

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Drop dimension IN	Drop dimension MM	Hose cut off factor IN	Hose cut off factor MM
08Z-BC48	639789293497	1.170	29.7	2.370	60.198
08Z-BC08-BG	—	—	—	1.440	36.576
08Z-BC08	639789293480	—	—	1.440	36.576
08Z-B68-BG	810075336672	2.000	44.0	1.560	39.624
08Z-B68	639789293220	1.750	44.5	1.560	39.624
08Z-B48-BG	810075336665	1.000	24.0	1.900	48.260
08Z-B48	639789295668	0.930	23.6	1.900	48.260
08Z-B10-BG	810075336658	—	—	1.930	49.022
08Z-B10	639789321176	—	—	1.930	49.022
08Z-B08-BG	810075336641	—	—	1.620	41.148
08Z-B08	639789293213	—	—	1.620	41.148
08Z-A70-BG	810075336634	3.000	70.0	1.910	48.514
08Z-A70	639789294869	2.760	70.1	1.910	48.514
08Z-A68-BG	810075336627	3.000	65.0	1.700	43.180
08Z-A68	639789293206	2.510	63.8	1.700	43.180
08Z-A32-BG	810075336610	2.000	48.0	2.270	57.658
08Z-A32	639789294852	1.880	47.8	2.280	57.912
08Z-A30-BG	810075336603	1.000	32.0	1.910	48.514
08Z-A30	639789294845	1.270	32.3	1.910	48.514
08Z-A28-BG	810075336597	1.000	29.0	1.670	42.418
08Z-A28	639789293190	1.150	29.2	1.670	42.418
08Z-A26-BG	810075336580	1.000	23.0	1.390	35.306
08Z-A26	639789293183	0.900	22.9	1.390	35.306
08Z-80P-BG	—	2.000	56.0	2.400	60.960

Common to all listed parts

Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-8
Product material	Carbon steel
Thread sealant	No
