Danfoss 08Z-L72

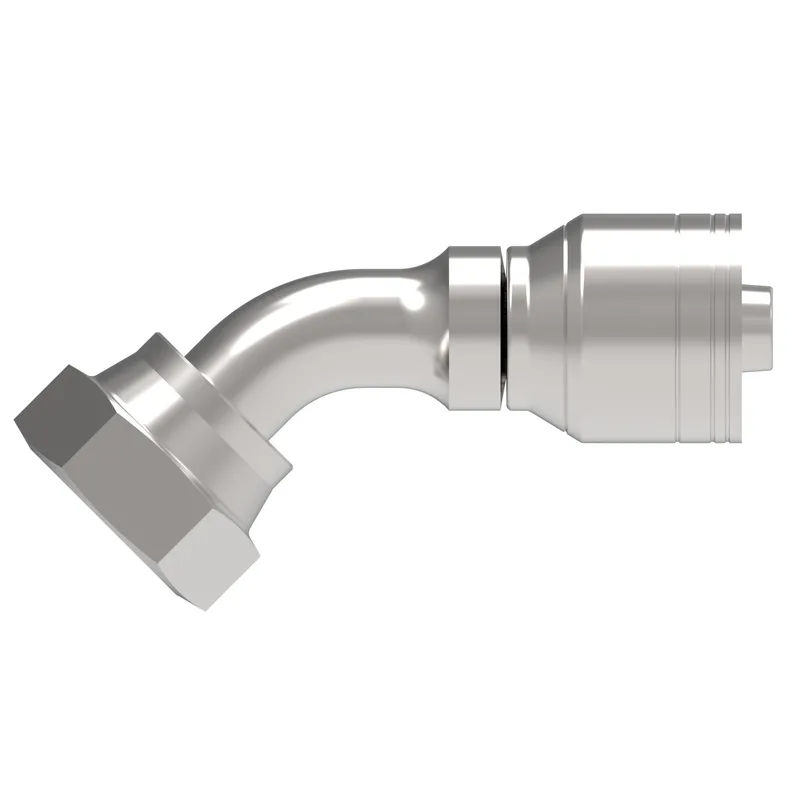

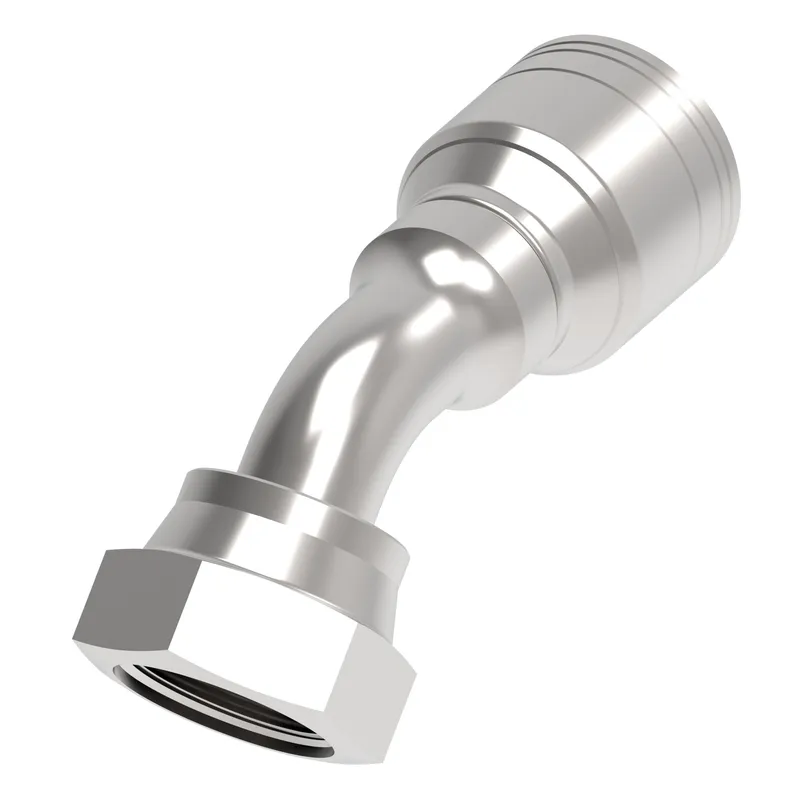

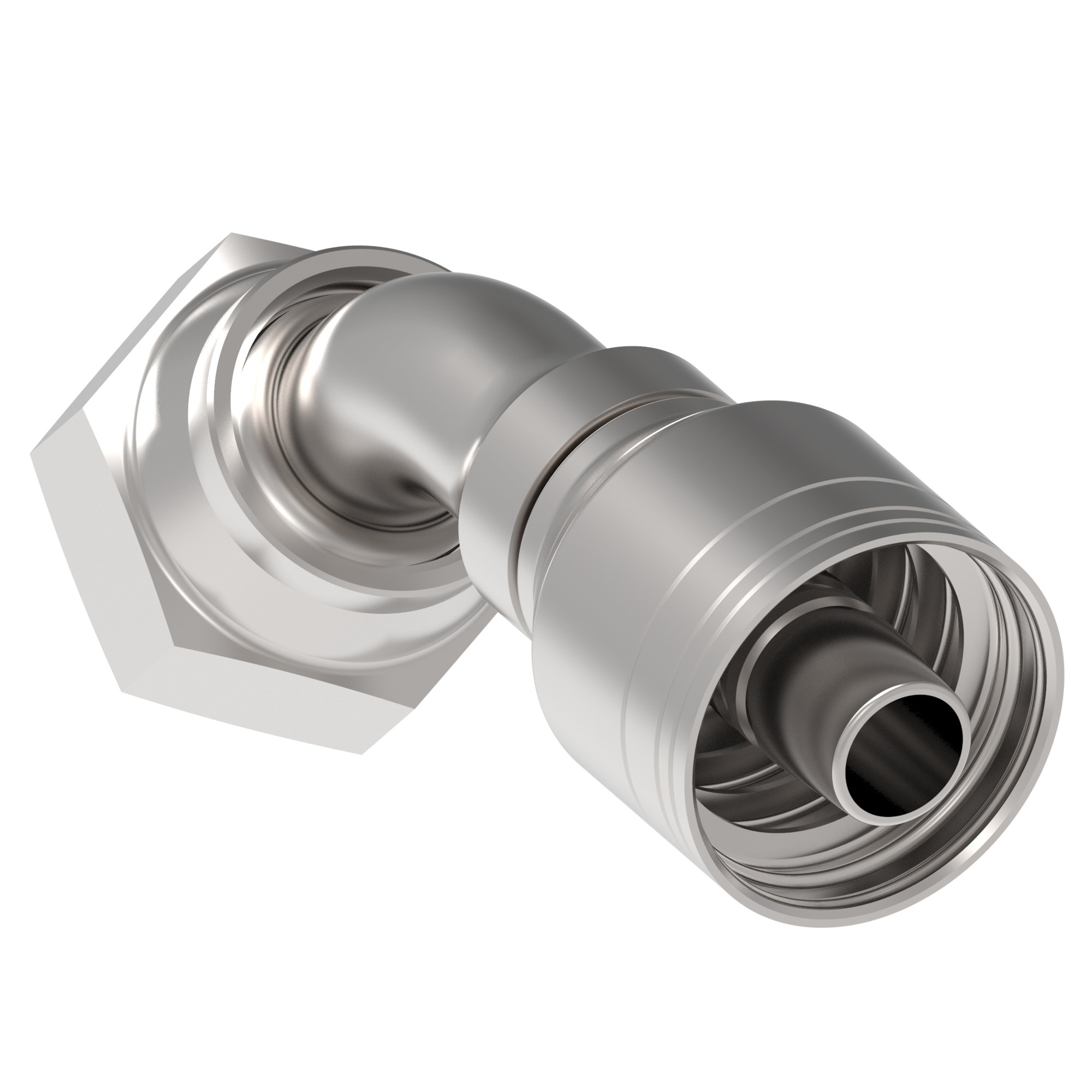

Hose End (perm) 1S/1R 45 D F. ORS SWVL

MPN
08Z-L72
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 08Z-L72?

Danfoss Hose End (perm) 1S/1R 45 D F. ORS SWVL, manufacturer part number 08Z-L72. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC639789294937
Angle shape45 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN0.830
Drop dimension MM21.1
End size 1-14
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN1.375
Hex size 1 MM34.9
Hose cut off factor IN2.340
Hose cut off factor MM59.436
Hose size-8
Inside diameter IN0.380
Inside diameter MM9.652
Product materialCarbon steel
Thread sealantNo
