Danfoss 08Z-L68-BG

Hose End (perm) 1S/1R

MPN
08Z-L68-BG
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

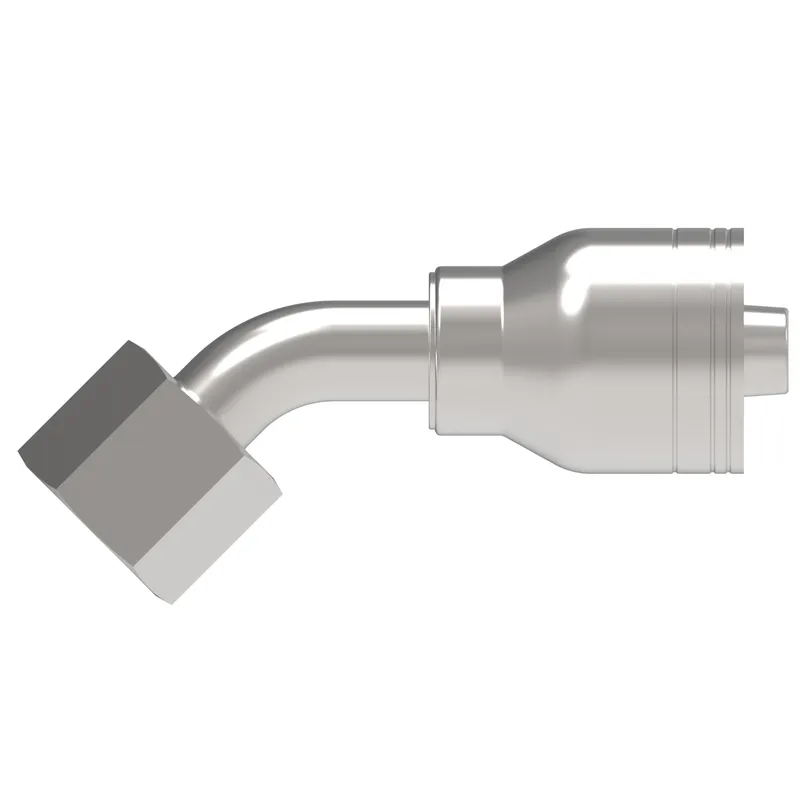

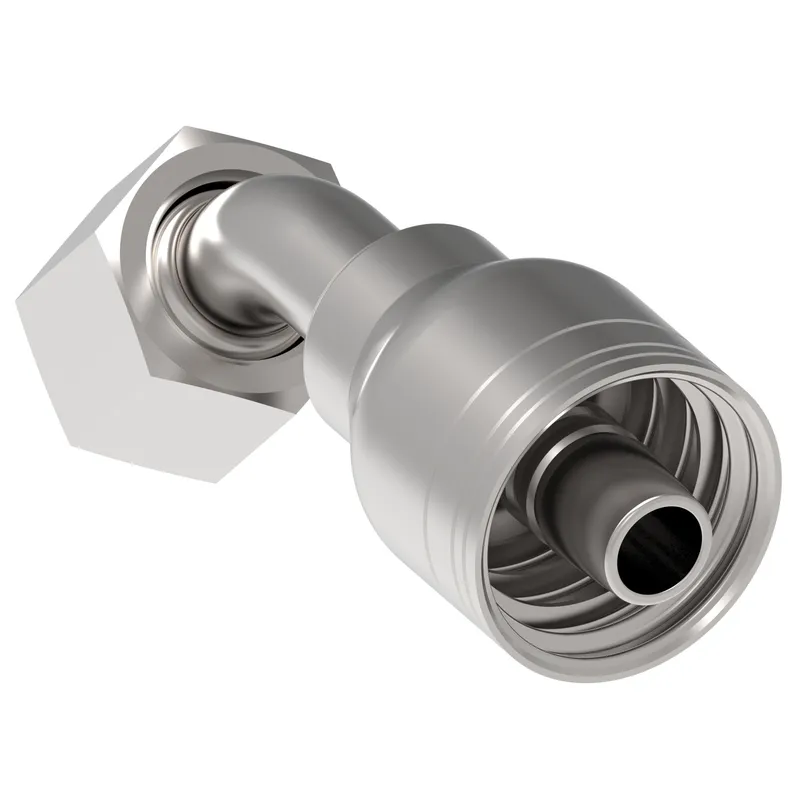

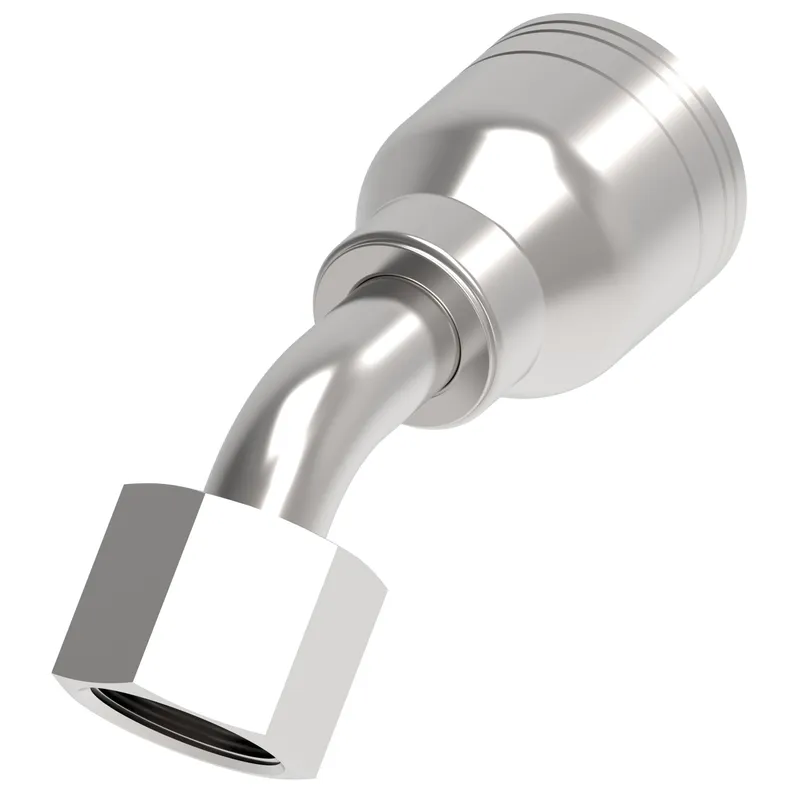

What is the Danfoss 08Z-L68-BG?

Danfoss Hose End (perm) 1S/1R, manufacturer part number 08Z-L68-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC810075336788
Angle shape45 Degree
BrandWeatherhead by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible tube OD IN0.50
Compatible tube OD MM12.700
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN1.000
Drop dimension MM15.0
End size 1-8
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN0.940
Hex size 1 MM23.9
Hose cut off factor IN1.790
Hose cut off factor MM45.466
Hose size-8
Inside diameter IN0.360
Inside diameter MM9.144
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.500
Tube OD 1 MM12.700

08Z-L68-BG: frequently asked questions

When can 08Z-L68-BG be shipped?

08Z-L68-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-L68-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-L68-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-L68-BG, subject to availability and destination.
