Danfoss 1AA10FR10

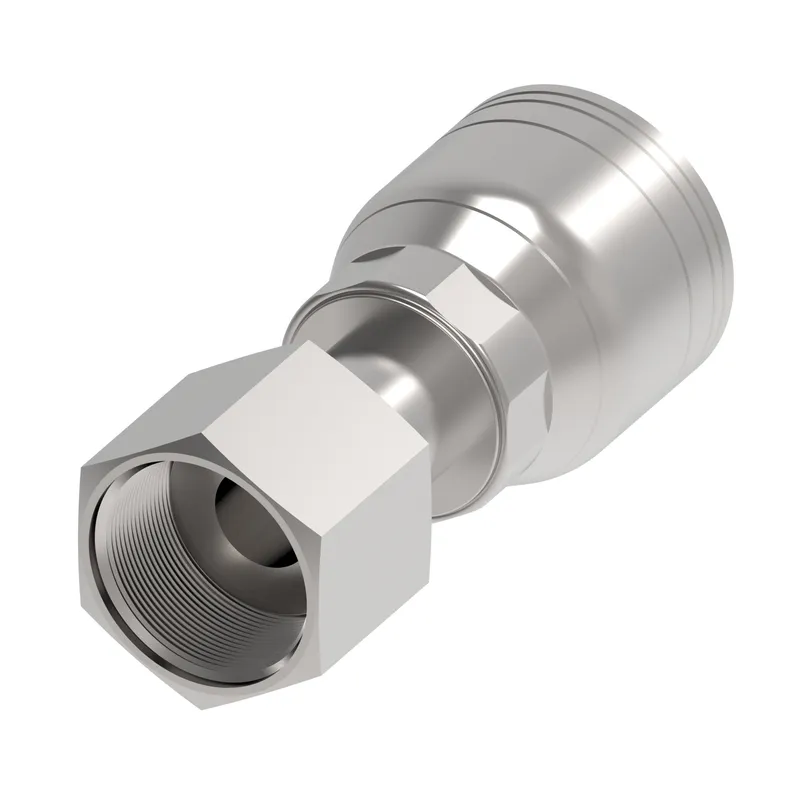

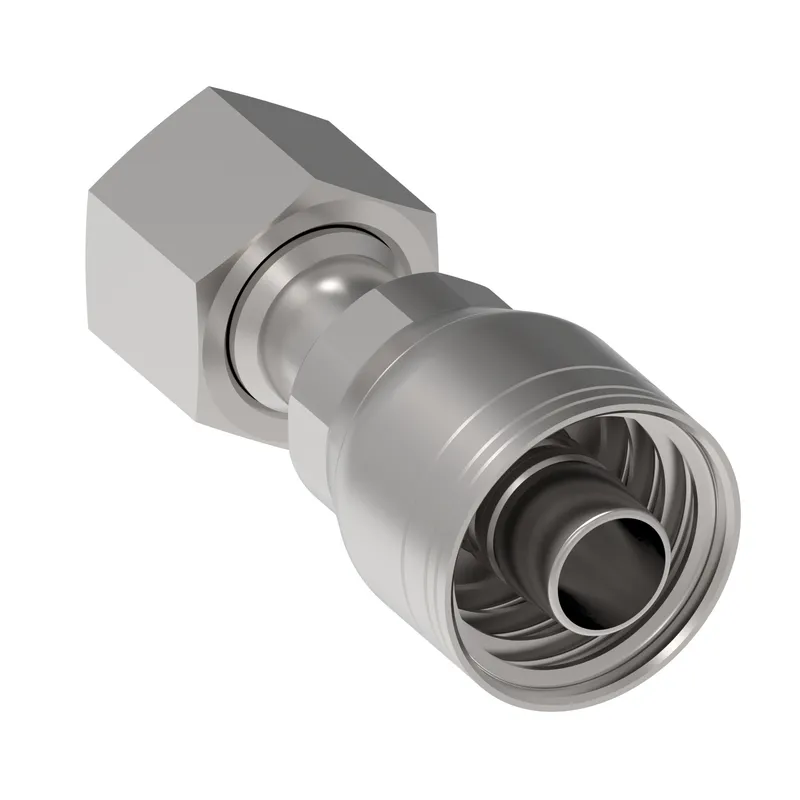

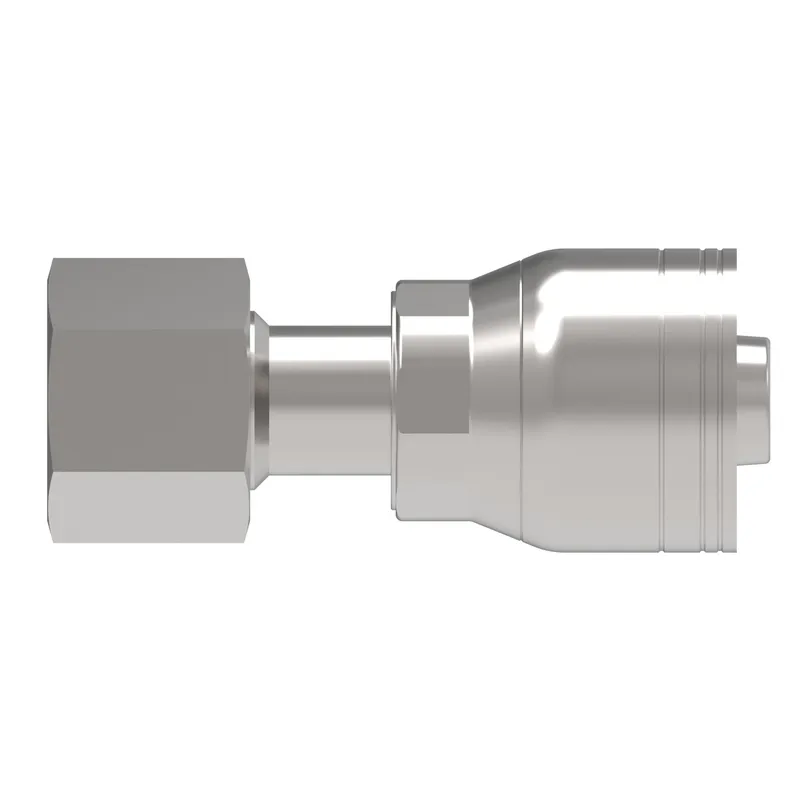

HOSE FTG, 1A/10, ORS-F/10, CS, STR

MPN: 1AA10FR10
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA10FR10?

Danfoss HOSE FTG, 1A/10, ORS-F/10, CS, STR, manufacturer part number 1AA10FR10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125194
A dimension IN	2.610
A dimension MM	66.300
Angle shape	Straight
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End Type 1	Female ORFS swivel
Finish plating	Zinc plating
Hex size 2 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	40.800
Hose size	-10
Inside diameter IN	0.450
Inside diameter MM	11.500
Product height in	1.390
Product height mm	35.306
Product length in	3.290
Product length mm	83.566
Product material	Carbon steel
Product width in	1.386
Product width mm	35.204
Series	1A/Z Series
Thread size 1	1-14 UNS
Working pressure max BAR	552.00
Working pressure max PSI	8100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
