Danfoss 1AA10MJ12

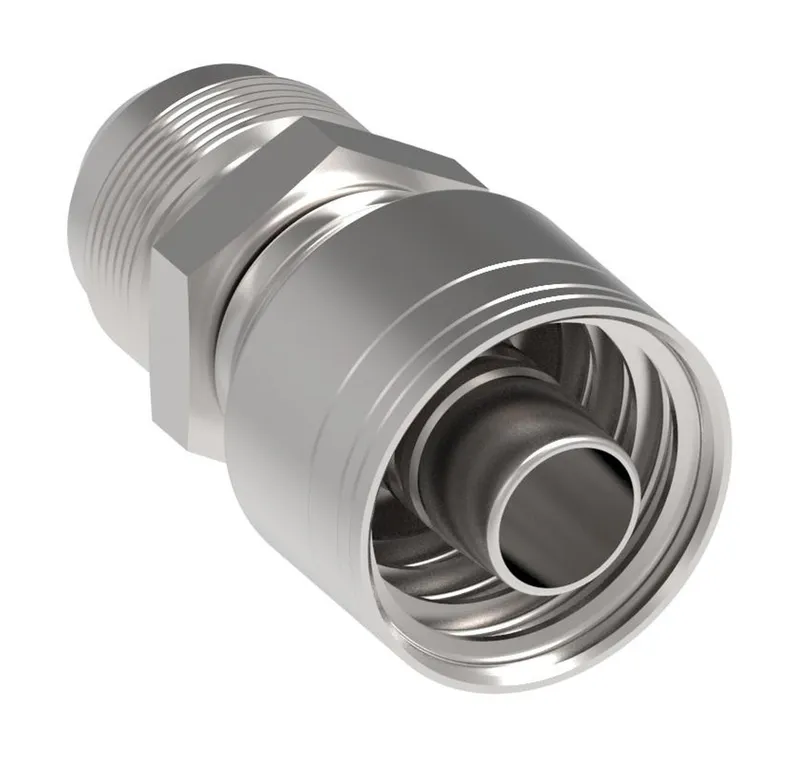

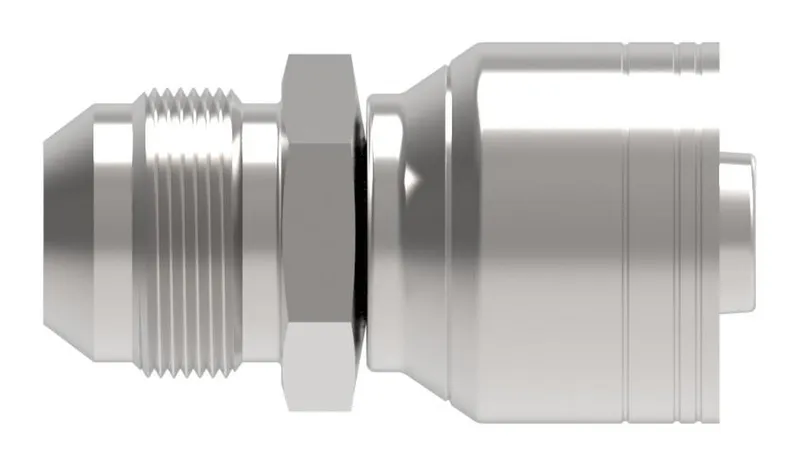

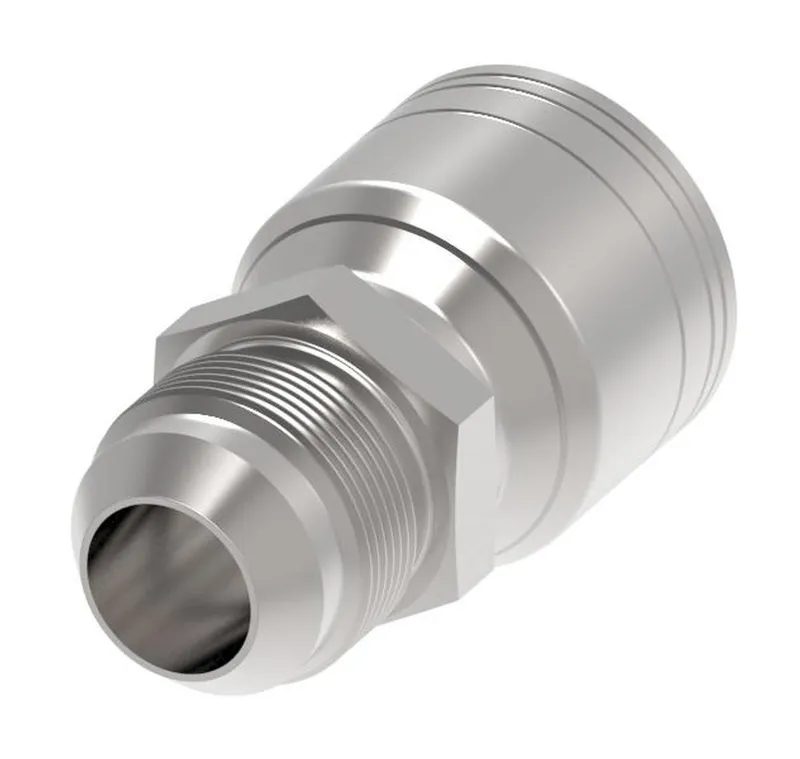

HOSE FTG, 1A/12, JIC-M/10, CS, STR

MPN: 1AA10MJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA10MJ12?

Danfoss HOSE FTG, 1A/12, JIC-M/10, CS, STR, manufacturer part number 1AA10MJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125361
A dimension IN	2.650
A dimension MM	67.400
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 2 MM	28.575
Hose cut off factor IN	1.590
Hose cut off factor MM	40.400
Hose size	-12
Inside diameter IN	0.480
Inside diameter MM	12.300
Product height in	1.563
Product height mm	39.700
Product length in	2.770
Product length mm	70.358
Product material	Carbon steel
Product width in	1.563
Product width mm	39.7
Series	1A/Z Series
Thread size 1	7/8-14 UNF
Working pressure max BAR	379
Working pressure max PSI	5500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
