Danfoss 1AA10FJB10C

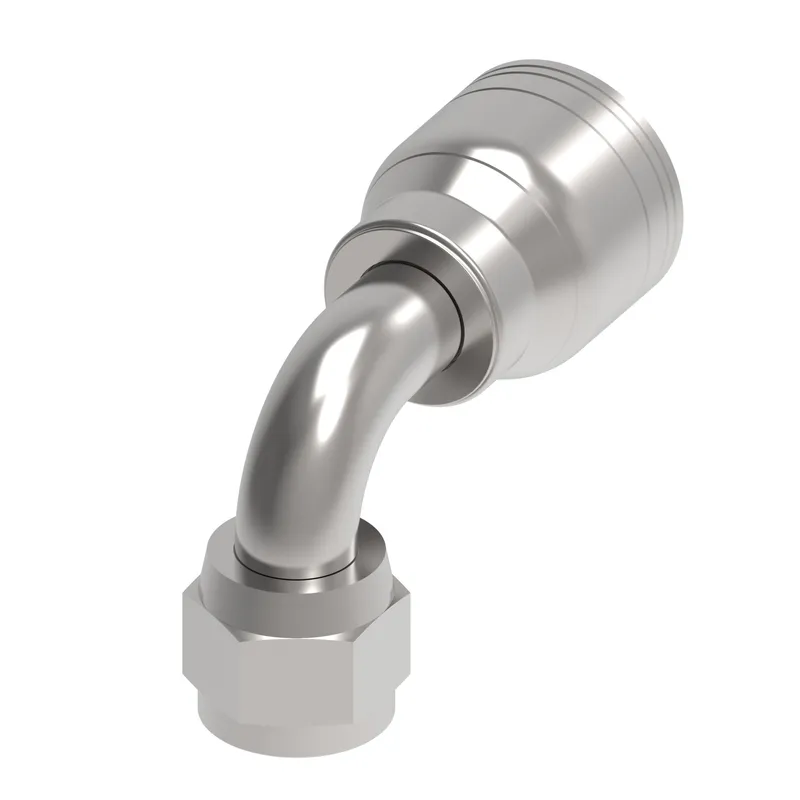

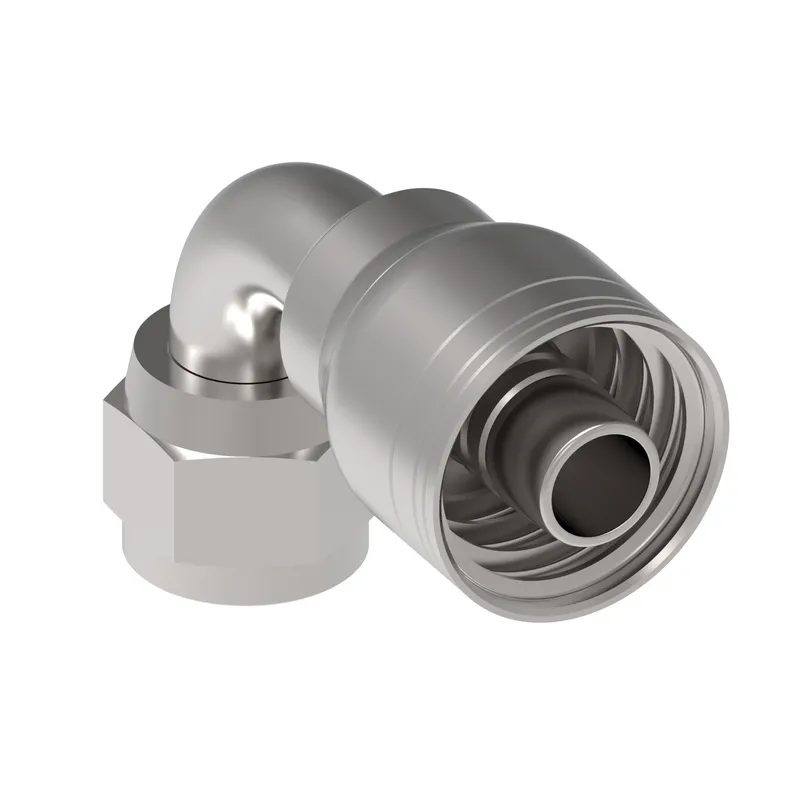

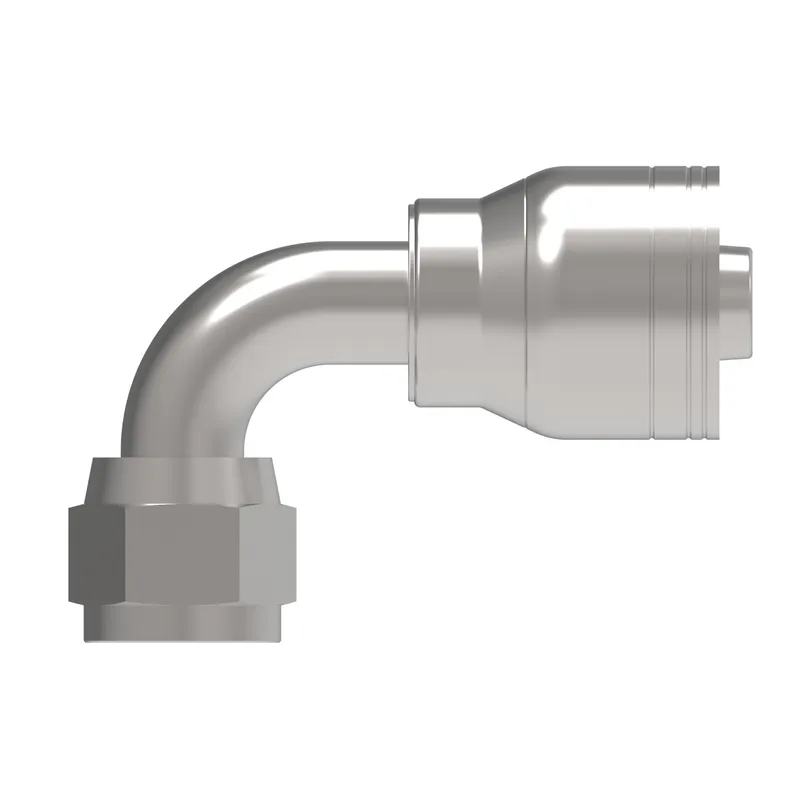

HOSE FTG, 1A/10, JIC-F/10, AP, 90D

MPN: 1AA10FJB10C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA10FJB10C?

Danfoss HOSE FTG, 1A/10, JIC-F/10, AP, 90D, manufacturer part number 1AA10FJB10C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.940
A dimension MM	74.700
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.520
Drop dimension MM	38.50
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Female 37 degree swivel
Finish plating	Passivate
Hex size 2 IN	1.000
Hex size 2 MM	25.400
Hose cut off factor IN	1.910
Hose cut off factor MM	48.600
Hose size	-10
Inside diameter IN	0.450
Inside diameter MM	11.500
Product height in	2.730
Product height mm	69.342
Product length in	3.645
Product length mm	92.583
Product material	316 Stainless steel
Product width in	1.380
Product width mm	35.052
Series	1A/Z Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Working pressure max BAR	350.00
Working pressure max PSI	5100.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
