Danfoss 1AA12DLB8C

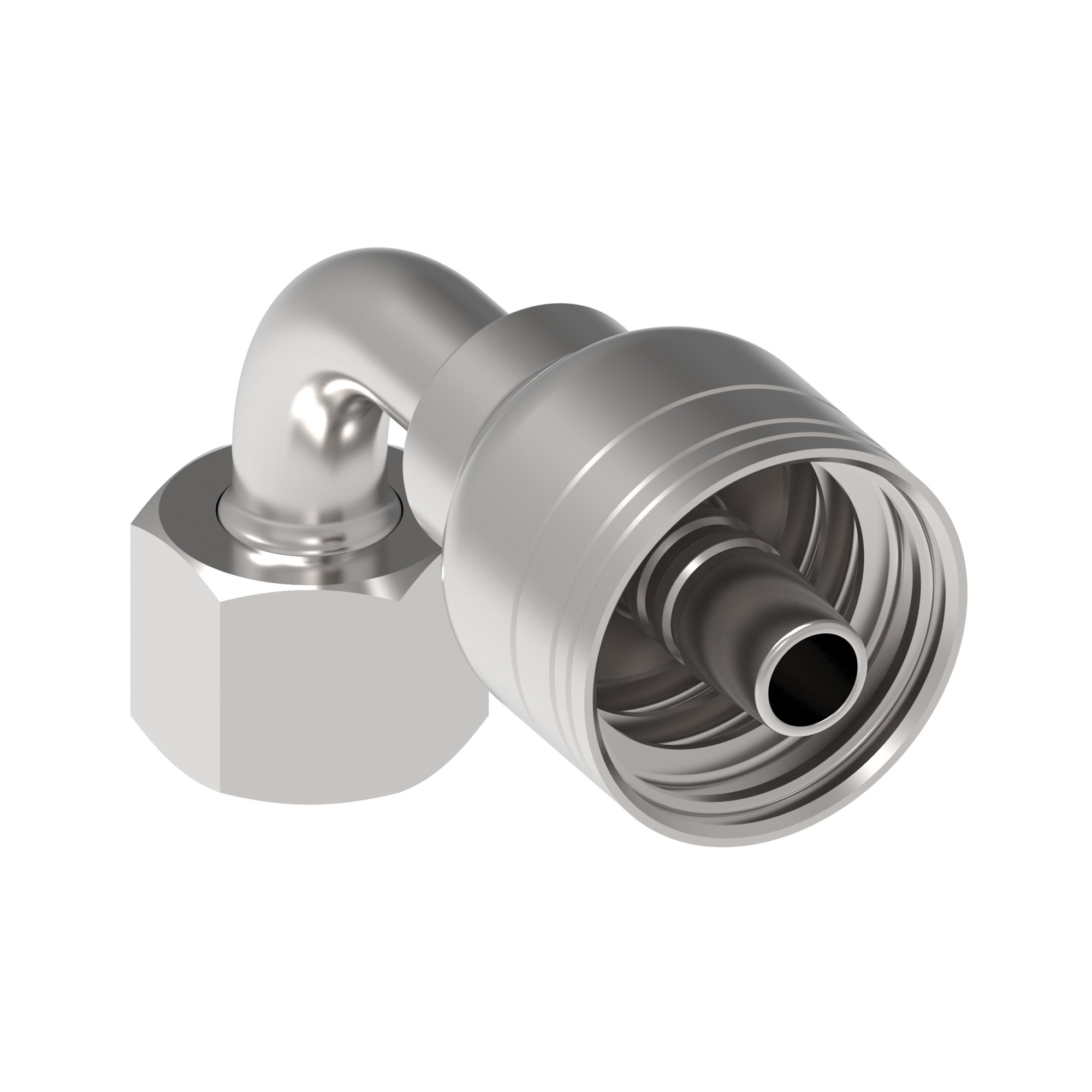

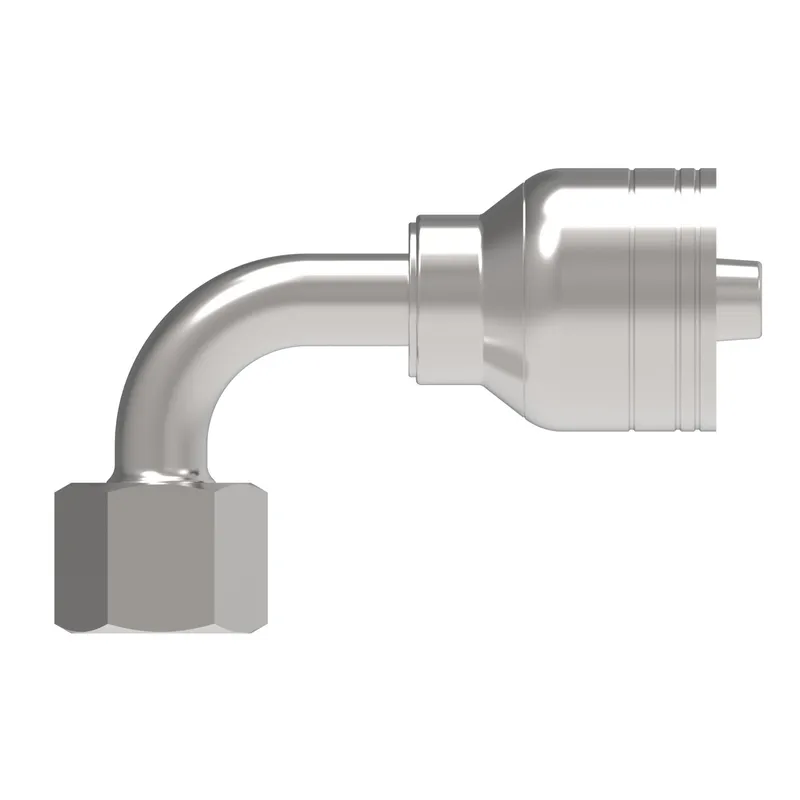

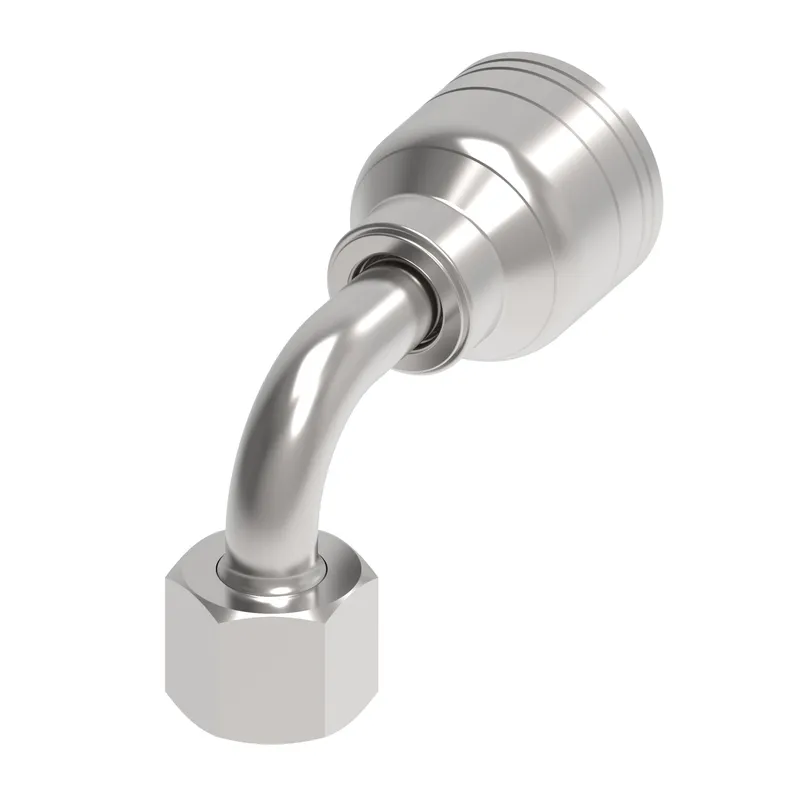

HOSE FTG, 1A/08, DKOL/12, AP, 90D

MPN: 1AA12DLB8C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12DLB8C?

Danfoss HOSE FTG, 1A/08, DKOL/12, AP, 90D, manufacturer part number 1AA12DLB8C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125453
A dimension IN	2.660
A dimension MM	67.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
Drop dimension IN	1.570
Drop dimension MM	40.00
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-12
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.063
Hex size 1 MM	26.988
Hose cut off factor IN	1.670
Hose cut off factor MM	42.400
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	2.180
Product height mm	55.372
Product length in	3.270
Product length mm	83.058
Product material	316 Stainless steel
Product width in	1.220
Product width mm	30.988
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	215.00
Working pressure max PSI	3125.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
