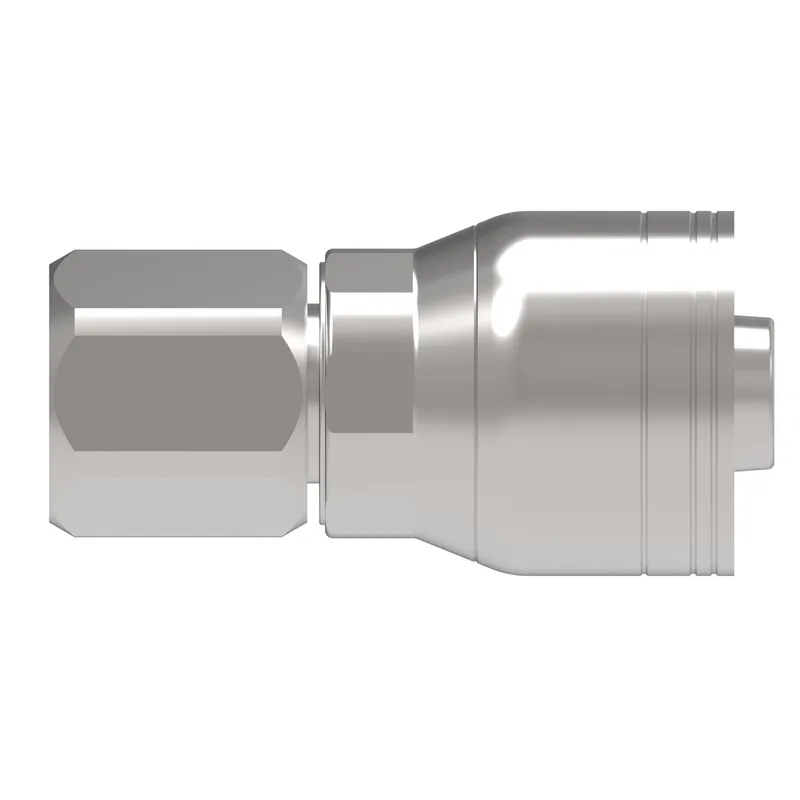

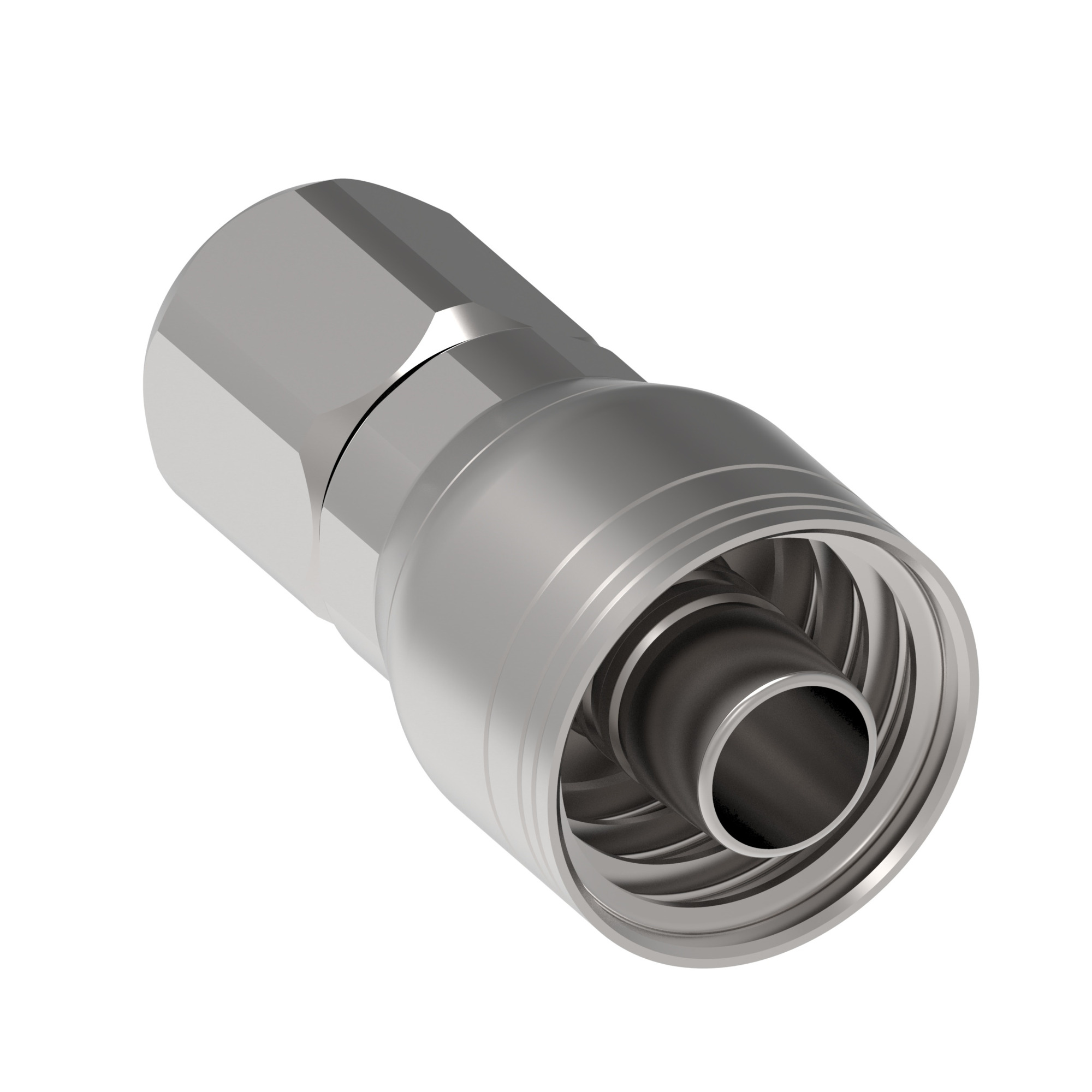

Danfoss 1AA12FJ12C

HOSE FTG, 1A/12, JIC-F/12, AP, STR

MPN: 1AA12FJ12C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12FJ12C?

Danfoss HOSE FTG, 1A/12, JIC-F/12, AP, STR, manufacturer part number 1AA12FJ12C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125507
A dimension IN	2.720
A dimension MM	69.000
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Hex size 1 IN	1.250
Hex size 1 MM	31.750
Hex size 2 MM	28.570
Hose cut off factor IN	1.650
Hose cut off factor MM	41.900
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.563
Product height mm	39.700
Product length in	2.840
Product length mm	72.136
Product material	316 Stainless steel
Product width in	1.563
Product width mm	39.7
Series	1A/Z Series
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA12FJ12C: frequently asked questions

When can 1AA12FJ12C be shipped?

1AA12FJ12C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA12FJ12C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA12FJ12C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA12FJ12C, subject to availability and destination.
