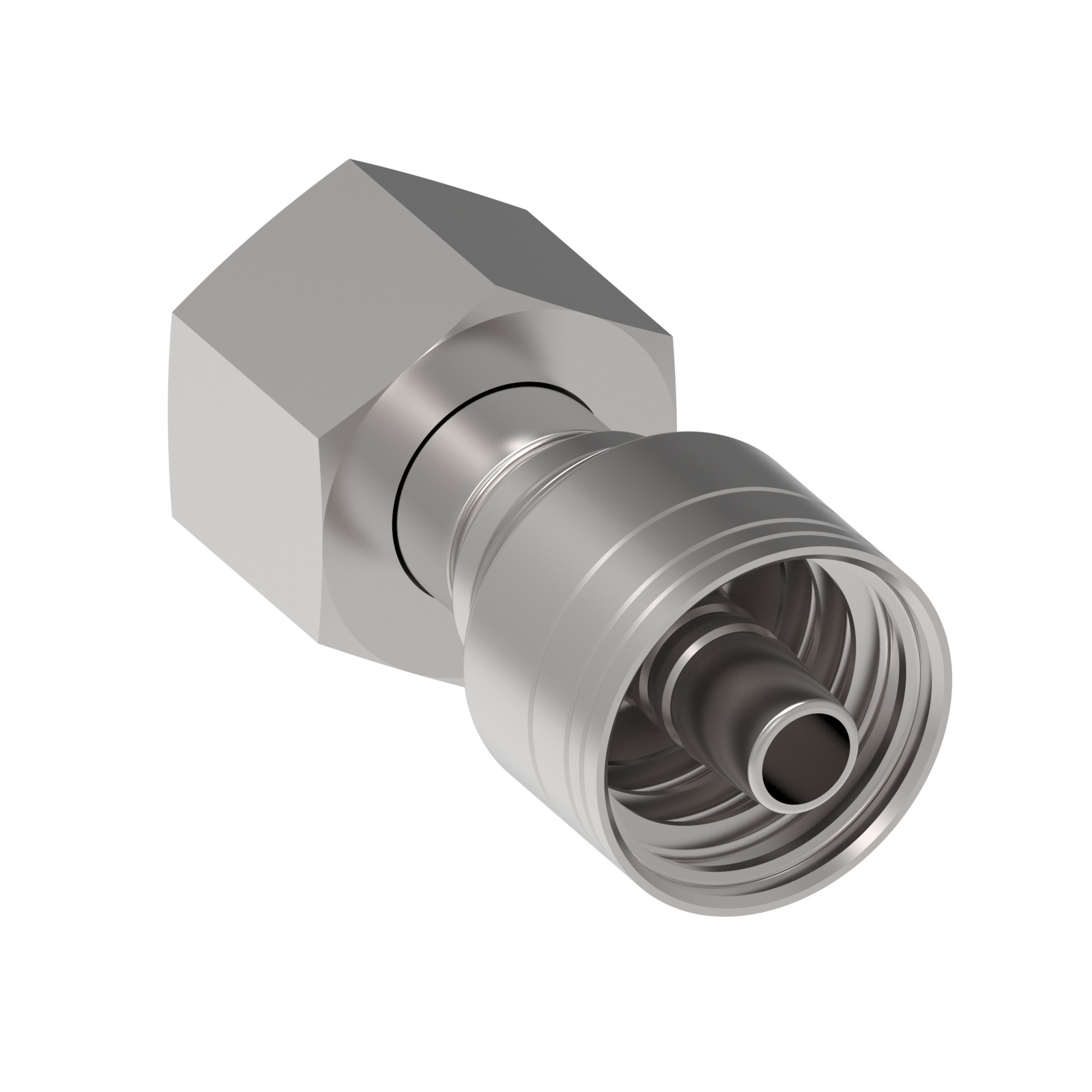

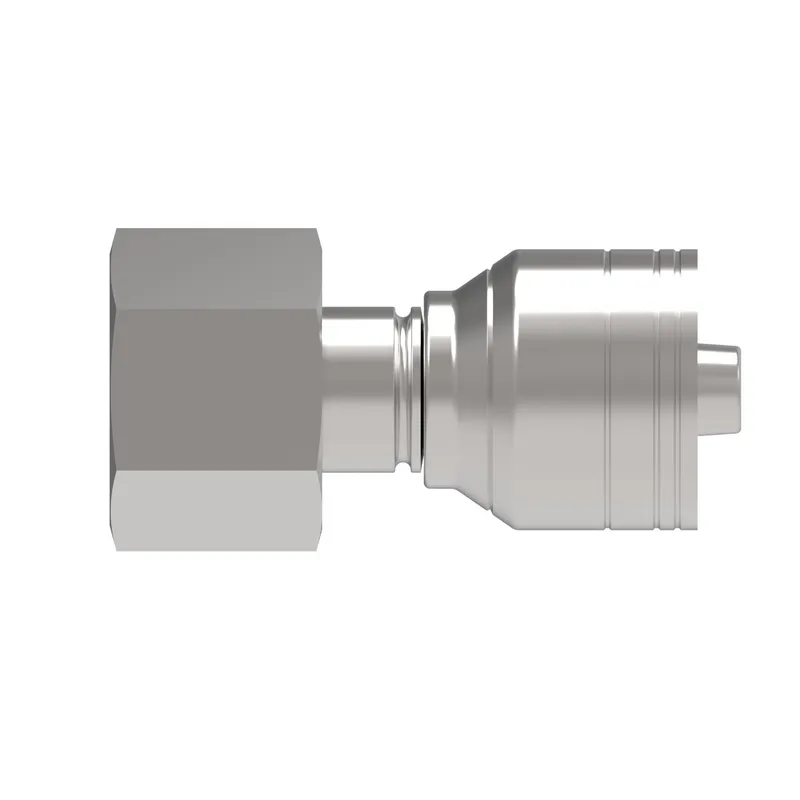

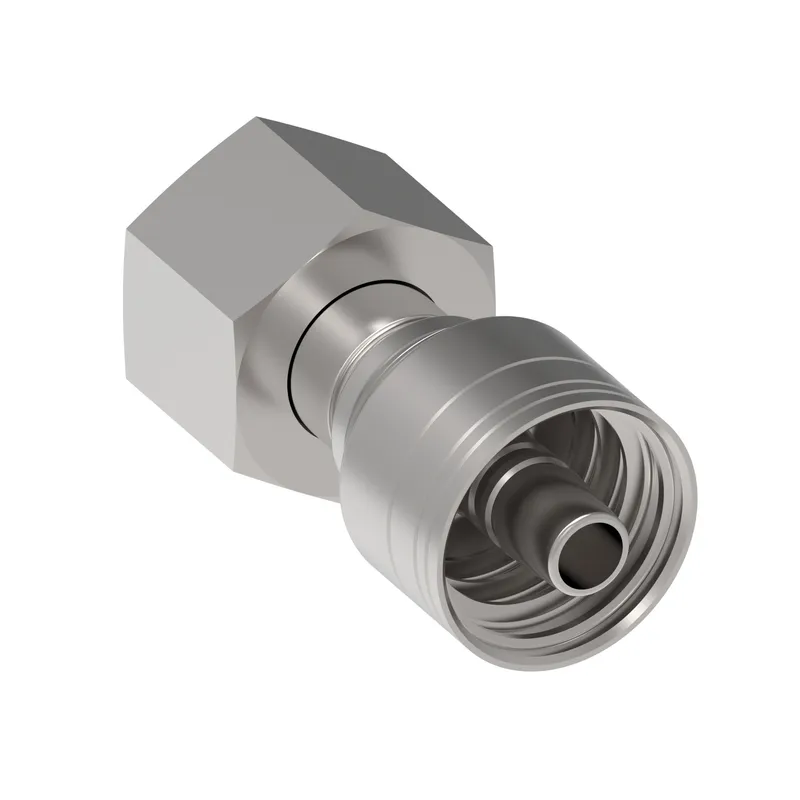

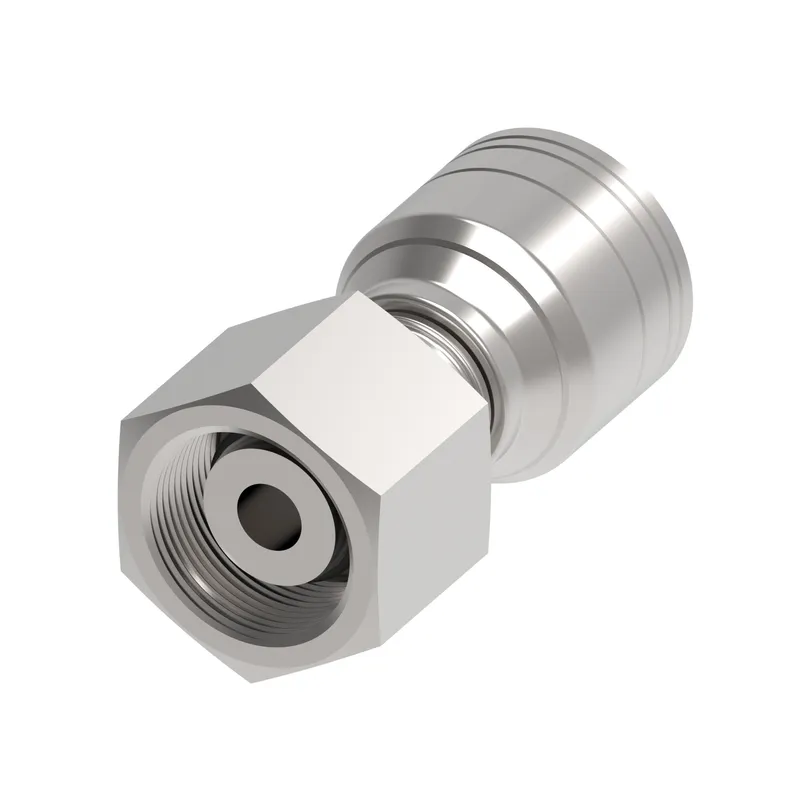

Danfoss 1AA12DS8C

HOSE FTG, 1A/08, DKOH-B/12, AP, STR

MPN: 1AA12DS8C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12DS8C?

Danfoss HOSE FTG, 1A/08, DKOH-B/12, AP, STR, manufacturer part number 1AA12DS8C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125460
A dimension IN	2.290
A dimension MM	58.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
End connection torque	65-70 lb-ft(88-95 Nm)
End size 1	-12
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.188
Hex size 1 MM	30.160
Hose cut off factor IN	1.290
Hose cut off factor MM	32.700
Hose size	-8
Inside diameter IN	0.380
Inside diameter MM	9.600
Product height in	1.360
Product height mm	34.544
Product length in	2.570
Product length mm	62.278
Product material	316 Stainless steel
Product width in	1.220
Product width mm	30.988
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M24x1.5
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
