Danfoss 1AA12FJA12

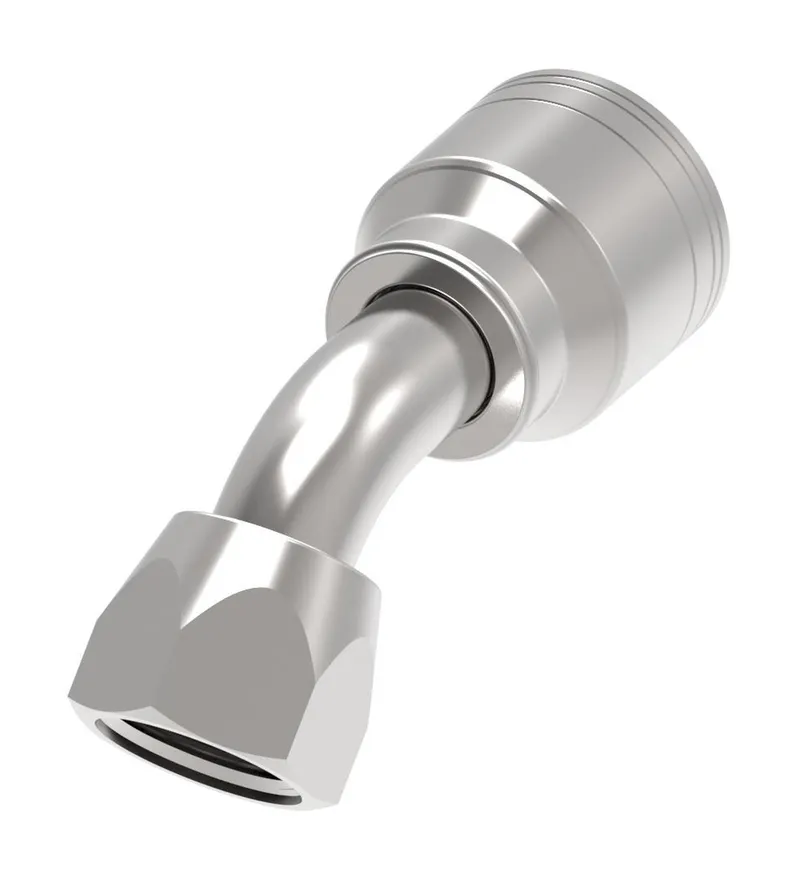

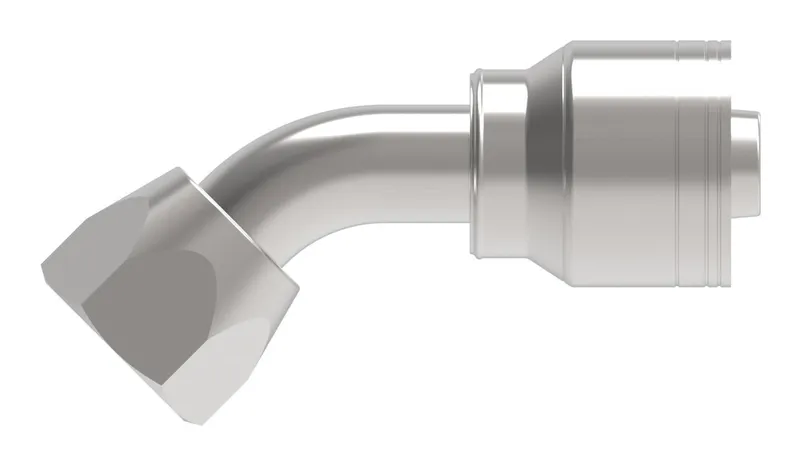

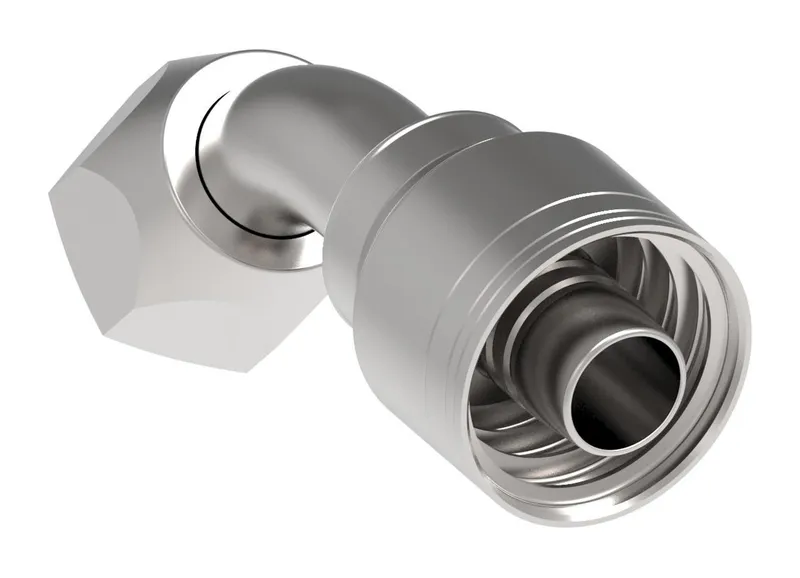

HOSE FTG, 1A/12, JIC-F/12, CS, 45D

MPN: 1AA12FJA12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA12FJA12?

Danfoss HOSE FTG, 1A/12, JIC-F/12, CS, 45D, manufacturer part number 1AA12FJA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146125545
A dimension IN	3.490
A dimension MM	88.600
Angle shape	45 Degree
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	0.780
Drop dimension MM	19.80
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Female 37 degree swivel
Finish plating	Protective oil
Hose cut off factor IN	2.240
Hose cut off factor MM	56.900
Hose size	-12
Inside diameter IN	0.580
Inside diameter MM	14.800
Product height in	2.760
Product height mm	70.104
Product length in	4.630
Product length mm	117.602
Product material	Carbon steel
Product width in	1.563
Product width mm	39.7
Series	1A/Z Series
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330
Working pressure max PSI	4800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
