Danfoss 1AA8FJB6

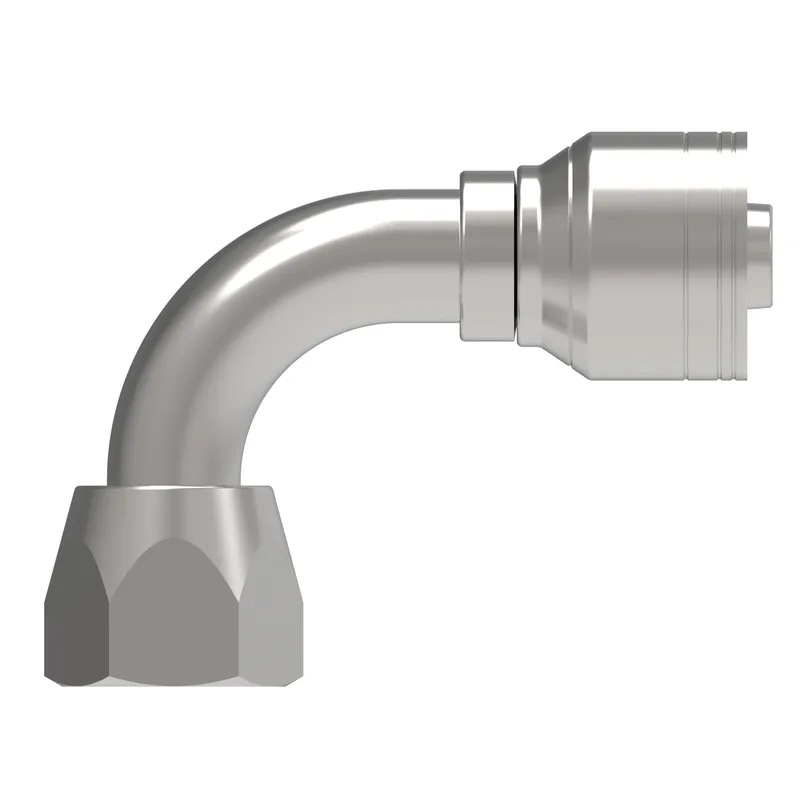

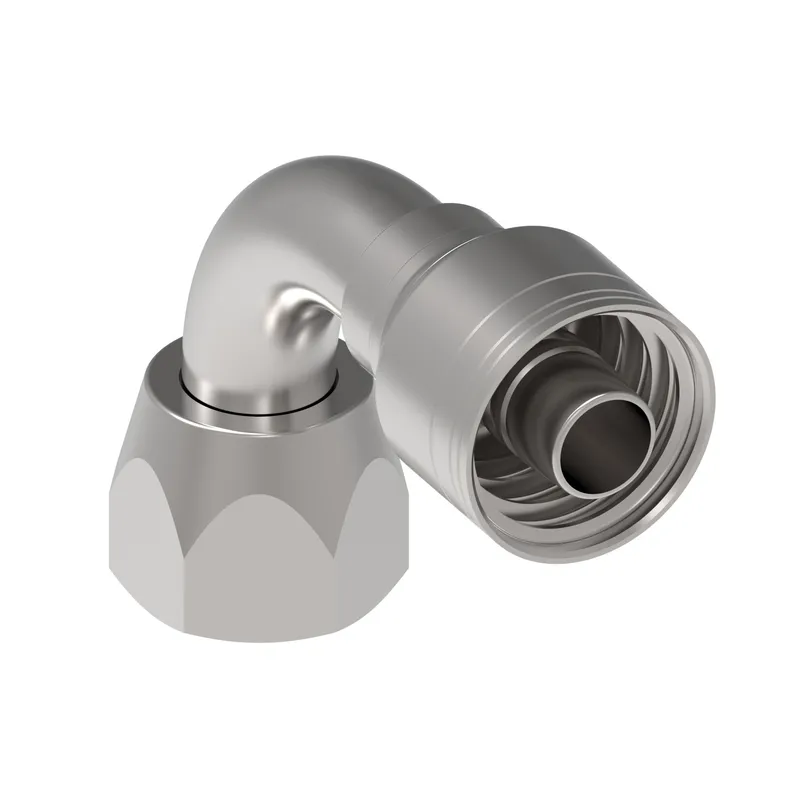

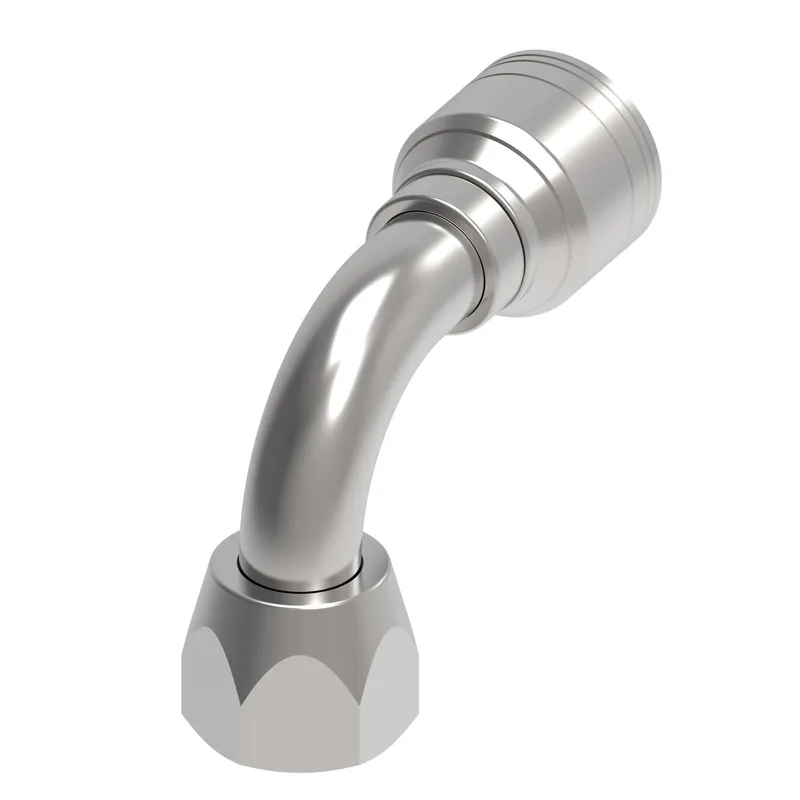

HOSE FTG, 1A/06, JIC-F/08, CS, 90D

MPN: 1AA8FJB6
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8FJB6?

Danfoss HOSE FTG, 1A/06, JIC-F/08, CS, 90D, manufacturer part number 1AA8FJB6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127709
A dimension IN	2.260
A dimension MM	57.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
Drop dimension IN	1.090
Drop dimension MM	27.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.420
Hose cut off factor MM	36.100
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	2.070
Product height mm	52.578
Product length in	2.850
Product length mm	72.390
Product material	Carbon steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	3/4-16 UNF
Working pressure max BAR	360
Working pressure max PSI	5300
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
