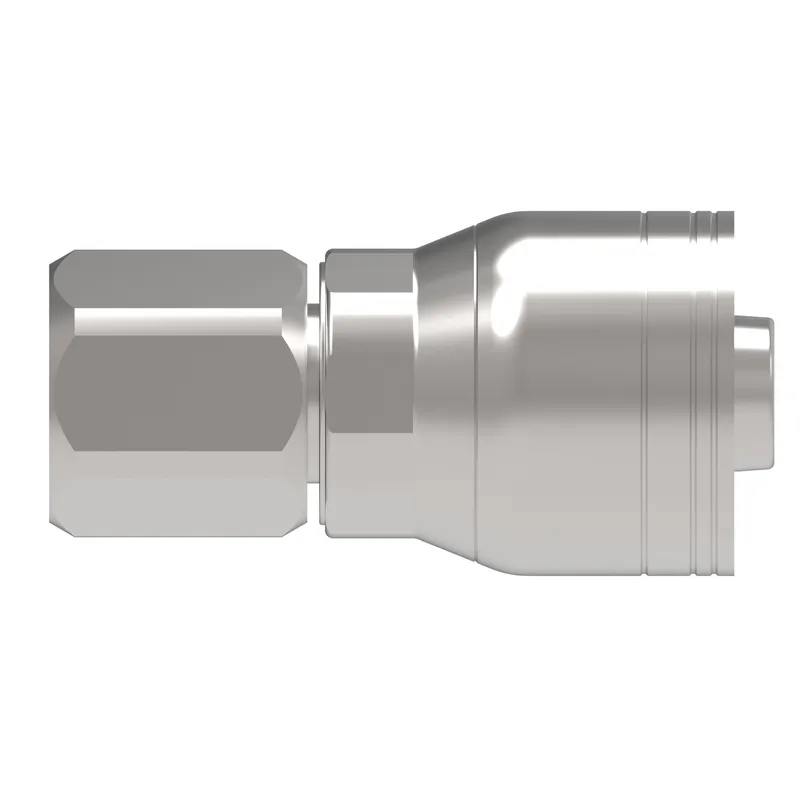

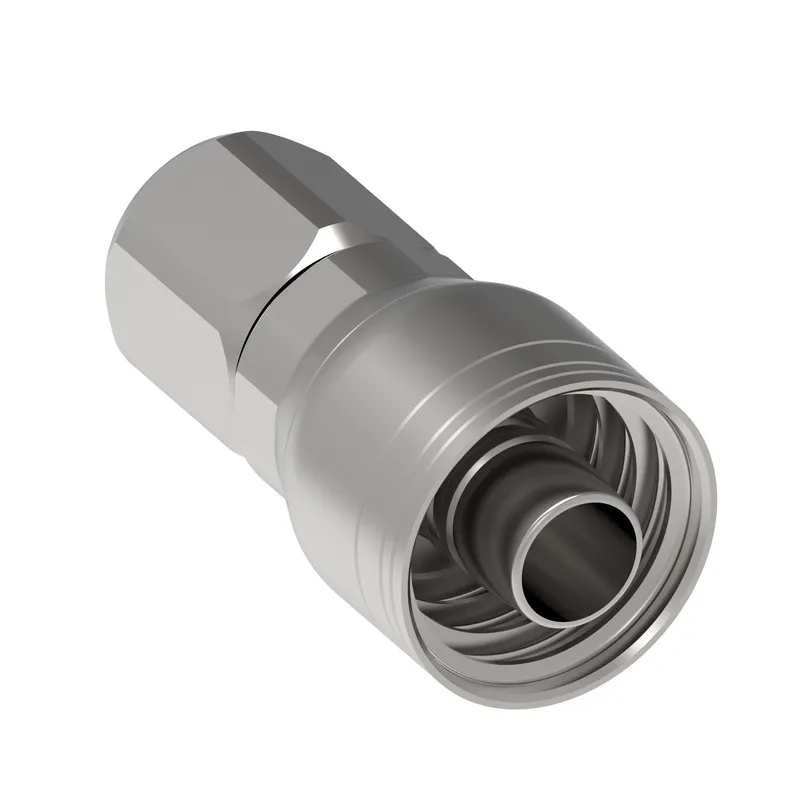

Danfoss 1AA8FJ6C

HOSE FTG, 1A/06, JIC-F/08, AP, STR

MPN: 1AA8FJ6C
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8FJ6C?

Danfoss HOSE FTG, 1A/06, JIC-F/08, AP, STR, manufacturer part number 1AA8FJ6C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146127655
A dimension IN	2.150
A dimension MM	54.600
Angle shape	Straight
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Hex size 2 MM	17.000
Hose cut off factor IN	1.310
Hose cut off factor MM	33.300
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.070
Product height mm	27.178
Product length in	2.290
Product length mm	58.166
Product material	316 Stainless steel
Product width in	1.070
Product width mm	27.178
Series	1A/Z Series
Thread size 1	3/4-16 UNF
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
