Danfoss 1AA8FJC8

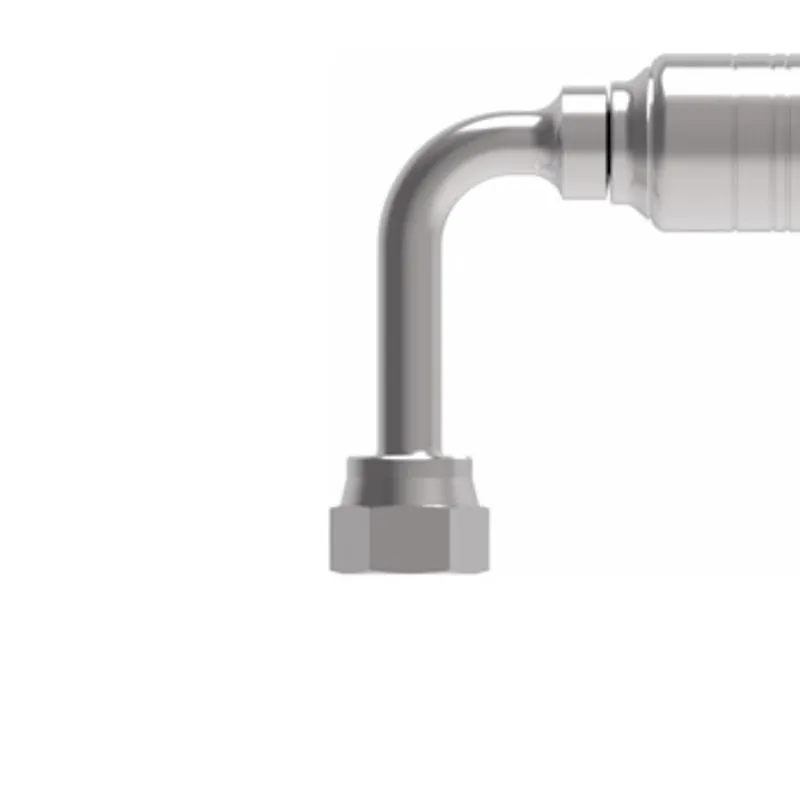

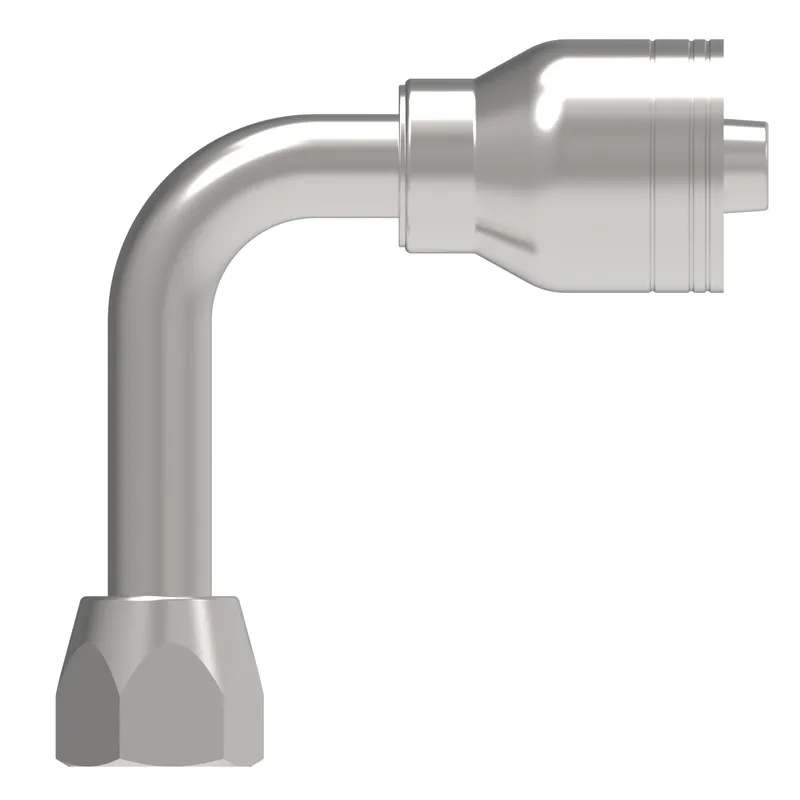

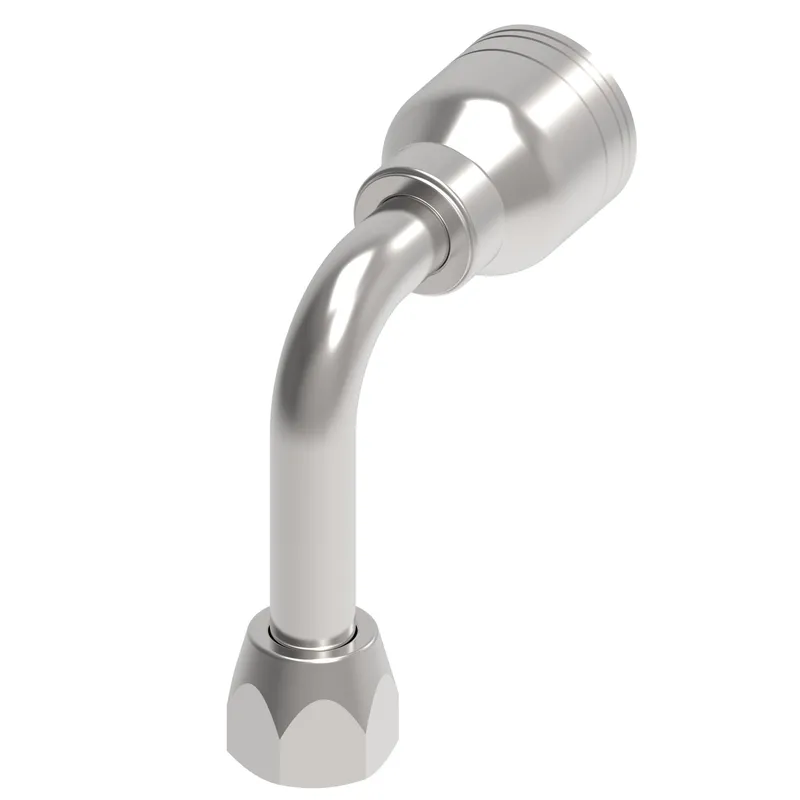

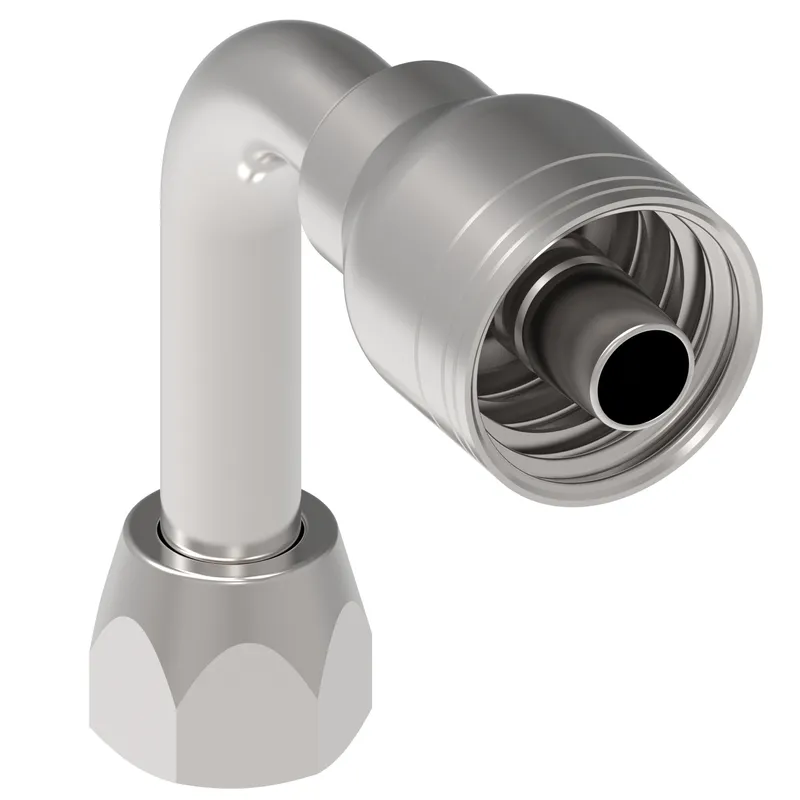

HOSE FTG, 1A/08, JIC-F/08, CS, 90D

MPN: 1AA8FJC8
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA8FJC8?

Danfoss HOSE FTG, 1A/08, JIC-F/08, CS, 90D, manufacturer part number 1AA8FJC8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146045140
A dimension IN	2.710
A dimension MM	68.900
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	2.430
Drop dimension MM	61.70
End connection torque	38-42 lb-ft(52-58 Nm)
End size 1	-8
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	1.540
Hose cut off factor MM	39.200
Hose size	-8
Inside diameter IN	0.370
Inside diameter MM	9.400
Product height in	3.490
Product height mm	88.646
Product length in	3.570
Product length mm	90.678
Product material	Carbon steel
Product width in	1.220
Product width mm	30.988
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread size 1	3/4-16 UNF
Working pressure max BAR	360.00
Working pressure max PSI	5300.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA8FJC8: frequently asked questions

When can 1AA8FJC8 be shipped?

1AA8FJC8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA8FJC8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA8FJC8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA8FJC8, subject to availability and destination.
