Braided hose and fittings Parts

Danfoss

20291Y-36-16Z

HOSE NIPPLE ASSY,1P/16,MORFS-F/36,CS,90D

Danfoss

20291Y-36-12TZ

HOSE NIPPLE ASSY,1P/12,MORFS-F/36,CS,90D

Danfoss

20291Y-30-12Z

HOSE NIPPLE ASSY,1P/12,MORFS-F/30,CS,90D

Danfoss

20291Y-30-10TZ

HOSE NIPPLE ASSY,1P/10,MORFS-F/30,CS,90D

Danfoss

20291Y-30-08TZ

HOSE NIPPLE ASSY,1P/08,MORFS-F/30,CS,90D

Danfoss

20291Y-27-10TZ

HOSE NIPPLE ASSY,1P/10,MORFS-F/27,CS,90D

Danfoss

20291Y-22-08Z

HOSE NIPPLE ASSY,1P/08,MORFS-F/22,CS,90D

Danfoss

20291Y-22-06TZ

HOSE NIPPLE ASSY,1P/06,MORFS-F/22,CS,90D

Danfoss

20291Y-18-06Z

HOSE NIPPLE ASSY,1P/06,MORFS-F/18,CS,90D

Danfoss

20291Y-16-05Z

HOSE NIPPLE ASSY,1P/05,MORFS-F/16,CS,90D

Danfoss

20291Y-14-04Z

HOSE NIPPLE ASSY,1P/04,MORFS-F/14,CS,90D

Danfoss

20291-52-24TZ

HOSE NIPPLE ASSY,2P/24,MORFS-F/52,CS,90D

Danfoss

20291-45-20TZ

HOSE NIPPLE ASSY,2P/20,MORFS-F/45,CS,90D

Danfoss

20291-42-20WZ

HOSE NIPPLE ASSY,2P/20,MORFS-F/42,CS,90D

Danfoss

20291-42-16TZ

HOSE NIPPLE ASSY,2P/16,MORFS-F/42,CS,90D

Danfoss

20291-39-16TZ

HOSE NIPPLE ASSY,2P/16,MORFS-F/39,CS,90D

Danfoss

20291-36-16Z

HOSE NIPPLE ASSY,2P/16,MORFS-F/36,CS,90D

Danfoss

20291-30-12Z

HOSE NIPPLE ASSY,2P/12,MORFS-F/36,CS,90D

Danfoss

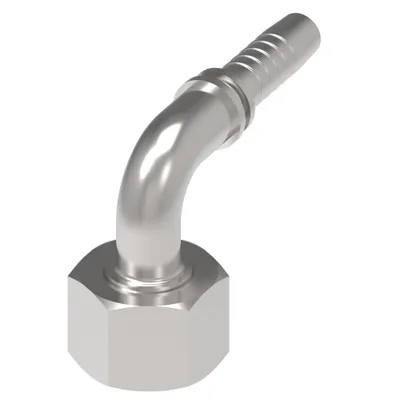

20291-30-10TZ

HOSE NIPPLE ASSY,2P/10,MORFS-F/30,CS,90D

Danfoss

20291-30-08TZ

HOSE NIPPLE ASSY,2P/08,MORFS-F/30,CS,90D

Danfoss

20291-27-10TZ

HOSE NIPPLE ASSY,2P/10,MORFS-F/27,CS,90D

Danfoss

20291-22-08Z

HOSE NIPPLE ASSY,2P/08,MORFS-F/22,CS,90D

Danfoss

20291-20-08Z

HOSE NIPPLE, 2P/08, MORFS-F/20, CS, 90D

Danfoss

20291-18-06Z

HOSE NIPPLE, 2P/06, MORFS-F/18, CS, 90D

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product height in	Product height mm	Product length in	Product length mm	Product width mm
20291Y-36-16Z	3.670	93.218	5.510	139.954	47.244
20291Y-36-12TZ	3.946	100.228	4.900	124.460	39.497
20291Y-30-12Z	3.986	101.244	4.800	121.920	39.497
20291Y-30-10TZ	3.417	86.792	4.250	107.950	35.585
20291Y-30-08TZ	3.145	79.883	3.560	90.424	30.785
20291Y-27-10TZ	2.441	62.000	4.035	102.500	32
20291Y-22-08Z	3.027	76.886	3.380	85.852	30.785
20291Y-22-06TZ	2.594	65.888	3.100	78.740	27.28
20291Y-18-06Z	2.633	66.878	3.040	77.216	27.28
20291Y-16-05Z	2.417	61.392	2.830	71.882	24.79
20291Y-14-04Z	2.161	54.889	2.670	67.818	22.784
20291-52-24TZ	5.670	144.018	7.960	202.184	59.944
20291-45-20TZ	4.429	112.500	6.811	173.000	55
20291-42-20WZ	4.900	124.460	6.690	169.926	49.987
20291-42-16TZ	4.270	108.458	5.900	149.986	49.784
20291-39-16TZ	4.173	105.994	6.050	153.670	45.999
20291-36-16Z	4.130	104.902	5.670	144.018	40.996
20291-30-12Z	3.680	93.472	4.800	121.920	36.068
20291-30-10TZ	3.090	78.486	4.250	107.950	36.068
20291-30-08TZ	2.900	73.660	3.560	90.424	36.068
20291-27-10TZ	3.070	77.978	4.170	105.918	32.004
20291-22-08Z	2.740	69.596	3.380	85.852	26.924
20291-20-08Z	2.700	68.580	3.380	85.852	26.924
20291-18-06Z	2.390	60.706	3.040	77.216	23.876

Common to all listed parts

Angle shape	90 Degree
Construction Style	Crimp
Finish plating	Zinc plating
Product material	Carbon steel
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
