Danfoss 20291-36-16Z

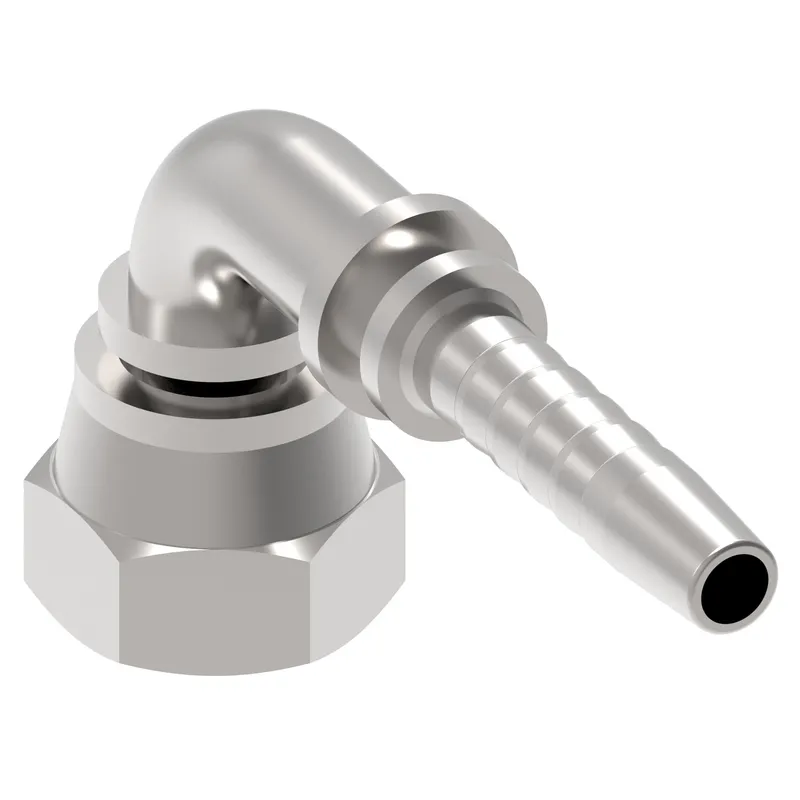

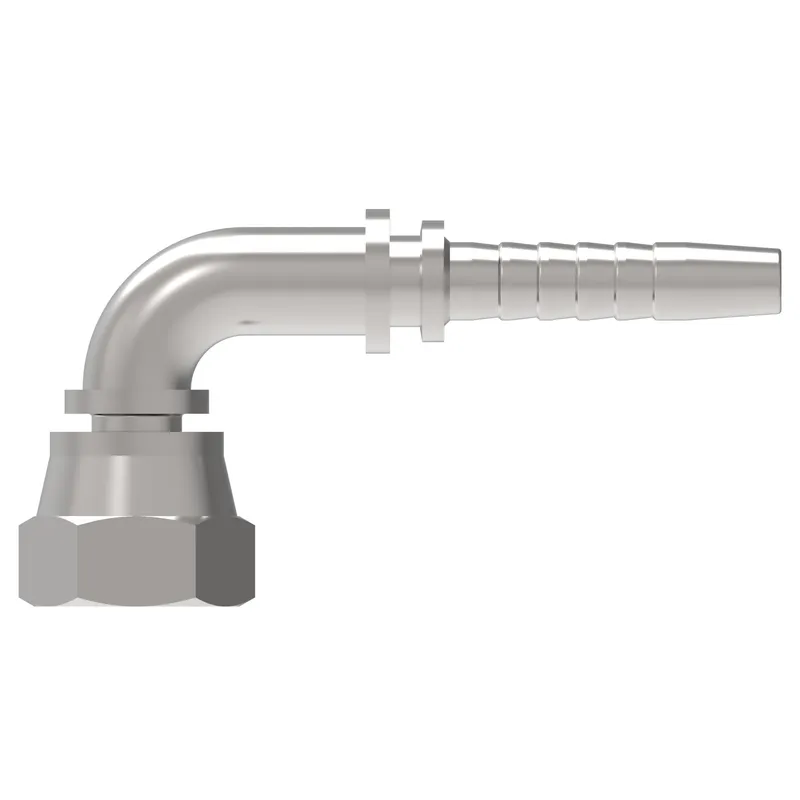

HOSE NIPPLE ASSY,2P/16,MORFS-F/36,CS,90D

MPN: 20291-36-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291-36-16Z?

Danfoss HOSE NIPPLE ASSY,2P/16,MORFS-F/36,CS,90D, manufacturer part number 20291-36-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.870
A dimension MM	123.700
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	2.755
Drop dimension MM	70.00
End size 2	-16
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.610
Hex size 1 MM	40.894
Hex size 2 IN	1.614
Hex size 2 MM	41.000
Hose cut off factor IN	3.019
Hose cut off factor MM	76.700
Hose size	-16
Inside diameter IN	0.826
Inside diameter MM	21.000
Product height in	4.130
Product height mm	104.902
Product length in	5.670
Product length mm	144.018
Product material	Carbon steel
Product width in	1.614
Product width mm	40.996
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
