Danfoss 20291Y-36-16Z

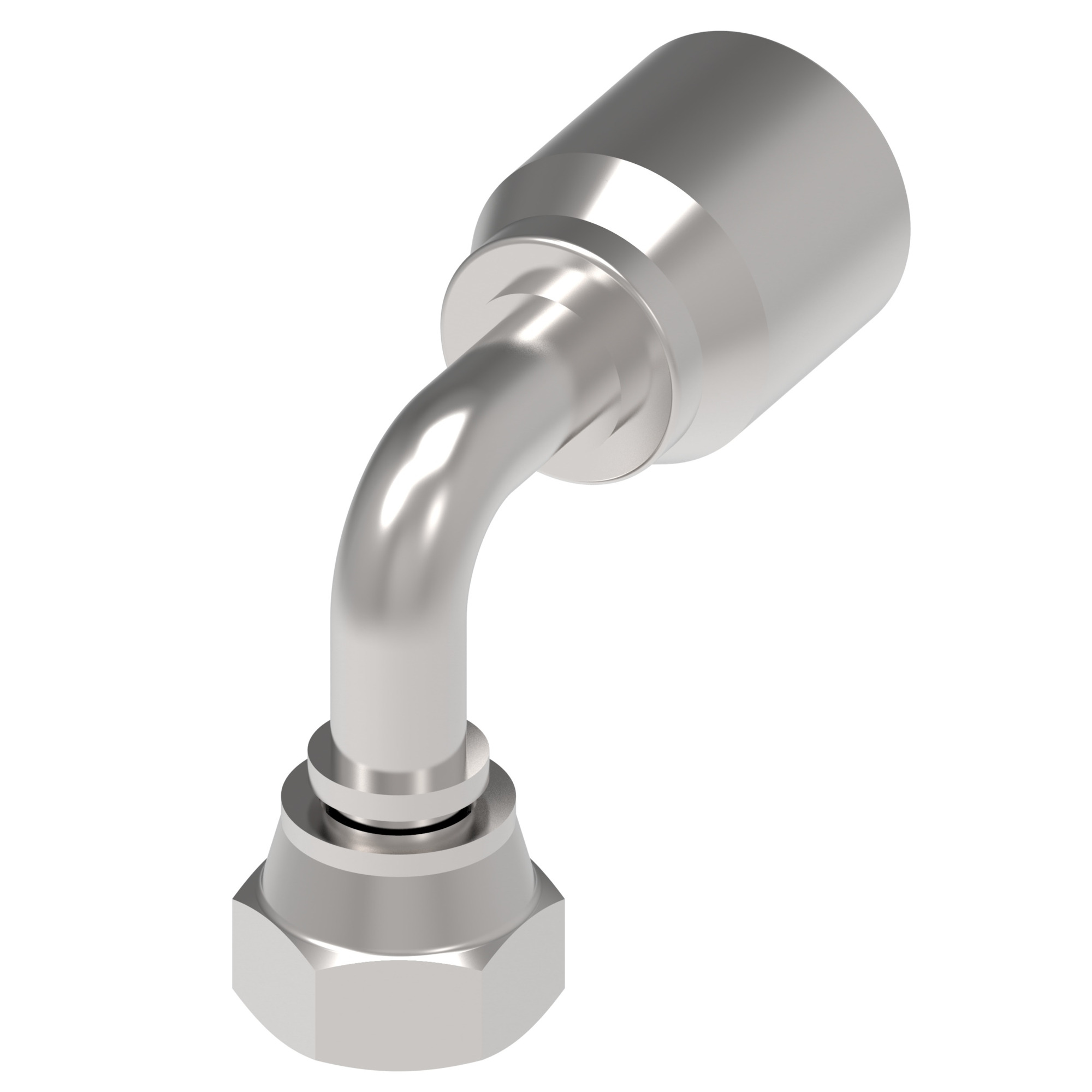

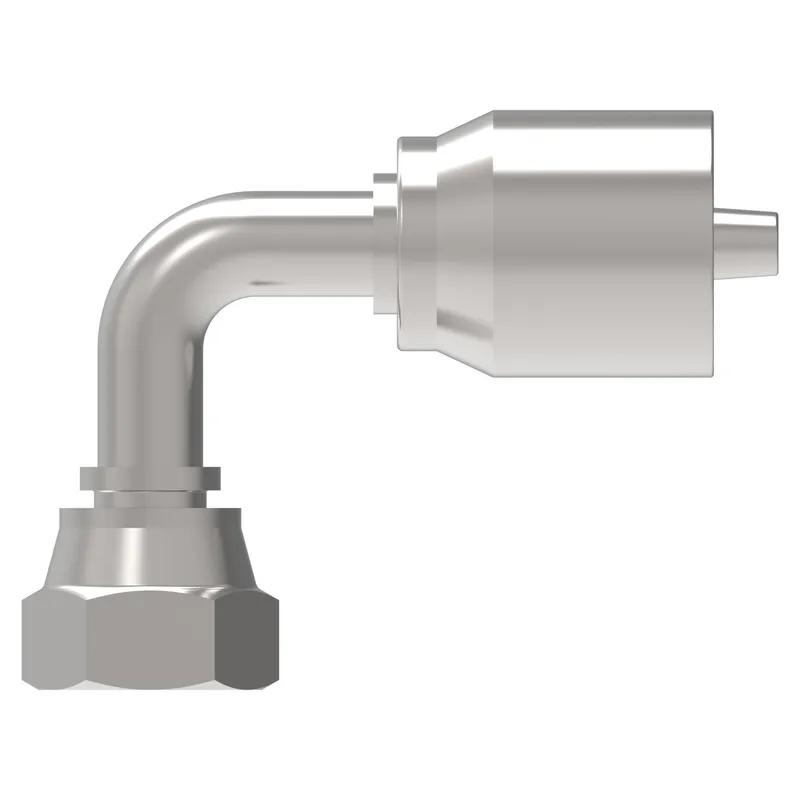

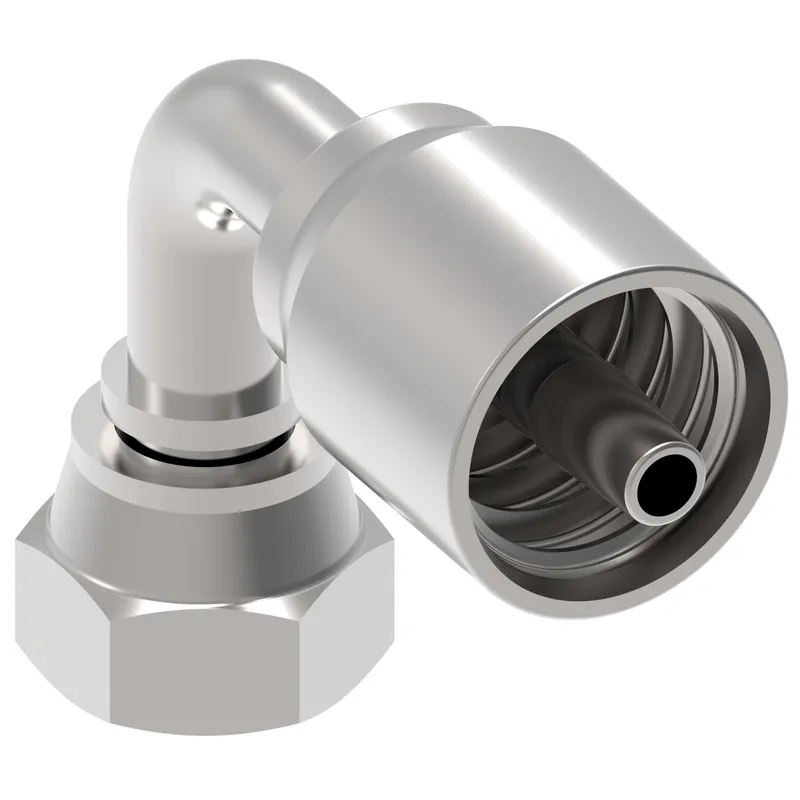

HOSE NIPPLE ASSY,1P/16,MORFS-F/36,CS,90D

MPN: 20291Y-36-16Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291Y-36-16Z?

Danfoss HOSE NIPPLE ASSY,1P/16,MORFS-F/36,CS,90D, manufacturer part number 20291Y-36-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.870
A dimension MM	123.700
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	2.755
Drop dimension MM	70.00
Finish plating	Zinc plating
Hex size 1 IN	1.610
Hex size 1 MM	40.894
Hose cut off factor IN	3.019
Hose cut off factor MM	76.700
Hose size	-16
Inside diameter IN	0.826
Inside diameter MM	21.000
Product height in	3.670
Product height mm	93.218
Product length in	5.510
Product length mm	139.954
Product material	Carbon steel
Product width in	1.860
Product width mm	47.244
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
