Danfoss 20291-22-08Z

HOSE NIPPLE ASSY,2P/08,MORFS-F/22,CS,90D

MPN: 20291-22-08Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291-22-08Z?

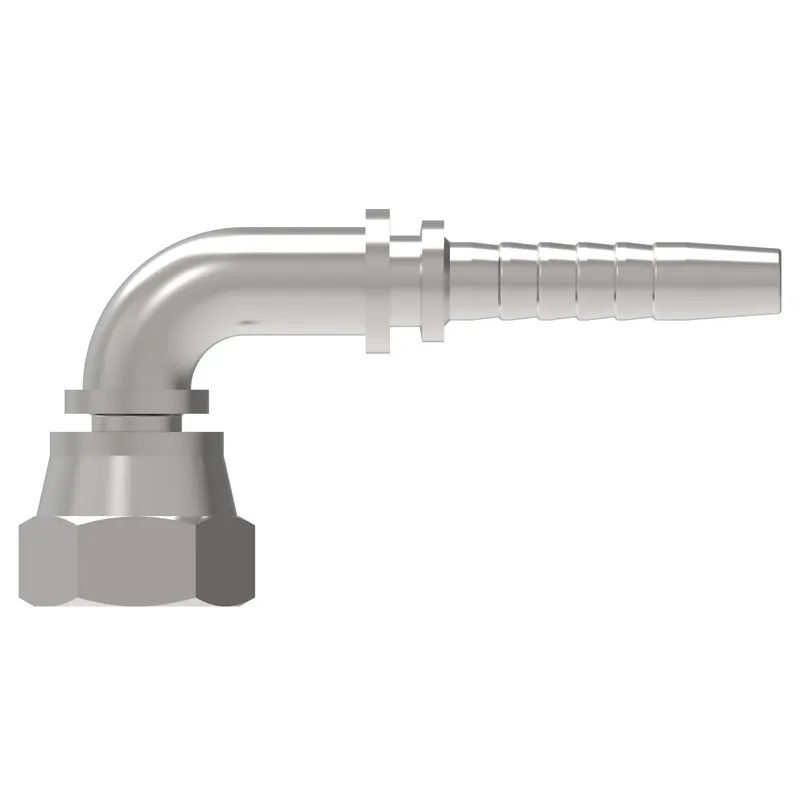

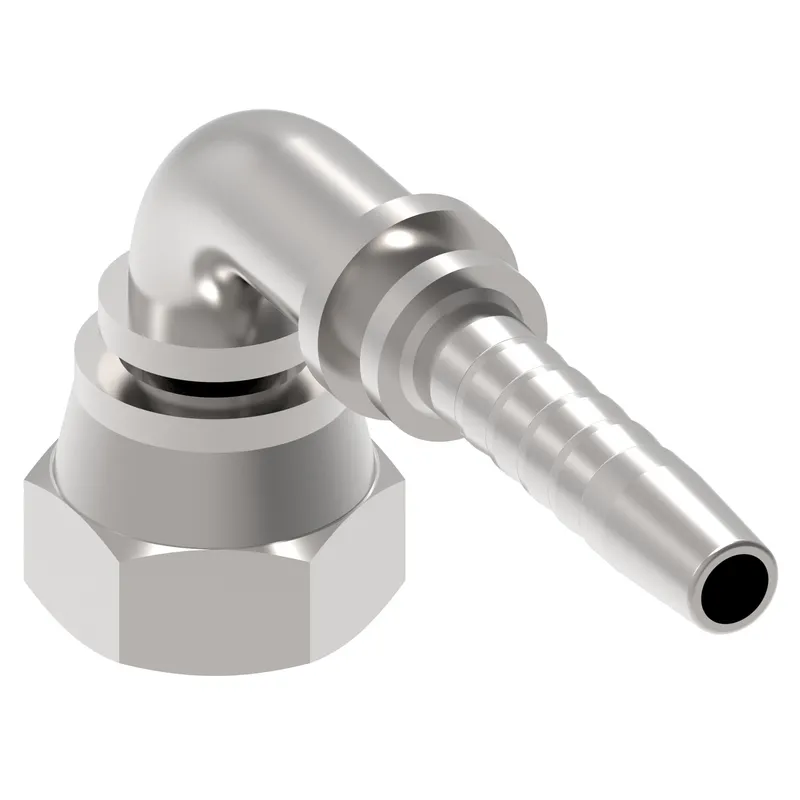

Danfoss HOSE NIPPLE ASSY,2P/08,MORFS-F/22,CS,90D, manufacturer part number 20291-22-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.854
A dimension MM	72.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.889
Drop dimension MM	48.00
End size 2	-8
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	1.614
Hose cut off factor MM	41.000
Hose size	-8
Inside diameter IN	0.393
Inside diameter MM	10.000
Product height in	2.740
Product height mm	69.596
Product length in	3.380
Product length mm	85.852
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M22x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
