Danfoss 20291-27-10TZ

HOSE NIPPLE ASSY,2P/10,MORFS-F/27,CS,90D

MPN: 20291-27-10TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

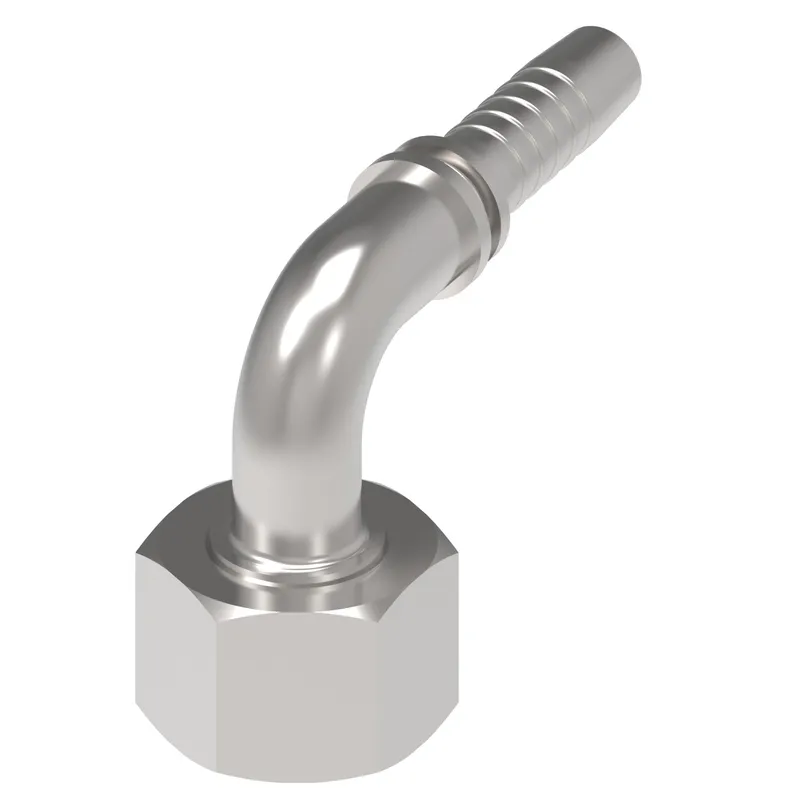

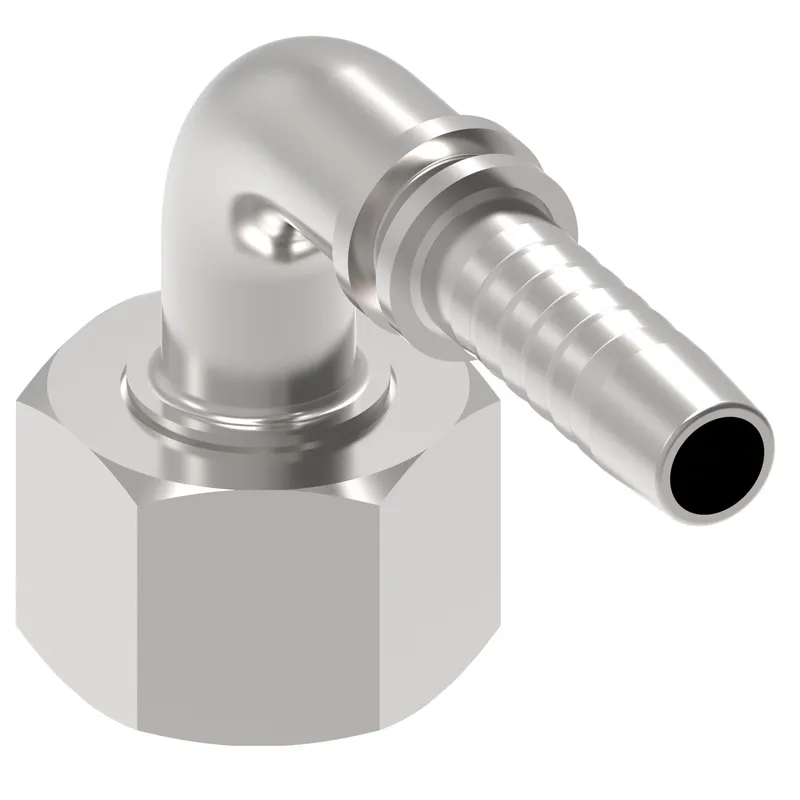

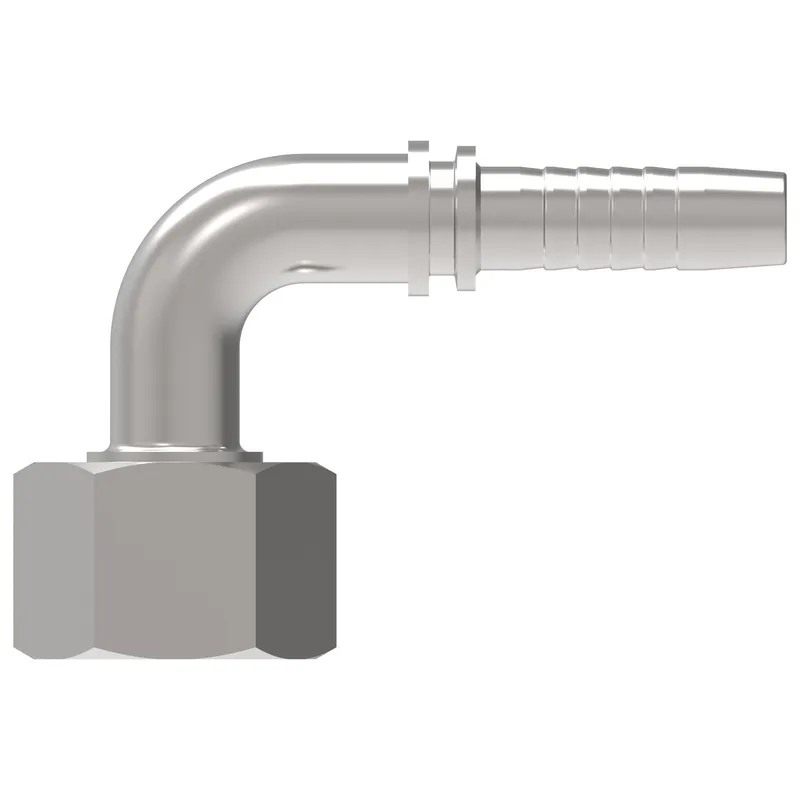

What is the Danfoss 20291-27-10TZ?

Danfoss HOSE NIPPLE ASSY,2P/10,MORFS-F/27,CS,90D, manufacturer part number 20291-27-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.543
A dimension MM	90.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	2.007
Drop dimension MM	51.00
End size 2	-6
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.260
Hex size 1 MM	32.004
Hex size 2 IN	1.260
Hex size 2 MM	32.000
Hose cut off factor IN	2.204
Hose cut off factor MM	56.000
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	3.070
Product height mm	77.978
Product length in	4.170
Product length mm	105.918
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M27x1.5
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20291-27-10TZ: frequently asked questions

When can 20291-27-10TZ be shipped?

20291-27-10TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20291-27-10TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20291-27-10TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20291-27-10TZ, subject to availability and destination.
