Danfoss 20291-42-16TZ

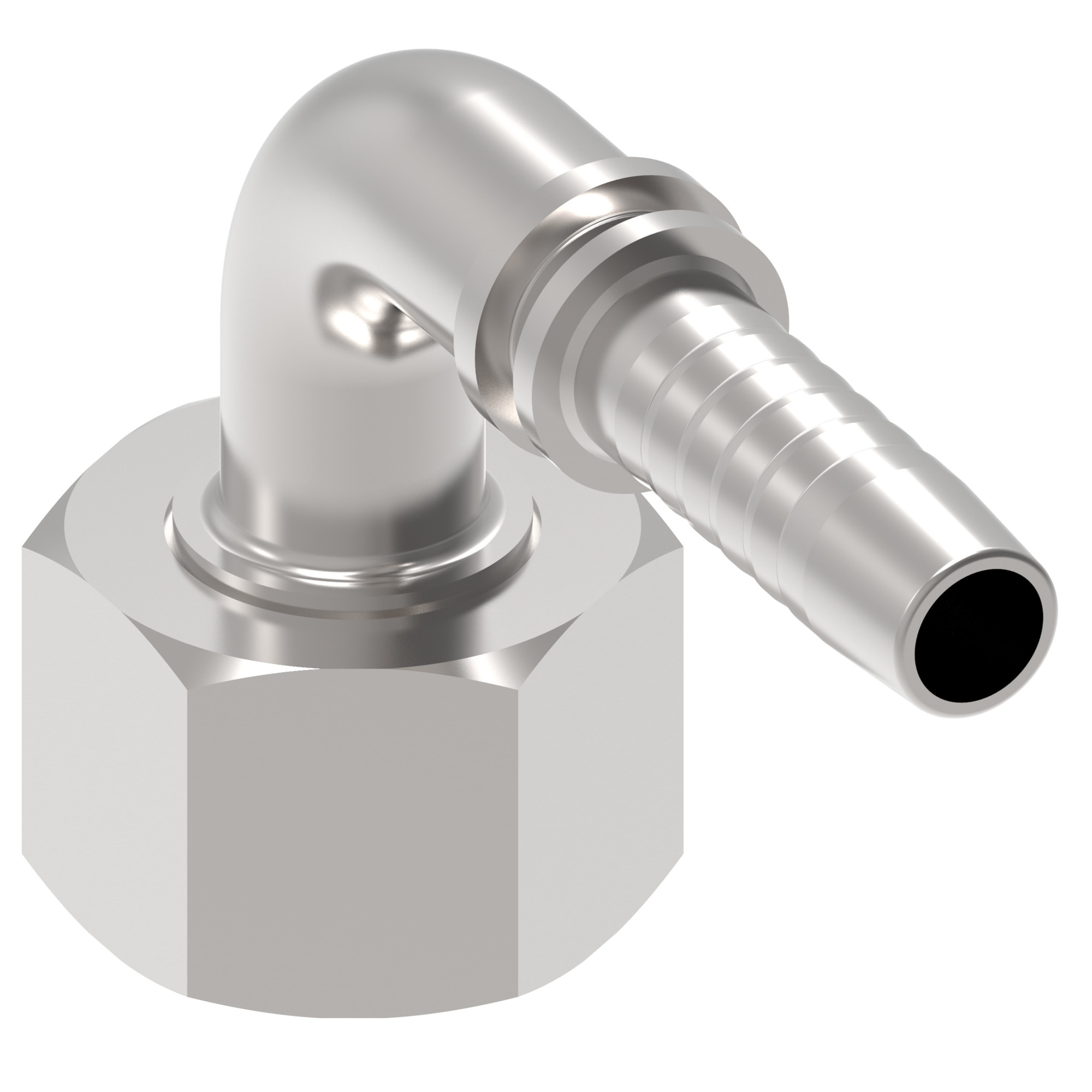

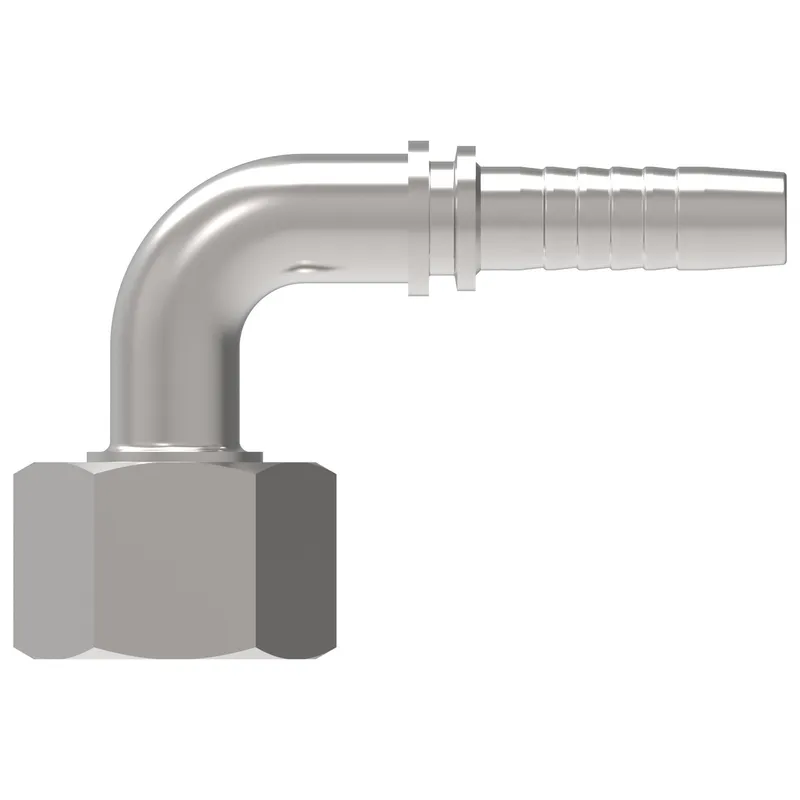

HOSE NIPPLE ASSY,2P/16,MORFS-F/42,CS,90D

MPN: 20291-42-16TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20291-42-16TZ?

Danfoss HOSE NIPPLE ASSY,2P/16,MORFS-F/42,CS,90D, manufacturer part number 20291-42-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.921
A dimension MM	125.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
Drop dimension IN	2.657
Drop dimension MM	67.50
End size 2	-16
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.970
Hex size 1 MM	50.038
Hex size 2 IN	1.969
Hex size 2 MM	50.000
Hose cut off factor IN	1.533
Hose cut off factor MM	78.000
Hose size	-16
Inside diameter IN	0.826
Inside diameter MM	21.000
Product height in	4.270
Product height mm	108.458
Product length in	5.900
Product length mm	149.986
Product material	Carbon steel
Product width in	1.960
Product width mm	49.784
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
