KL2xxx | Digital output Parts

Showing 25–48 of 64 parts
Beckhoff KL2819 – Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A, with diagnostics
Beckhoff
KL2819

Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A, with diagnostics

Beckhoff KL2828 – Bus Terminal, 8-channel digital output, 24 V DC, 2 A
Beckhoff
KL2828

Bus Terminal, 8-channel digital output, 24 V DC, 2 A

Beckhoff KL2889 – Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching
Beckhoff
KL2889

Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching

Beckhoff KL2808 – Bus Terminal, 8-channel digital output, 24 V DC, 0.5 A
Beckhoff
KL2808

Bus Terminal, 8-channel digital output, 24 V DC, 0.5 A

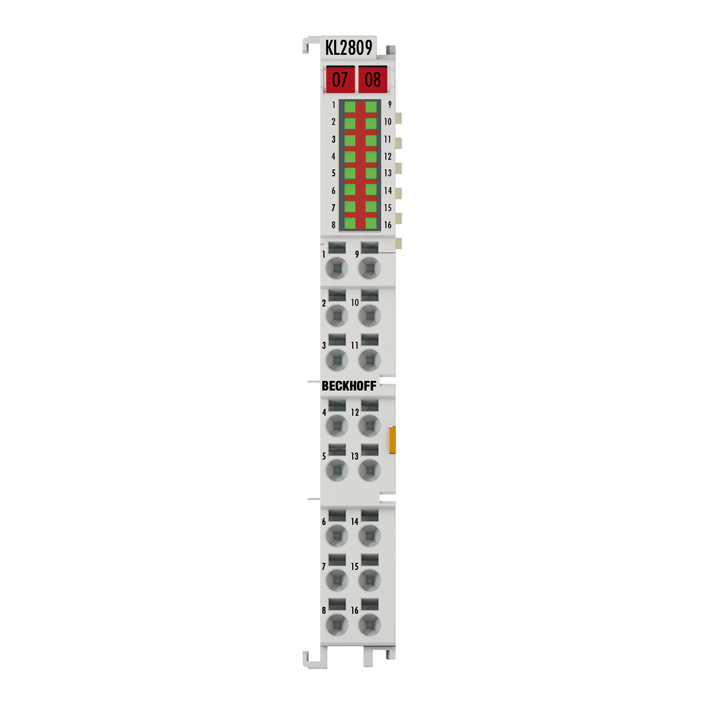

Beckhoff KL2809 – Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A
Beckhoff
KL2809

Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff KL2791 – Bus Terminal, 1-channel motion interface, AC motor, 230 V AC, 0.9 A
Beckhoff
KL2791

Bus Terminal, 1-channel motion interface, AC motor, 230 V AC, 0.9 A

Beckhoff KL2794 – Bus Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free
Beckhoff
KL2794

Bus Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A, potential-free

Beckhoff KL2784 – Bus Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A
Beckhoff
KL2784

Bus Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A

Beckhoff KL2761 – Bus Terminal, 1-channel universal dimmer, 230 V AC, 600 VA
Beckhoff
KL2761

Bus Terminal, 1-channel universal dimmer, 230 V AC, 600 VA

Beckhoff KL2904 – Bus Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE
Beckhoff
KL2904

Bus Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE

Beckhoff KL2622 – Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts
Beckhoff
KL2622

Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

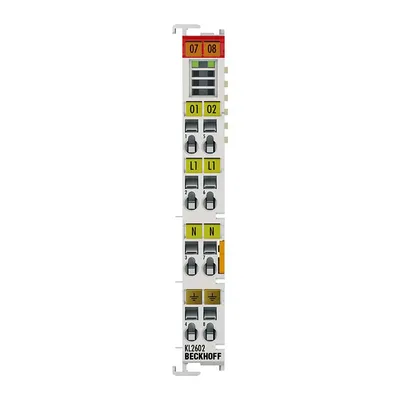

Beckhoff KL2602 – Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A
Beckhoff
KL2602

Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A

Beckhoff KM2042 – Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A, D-sub
Beckhoff
KM2042

Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff KM2774 – Bus Terminal module, 4-channel triac output, 80…230 V AC, 1.5 A
Beckhoff
KM2774

Bus Terminal module, 4-channel triac output, 80…230 V AC, 1.5 A

Beckhoff KM2008 – Bus Terminal module, 64-channel digital output, 24 V DC, 0.5 A
Beckhoff
KM2008

Bus Terminal module, 64-channel digital output, 24 V DC, 0.5 A

Beckhoff KM2004 – Bus Terminal module, 32-channel digital output, 24 V DC, 0.5 A
Beckhoff
KM2004

Bus Terminal module, 32-channel digital output, 24 V DC, 0.5 A

Beckhoff KM2002 – Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A
Beckhoff
KM2002

Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A

Beckhoff KL2722 – Bus Terminal, 2-channel triac output, 12...230 V AC, 1 A
Beckhoff
KL2722

Bus Terminal, 2-channel triac output, 12...230 V AC, 1 A

Beckhoff KL2712 – Bus Terminal, 2-channel triac output, 12...230 V AC, 0.5 A
Beckhoff
KL2712

Bus Terminal, 2-channel triac output, 12...230 V AC, 0.5 A

Beckhoff KL2022 – Bus Terminal, 2-channel digital output, 24 V DC, 2 A
Beckhoff
KL2022

Bus Terminal, 2-channel digital output, 24 V DC, 2 A

Beckhoff KL2012 – Bus Terminal, 2-channel digital output, 24 V DC, 0.5 A
Beckhoff
KL2012

Bus Terminal, 2-channel digital output, 24 V DC, 0.5 A

Beckhoff KL2512 – Bus Terminal, 2-channel PWM output, 24 V DC, 1.5 A, ground switching
Beckhoff
KL2512

Bus Terminal, 2-channel PWM output, 24 V DC, 1.5 A, ground switching

Beckhoff KL2502 – Bus Terminal, 2-channel PWM output, 24 V DC, 0.1 A
Beckhoff
KL2502

Bus Terminal, 2-channel PWM output, 24 V DC, 0.1 A

Beckhoff KL2424 – Bus Terminal, 4-channel digital output, 24 V DC, 2 A
Beckhoff
KL2424

Bus Terminal, 4-channel digital output, 24 V DC, 2 A

Compare KL2xxx | Digital output

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNNumber of outputsCurrent consumption power contactsCurrent consumption K-busApprovals/markingsDimensions (W x H x D)
KL281916typ. 50 mA + loadtyp. 80 mACE12 mm x 100 mm x 68 mm
KL28288typ. 15 mA + loadtyp. 18 mACE, UL12 mm x 100 mm x 68 mm
KL288916typ. 35 mA + loadtyp. 45 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL28088typ. 15 mA + loadtyp. 20 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL280916typ. 35 mA + loadtyp. 35 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL27911 motorload onlytyp. 95 mACE12 mm x 100 mm x 68 mm
KL27944 x make contacts—80 mACE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm
KL27844 x make contacts—80 mACE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm
KL27611load onlytyp. 95 mACE12 mm x 100 mm x 68 mm
KL29044load-dependent250 mA—24 mm x 100 mm x 68 mm
KL26222 x make contacts–typ. 85 mACE, UL, DNV12 mm x 100 mm x 68 mm
KL26022 x make contacts for power contactload onlytyp. 80 mACE, UL, DNV12 mm x 100 mm x 68 mm
KM204216– (no power contacts)typ. 5 mACE24 mm x 100 mm x 52 mm
KM27744 x 3 make contacts– (no power contacts)typ. 30 mACE132 mm x 100 mm x 38 mm
KM200864 (8 x 8)– (no power contacts)typ. 5 mACE123 mm x 100 mm x 55 mm
KM200432 (4 x 8)– (no power contacts)typ. 5 mACE75 mm x 100 mm x 55 mm
KM200216 (2 x 8)– (no power contacts)typ. 5 mACE26.5 mm x 100 mm x 71 mm
KL27222 x make contacts, mutually lockedonly leakage and load currenttyp. 10 mACE, CCC, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL27122 x make contactsonly leakage and load currenttyp. 10 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL20222typ. 20 mA + loadtyp. 5 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
KL20122typ. 15 mA + loadtyp. 5 mACE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm
KL25122typ. 10 mA + loadtyp. 18 mACE, CCC, ATEX, IECEx12 mm x 100 mm x 68 mm
KL25022typ. 10 mA + loadtyp. 18 mACE, CCC, UL, ATEX, IECEx, cFMus12 mm x 100 mm x 68 mm
KL24244typ. 30 mA + loadtyp. 9 mACE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm
