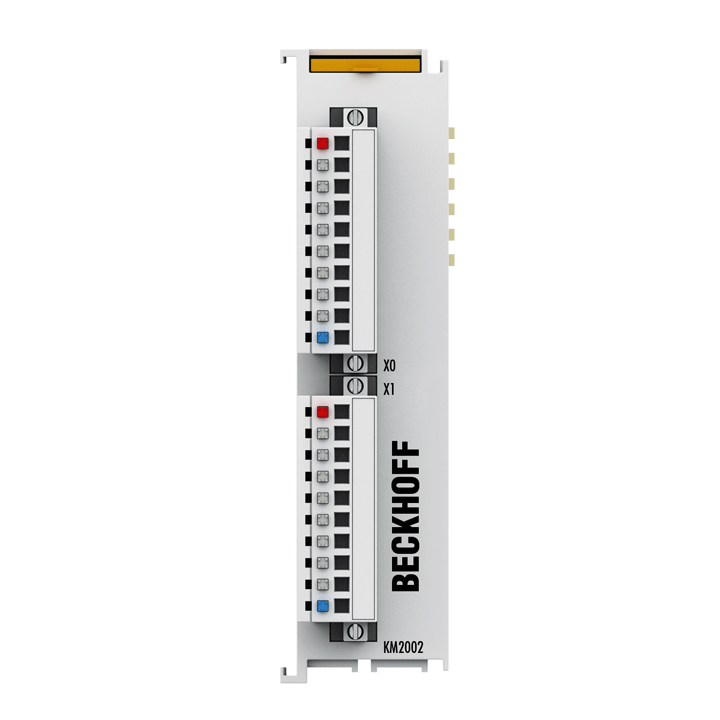

Beckhoff KM2002

Bus Terminal module, 16-channel digital output, 24 V DC, 0.5 A

MPN: KM2002
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KM2002?

The KM2002 terminal module combines 16 digital outputs with each eight channels per connector in a compact design. The binary control signals are transferred (electrically isolated) to the actuators at the process level. Like the standard Bus Terminals

Specifications

Connection technology	plug
Number of outputs	16 (2 x 8)
Nominal voltage	24 V DC (-15%/+20%)
Load type	ohmic, inductive, lamp load
Max. output current	0.5 A (short-circuit proof) per channel
Short-circuit current	2 A
Breaking energy	150 mJ/channel
Reverse voltage protection	yes
Electrical isolation	500 V (K-bus/field potential)
Current consumption power contacts	– (no power contacts)
Current consumption K-bus	typ. 5 mA
Bit width in the process image	16 outputs
Weight	approx. 90 g with 1-pin connector, approx. 110 g with 3-pin connector
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
Design form	compact terminal module with pluggable wiring level
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Connection cross-section	0.08…1.5 mm², stranded wire, solid wire
Stripping length	8 mm
Dimensions (W x H x D)	26.5 mm x 100 mm x 71 mm
