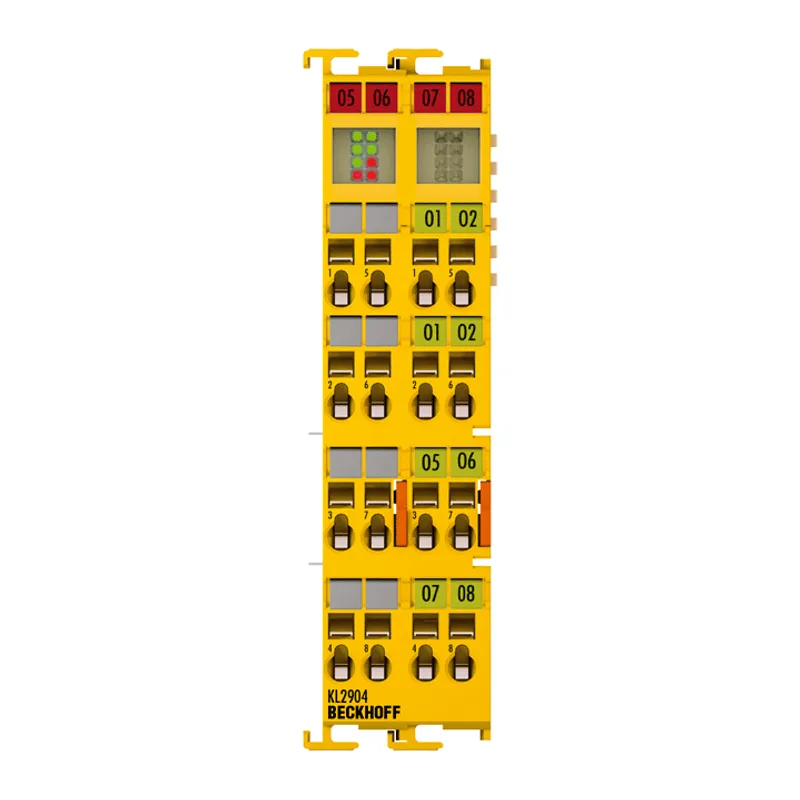

Beckhoff KL2904

Bus Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE

MPN: KL2904
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL2904?

The KL2904 safety Bus Terminal is a digital output terminal with four channels. It switches 24 V DC actuators with up to 0.5 A current per channel. If the Bus Terminal detects a fault, it switches off automatically (fail

Specifications

Connection technology	2-wire
Number of outputs	4
Protocol	TwinSAFE/Safety over EtherCAT
Fault response time	≤ watchdog time (parameterizable)
Current consumption power contacts	load-dependent
Current consumption K-bus	250 mA
Installation position	horizontal
Safety standard	DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Weight	approx. 100 g
Protection rating	IP20
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	24 mm x 100 mm x 68 mm
