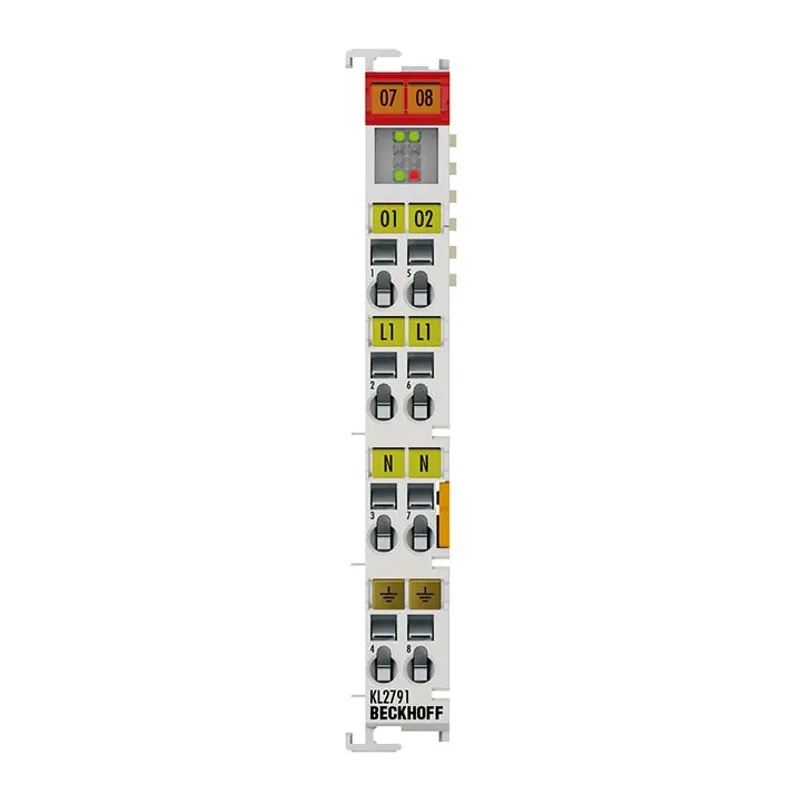

Beckhoff KL2791
Bus Terminal, 1-channel motion interface, AC motor, 230 V AC, 0.9 A
- MPN
- KL2791
- Category
- KL2xxx | Digital output
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff KL2791?
The KL2791-xxxx AC motor speed controller is intended for direct connection of different low-power single-phase AC motors. The KL2791 enables speed reduction of typical motors such as capacitor motors, universal motors and shaded-pole motors. The
Specifications
Specifications
| Connection technology | direct motor connection |
| Number of outputs | 1 motor |
| Nominal voltage | 230 V AC |
| Mains voltage | 230 V AC |
| Rated power | ≤ 200 VA |
| Load type | 1-phase AC motors |
| Max. output current | 0.9 A |
| Control type | phase/full wave control |
| Resolution | 1% |
| Reverse voltage protection | no |
| Electrical isolation | 500 V (K-bus/field voltage), 3750 V AC (1 min.) |
| Leakage current (OFF state) | 1 mA |
| Current consumption power contacts | load only |
| Current consumption K-bus | typ. 95 mA |
| Bit width in the process image | output: 1 x 16 bit data (1 x 8 bit control/status optional) |
| Weight | approx. 60 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/see documentation |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals/markings | CE |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
