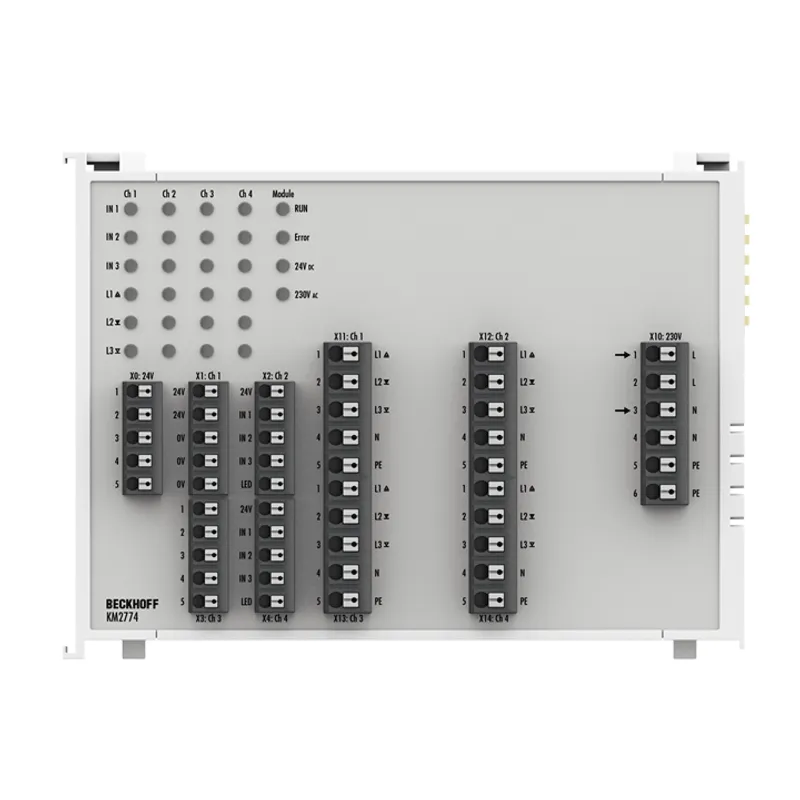

Beckhoff KM2774
Bus Terminal module, 4-channel triac output, 80…230 V AC, 1.5 A
- MPN
- KM2774
- Category
- KL2xxx | Digital output
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff KM2774?
The compact KM2774 module enables direct connection of up to four AC motors with reversal of rotation direction and a further travel function. For each motor, three mutually locked Triac outputs with 230 V AC and up to 1.5 A are available. The outputs
Specifications
Specifications
| Number of outputs | 4 x 3 make contacts |
| Nominal voltage | 80…230 V AC |
| Overcurrent limit | adjustable |
| Signal input | 12 x 24 V DC |
| Load type | ohmic, inductive |
| Max. output current | 1.5 A per channel |
| Rotating field frequency | 50 Hz |
| Surge voltage protection | > 275 V AC |
| Peak current | 40 A (16 ms), 3 A (30 s) |
| Switch-off time | T/2 |
| Residual voltage | max. 1.5 V |
| Electrical isolation | 500 V (K-bus/field voltage), 3750 V AC (1 min.) |
| Leakage current (OFF state) | typ. 0.8 mA, max. 1.5 mA |
| Switching times | 0.1…10 ms, zero crossing |
| Current consumption power contacts | – (no power contacts) |
| Current consumption K-bus | typ. 30 mA |
| Bit width in the process image | 3 byte input/output |
| Configuration | no address or configuration setting |
| Dimensions (W x H x D) | 132 mm x 100 mm x 38 mm |
| Weight | approx. 270 g |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals/markings | CE |
KM2774: frequently asked questions
When can KM2774 be shipped?
KM2774 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KM2774 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KM2774 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KM2774, subject to availability and destination.
