KL2xxx | Digital output Parts




Bus Terminal module, 2-channel digital output, 230 V AC, 6 A, manual/automatic operation

Bus Terminal module, 2-channel digital output, 230 V AC, 6 A, manual/automatic operation



Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A, ground switching, flat-ribbon cable


Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching, without power contacts

Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, contact-protecting switching



Compare KL2xxx | Digital output
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection technology | Number of outputs | Current consumption K-bus | Weight | Dimensions (W x H x D) |
|---|---|---|---|---|---|
| KL2404 | 2-wire | 4 | typ. 9 mA | approx. 70 g | 12 mm x 100 mm x 68 mm |
| KL2134 | 2-/3-wire | 4 | typ. 9 mA | approx. 70 g | 12 mm x 100 mm x 68 mm |
| KL2114 | 2-/3-wire | 4 | typ. 9 mA | approx. 70 g | 12 mm x 100 mm x 68 mm |
| KM2652 | — | 2 x change-over | typ. 130 mA | approx. 110 g | 24 mm x 100 mm x 52 mm |
| KM2642 | — | 2 x change-over | typ. 130 mA | approx. 110 g | 24 mm x 100 mm x 52 mm |

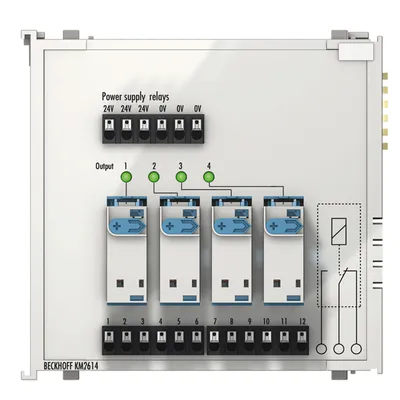

| KM2614 | — | 4 x change-over | typ. 15 mA | approx. 250 g | 99 mm x 100 mm x 62 mm |

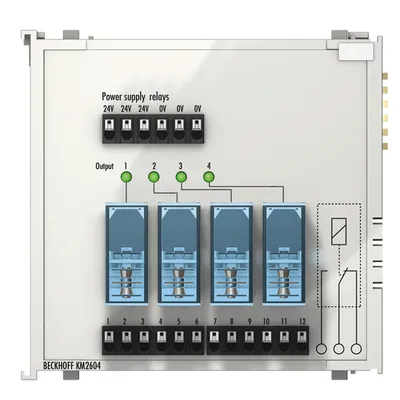

| KM2604 | — | 4 x change-over | typ. 15 mA | approx. 250 g | 99 mm x 100 mm x 62 mm |
| KL2872-0010 | flat-ribbon cable | 16 | typ. 5 mA | approx. 55 g | 12 mm x 100 mm x 73 mm |
| KL2872 | flat-ribbon cable | 16 | typ. 5 mA | approx. 55 g | 12 mm x 100 mm x 73 mm |
| KL2622-0010 | relay output | 2 x make contacts | 90 mA | approx. 80 g | 12 mm x 100 mm x 68 mm |
| KL2602-0010 | relay output | 2 x make contacts for power contact | typ. 80 mA | approx. 85 g | 12 mm x 100 mm x 68 mm |

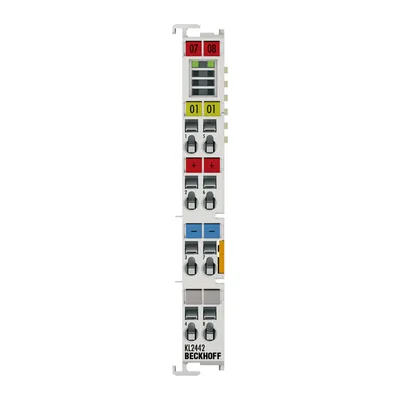

| KL2442 | 3-wire | 2 | typ. 9 mA | approx. 70 g | 12 mm x 100 mm x 68 mm |
| KL2634 | relay output | 4 x make contacts | typ. 120 mA | approx. 70 g | 12 mm x 100 mm x 68 mm |
| KL2542 | — | 2 | typ. 100 mA | approx. 100 g | 24 mm x 100 mm x 68 mm |
Common to all listed parts
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
