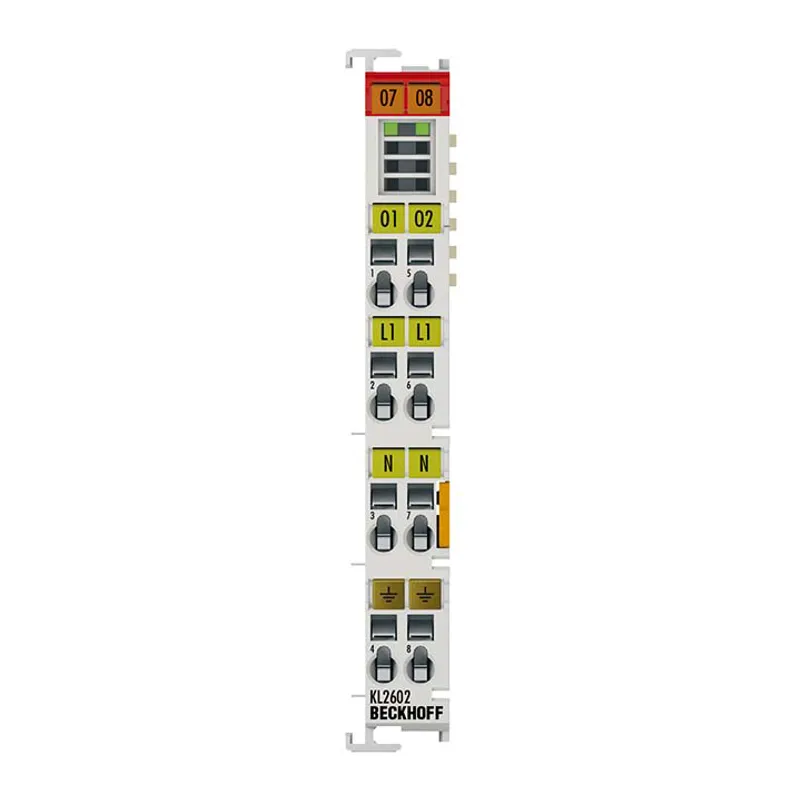

Beckhoff KL2602

Bus Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A

MPN: KL2602
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL2602?

The KL2602 output terminal has two relays, each with a single contact, and can be used to switch devices requiring mains power and operating at up to 230 V AC. The relay contacts of the KL2602 are connected to the power

Specifications

Number of outputs	2 x make contacts for power contact
Nominal voltage	230 V AC/30 V DC
Load type	ohmic, inductive, lamp load
Max. output current	5 A per channel
Switching current	5 A AC/DC (ohmic)/2 A AC/DC (inductive)
Ohmic switching current	5 A AC/DC
Inductive switching current	2 A AC/DC
Minimum permitted load	10 mA at 5 V DC
Lamp test, electronic ballast	max. 5 A starting current (4 x 58 W)
Electrical isolation	500 V (K-bus/field potential)
Current consumption power contacts	load only
Current consumption K-bus	typ. 80 mA
Bit width in the process image	2 outputs
Operating cycles mech. (min.)	2 x 107
Operating cycles electr. (min.)	1 x 105 (5 A/30 V DC)
Configuration	no address or configuration setting
Special features	power relay
Weight	approx. 85 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, DNV
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
