EPP1xxx | Digital input Parts
Beckhoff

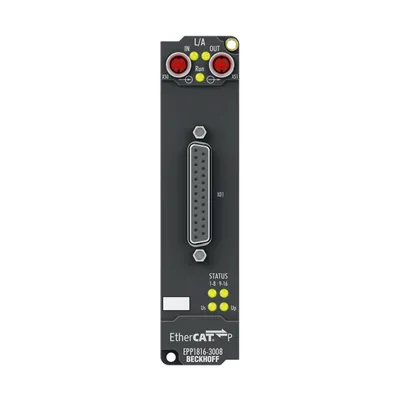

EPP1816-3008EtherCAT P Box, 16-channel digital input, 24 V DC, 10 µs, D-sub, 2 x 3-axis accelerometers
Beckhoff
EPP1839-0022EtherCAT P Box, 16-channel digital input, 24 V DC, M12, with extended diagnostics
Beckhoff

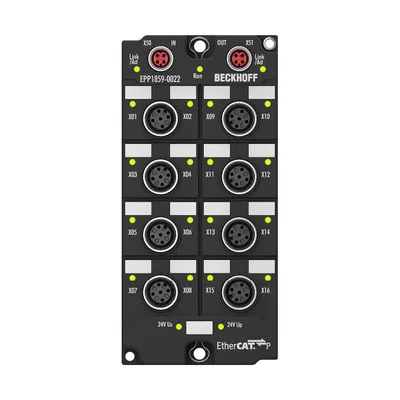

EPP1859-0022EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff

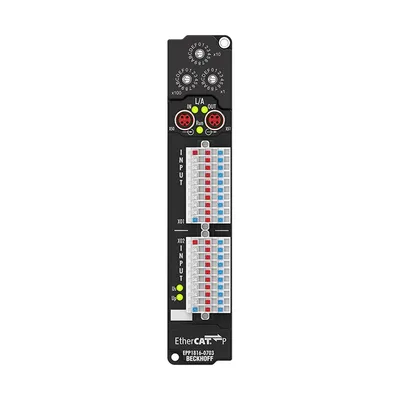

EPP1816-0703EtherCAT P Box, 16-channel digital input, ID switch, 24 V DC, 10 µs, IP20 connector
Compare EPP1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input connections | Input filter | “0” signal voltage | Current consumption from US | Dimensions (W x H x D) |
|---|---|---|---|---|---|

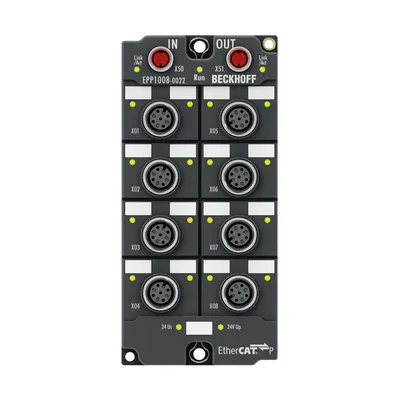

| EPP1008-0022 | M12 x 1, 5-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |

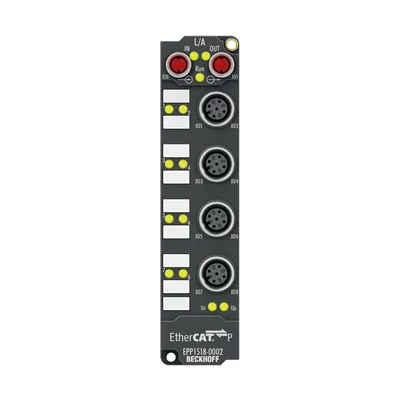

| EPP1518-0002 | M12 x 1, 5-pin, a-coded | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1816-3008 | D-sub socket, 25-pin, UNC4-40 | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |

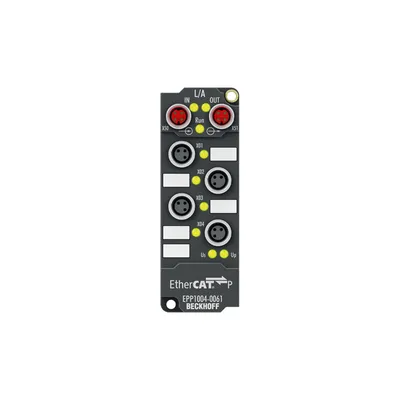

| EPP1004-0061 | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 86 mm x 22 mm |

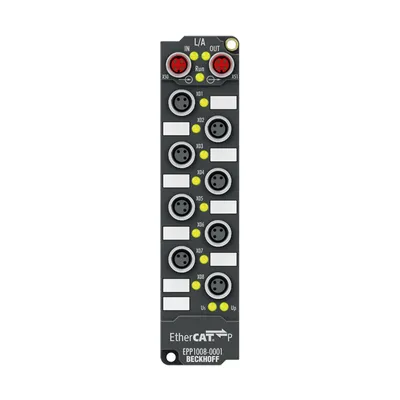

| EPP1008-0001 | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |

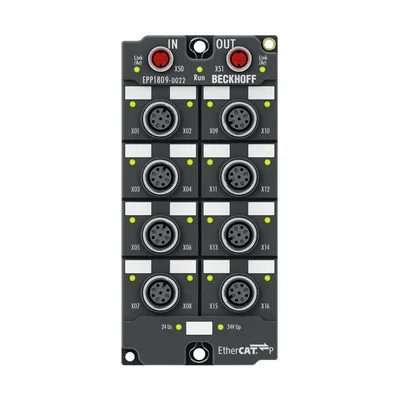

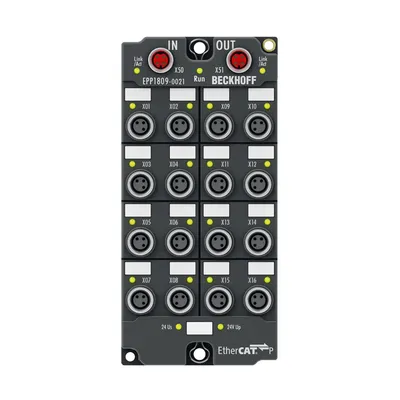

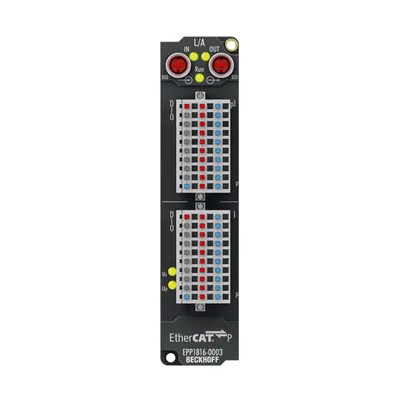

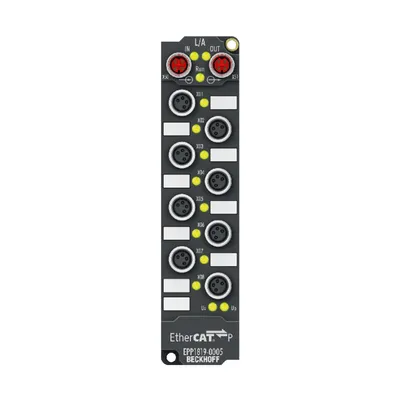

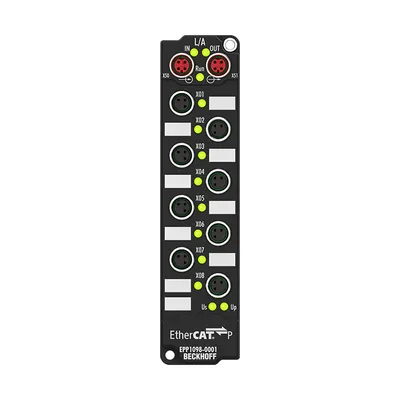

| EPP1809-0022 | M12 x 1, 5-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1008-0002 | M12 x 1, 5-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1819-0021 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1018-0002 | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1258-0001 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1809-0021 | M8 x 1, 3-pin, a-coded | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1816-0008 | D-sub socket, 25-pin, UNC4-40 | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1258-0002 | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (similar to EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1819-0022 | M12 x 1, 5-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1018-0001 | M8 x 1, 3-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1816-0003 | connector with spring-loaded system | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1819-0005 | M8 x 1, 4-pin, a-coded | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 130 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1839-0022 | M12 x 1, 5-pin, a-coded | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1859-0022 | — | 3.0 ms | -3…+5 V | 120 mA | 60 mm x 126 mm x 26.5 mm |
| EPP1098-0001 | M8 x 1, 3-pin, a-coded | 10 µs | 11…30 V | 120 mA | 30 mm x 126 mm x 26.5 mm |
| EPP1816-0703 | connector with spring-loaded system | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 120 mA | 30 mm x 155 mm x 26.5 mm |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Material | PA6 (polyamide) |
