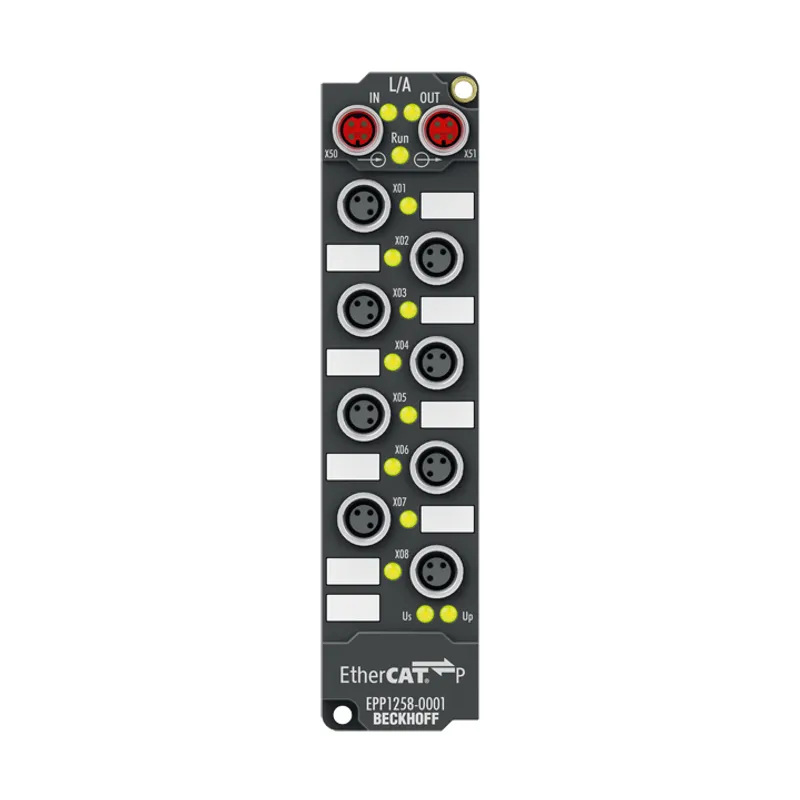

Beckhoff EPP1258-0001

EtherCAT P Box, 8-channel digital input, 24 V DC, 10 µs, M8, timestamp

MPN: EPP1258-0001
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1258-0001?

The EPP1258-0001 EtherCAT P Box with digital inputs acquires fast binary control signals from the process level and transmits them, electrically isolated, to the controller. The signals 0 and 1 are furnished with a timestamp that shows the time of the

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Specification	EN 61131-2, type 1/3
Number of inputs	8, 2 with timestamp
Input connections	M8 x 1, 3-pin, a-coded
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V (similar to EN 61131-2, type 3)
“1” signal voltage	11…30 V (similar to EN 61131-2, type 3)
Input current	typ. 3 mA (similar to EN 61131-2, type 3)
Distributed clocks	yes
Distributed clock precision	100 ns (channel 0/1)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Resolution timestamp	1 ns (channel 0/1)
Precision of timestamp	10 ns (+ input delay) (channel 0/1)
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Special features	timestamp, latch last edge
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
