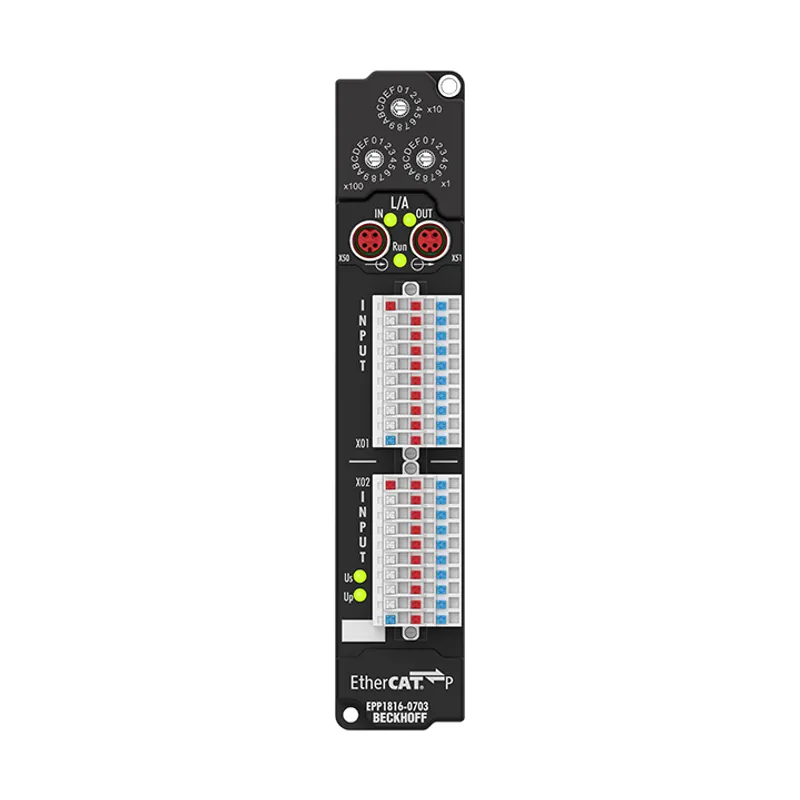

Beckhoff EPP1816-0703

EtherCAT P Box, 16-channel digital input, ID switch, 24 V DC, 10 µs, IP20 connector

MPN: EPP1816-0703
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1816-0703?

The EPP1816-0703 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them electrically isolated to the controller. The signal state is indicated by means of LEDs. The signal connection is established

Specifications

Specification	EN 61131-2, type 1/3
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Operating temperature	-25…+60°C
Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of configurable IDs	4096
Number of inputs	16
Input connections	connector with spring-loaded system
Distributed clocks	yes
Current consumption from US	typ. 120 mA
Electrical isolation	500 V
Weight	approx. 200 g
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	30 mm x 155 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
