Beckhoff EPP1819-0021

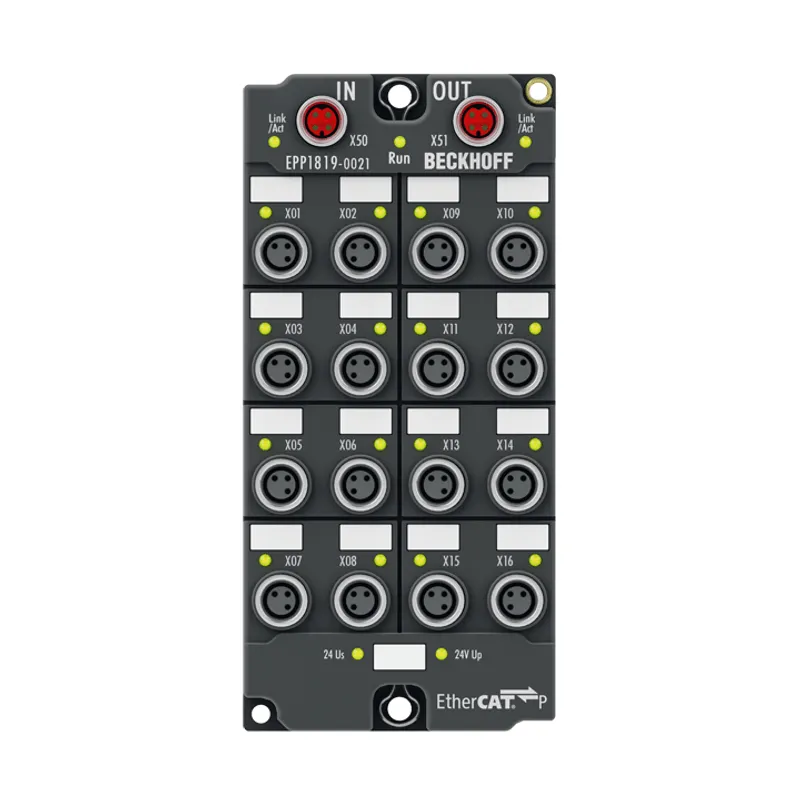

EtherCAT P Box, 16-channel digital input, 24 V DC, 10 µs, M8

MPN: EPP1819-0021
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1819-0021?

The EPP1819-0021 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them, with electrical isolation, to the controller. The signal state is displayed by LEDs; the signals are connected via screwable M8

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Specification	EN 61131-2, type 1/3
Number of inputs	16
Input connections	M8 x 1, 3-pin, a-coded
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Distributed clocks	–
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
