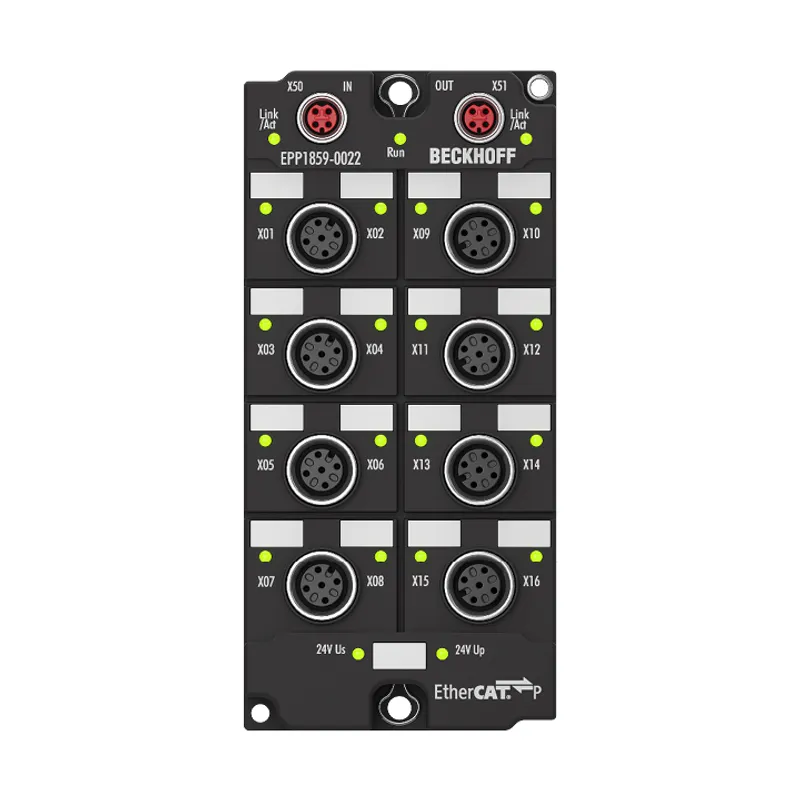

Beckhoff EPP1859-0022

EtherCAT P Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, M12

MPN: EPP1859-0022
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1859-0022?

The EPP1859-0022 EtherCAT P Box module combines eight digital inputs (four M12 sockets on the left) and eight digital outputs (four M12 sockets on the right) in a single device. The inputs have a filter of 3.0 ms; the outputs are capable of handling load

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Specification	EN 61131-2, type 1/3
Number of channels	8 inputs + 8 outputs
Input/output connections	M12 x 1, 5-pin, a-coded
Input filter	3.0 ms
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 3 mA input current (EN 61131-2, type 1/3)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof, ∑ 3 A from UP
Switching times	typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current	typ. 1.5 A
Distributed clocks	–
Auxiliary power current	typ. 20 mA + load
Current consumption from US	120 mA
Electrical isolation	500 V
Special features	8 fixed inputs/outputs
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
