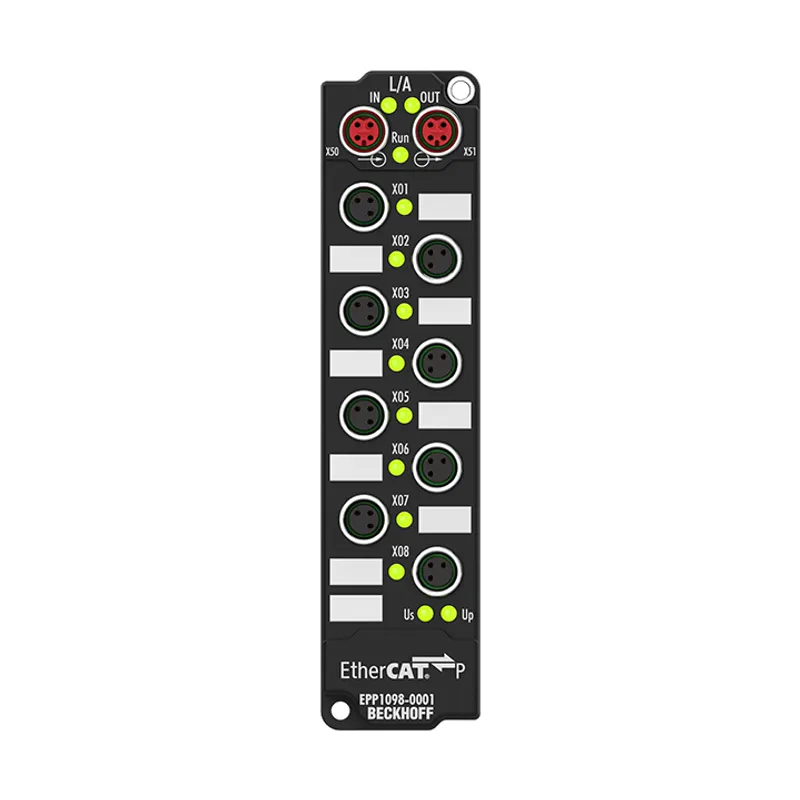

Beckhoff EPP1098-0001

EtherCAT P Box, 8-channel digital input, 24 V DC, 10 µs, ground switching, M8

MPN: EPP1098-0001
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1098-0001?

The EPP1098-0001 EtherCAT P Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The

Specifications

Specification	ground switching
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	11…30 V
“1” signal voltage	0…7 V
Input current	typ. 3 mA
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Operating temperature	-25…+60°C
Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of inputs	8
Input connections	M8 x 1, 3-pin, a-coded
Distributed clocks	–
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Current consumption from US	120 mA
Weight	approx. 165 g
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
