Beckhoff EPP1816-3008

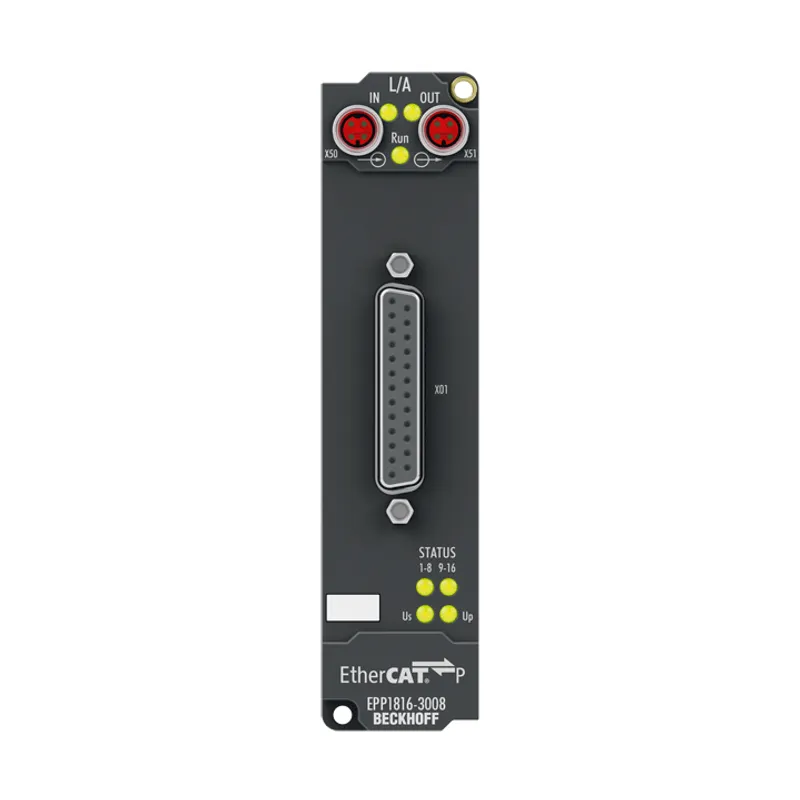

EtherCAT P Box, 16-channel digital input, 24 V DC, 10 µs, D-sub, 2 x 3-axis accelerometers

MPN: EPP1816-3008
Category: EPP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1816-3008?

The EPP1816-3008 EtherCAT P Box with digital inputs acquires binary control signals from the process level and transfers them, with electrical isolation, to the controller. The signal state is indicated by means of LEDs. The signal connection is

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Specification	EN 61131-2, type 1/3
Number of inputs	16
Input connections	D-sub socket, 25-pin, UNC4-40
Sensors	±2…16 g \| 10 bits
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	10 µs
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Distributed clocks	yes
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Current consumption from US	typ. 100 mA
Electrical isolation	500 V
Special features	integrated accelerometers
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
