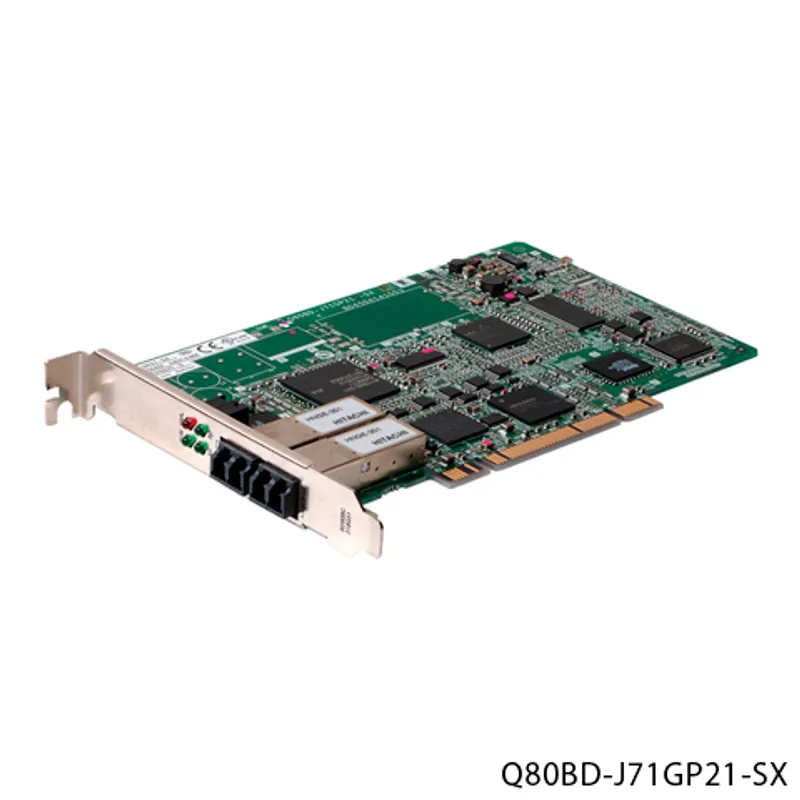

Q80BD-J71GP21-SX Mitsubishi MELSEC network modules Network interface boards

MPN: Q80BD-J71GP21-SX · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Control
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q80BD-J71GP21-SX be shipped?

Q80BD-J71GP21-SX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q80BD-J71GP21-SX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q80BD-J71GP21-SX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q80BD-J71GP21-SX, subject to availability and destination.

The Mitsubishi Electric Q80BD-J71GP21-SX is a network interface boards in the MELSEC network modules. CC-Link IE Controller Network (fiber-optic cable), control/normal station, PCI/PCI-X slot, Japanese/English OS supported. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Network interface boards
Type	Optical fiber cable
Subtype	Control/normal station
Outline	CC-Link IE Controller Network (fiber-optic cable), control/normal station, PCI/PCI-X slot, Japanese/English OS supported

Specifications

Maximum number of link points per network: LB	32K points (32768 points, 4K bytes)
Maximum number of link points per network: LW	128K points (131072 points, 256K bytes)
Maximum number of link points per network: LX	8K points (8192 points, 1K bytes)
Maximum number of link points per network: LY	8K points (8192 points, 1K bytes)
Maximum number of link points per station: LB	Normal: 16K points (16384 points, 2K bytes) Extended mode: 32K points (32768 points, 4K bytes)
Maximum number of link points per station: LW	Normal: 16K points ( 16384 points, 32K bytes) Extended mode: 128K points (131072 points, 256K bytes)
Maximum number of link points per station: LX	8K points (8192 points, 1K bytes)
Maximum number of link points per station: LY	8K points (8192 points, 1K bytes)
Transient transmission capacity	Maximum 1920 bytes
Communication speed	1 Gbps
Communication cable	Optical fiber cable which satisfies 1000BASE-SX standard: Multi-mode optical fiber (GI)
Connector specifications	Duplex LC connector
Laser class (IEC 60825-1)	Class 1 laser product
Overall cable distance	66000 m (when 120 stations are connected)
Maximum station-to-station distance	550 m
Maximum number of connectable stations	120 stations (control station: 1, normal station: 119)
Maximum number of networks	239
Maximum number of groups	32
Communication method	Token ring
Network topology	Duplex loop
Number of installable boards	Maximum 4 boards
Installation slot	PCI slot or PCI-X slot (half size)
Number of occupied slots	1
Internal current consumption (5 V DC)	1.10 A
Weight	0.12 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011	147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Model Q80BD/Q81BD CC-Link IE Controller Network Interface Board User's Manual (SH-080691ENG-AI)	PDF · 2.30MB
MELSEC Data Link Library Reference Manual (SH-081035ENG-W)	PDF · 1.67MB
Before Using the Product (BCN-P5825)	PDF · 0.13MB
CC-Link IE Controller Network Q80BD-J71GP21-SX/Q81BD-J71GP21-SX Driver Development Reference Manual (SH-080819ENG-C)	PDF · 1.56MB
