Mitsubishi Electric Q81BD-J71GP21S-SX

Mitsubishi MELSEC network modules Network interface boards

MPN
Q81BD-J71GP21S-SX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

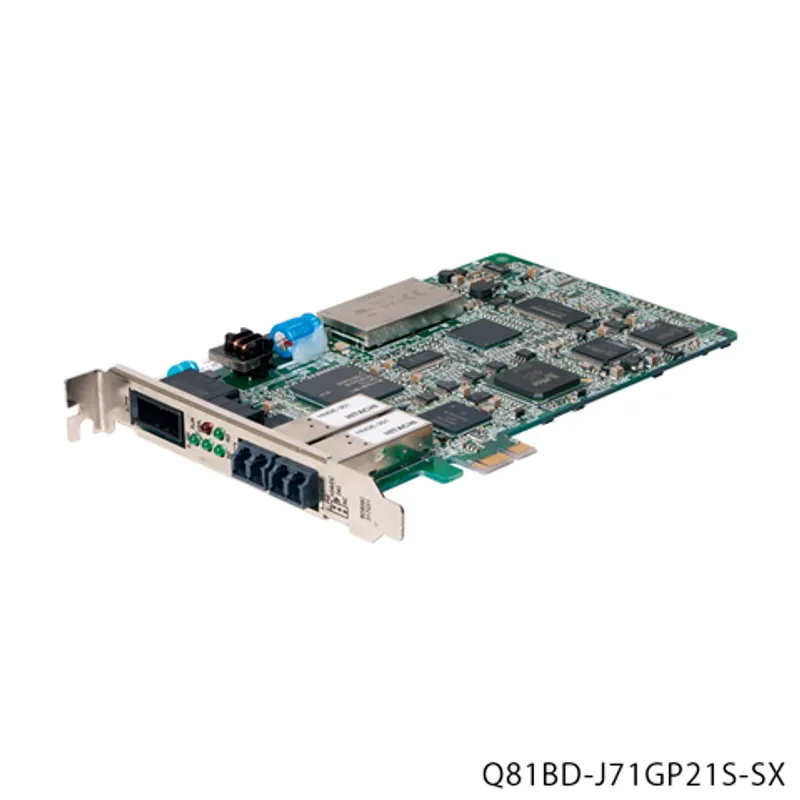

What is the Mitsubishi Electric Q81BD-J71GP21S-SX?

The Mitsubishi Electric Q81BD-J71GP21S-SX is a network interface boards in the MELSEC network modules. CC-Link IE Controller Network (fiber-optic cable), control/normal station, PCI Express ® slot, Japanes/English OS supported, with external power supply. Mitsubishi Electric has announced its discontinuation (2027/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryNetwork interface boards
TypeOptical fiber cable
SubtypeControl/normal station
Sales status2027/03 To be end of order (Mitsubishi Electric)
OutlineCC-Link IE Controller Network (fiber-optic cable), control/normal station, PCI Express ® slot, Japanes/English OS supported, with external power supply

Specifications

Maximum number of link points per network: LB32K points (32768 points, 4K bytes)
Maximum number of link points per network: LW128K points (131072 points, 256K bytes)
Maximum number of link points per network: LX8K points (8192 points, 1K bytes)
Maximum number of link points per network: LY8K points (8192 points, 1K bytes)
Maximum number of link points per station: LBNormal: 16K points (16384 points, 2K bytes) Extended mode: 32K points (32768 points, 4K bytes)
Maximum number of link points per station: LWNormal: 16K points ( 16384 points, 32K bytes) Extended mode: 128K points (131072 points, 256K bytes)
Maximum number of link points per station: LX8K points (8192 points, 1K bytes)
Maximum number of link points per station: LY8K points (8192 points, 1K bytes)
Transient transmission capacityMaximum 1920 bytes
Communication speed1 Gbps
Communication cableOptical fiber cable which satisfies 1000BASE-SX standard: Multi-mode optical fiber (GI)
Connector specificationsDuplex LC connector
Laser class (IEC 60825-1)Class 1 laser product
Overall cable distance66000 m (when 120 stations are connected)
Maximum station-to-station distance550 m
Maximum number of connectable stations120 stations (control station: 1, normal station: 119)
Maximum number of networks239
Maximum number of groups32
Communication methodToken ring
Network topologyDuplex loop
External power supply: Voltage20.4...31.2 V DC
External power supply: Current0.27 A
External power supply: Allowable momentary power failure time1 ms (Level PS1)
Number of installable boardsMaximum 4 boards
Installation slotPCI Express ® X1, X2, X4, X8, X16 slot (half size)
Number of occupied slots1
Internal current consumption (3.3 V DC)2.07 A
Weight0.14 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007 and JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007 and JIS B 3502: 2011147 m/s 2 , 3 shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q81BD-J71GP21S-SX: frequently asked questions

When can Q81BD-J71GP21S-SX be shipped?

Q81BD-J71GP21S-SX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q81BD-J71GP21S-SX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q81BD-J71GP21S-SX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q81BD-J71GP21S-SX, subject to availability and destination.
