XP general purpose Parts

ABB

XM32442T

40HP,1775//1480RPM,3PH,60//50HZ,324

ABB

XM05142

1//.75HP,1760//1475RPM,3PH,60//50HZ

ABB

XM14162T

1//.75HP,1155//970RPM,3PH,60//50HZ

ABB

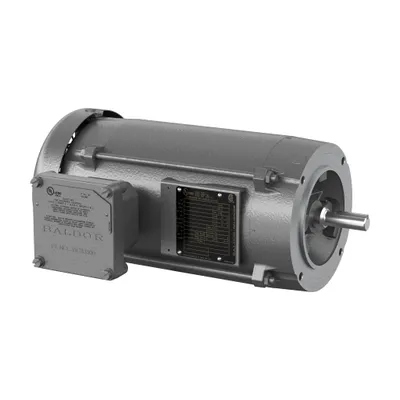

VXM050742-5

.75HP,1765RPM,3PH,60HZ,56C,3514M,XP

ABB

CXM050342

0.33//0.25HP,1780//1480RPM,3PH,60//

ABB

CXM14142T

1//.75HP,1770//1475RPM,3PH,60//50HZ

ABB

VXM05142

1//.75HP,1770//1475RPM,3PH,60//50HZ

ABB

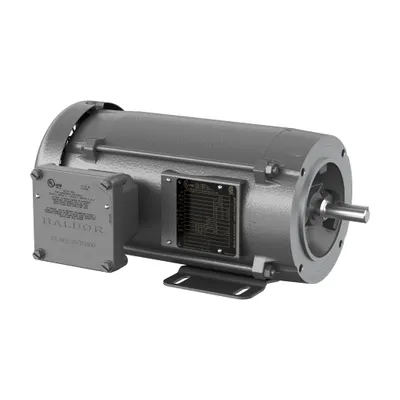

CXM050542

.5//.33HP,1770//1475RPM,3PH,60//50H

ABB

CXM050742

0.75//0.5HP,1765//1470RPM,3PH,60//5

ABB

XM05162

1//.75HP,1155//970RPM,3PH,60//50HZ

ABB

VXM050542-5

.5HP,1770RPM,3PH,60HZ,56C,3512M,XPF

ABB

CXM18542T

5//3HP,1750//1460RPM,3PH,60//50HZ,1

ABB

XL05122A

1HP,3450RPM,1PH,60HZ,56,3524L,XPFC

ABB

XM14242T

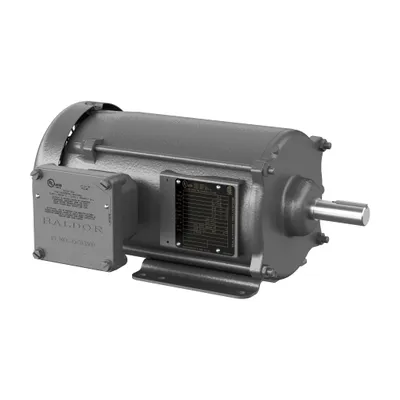

2//1.5HP,1760//1456RPM,3PH,60//50HZ

ABB

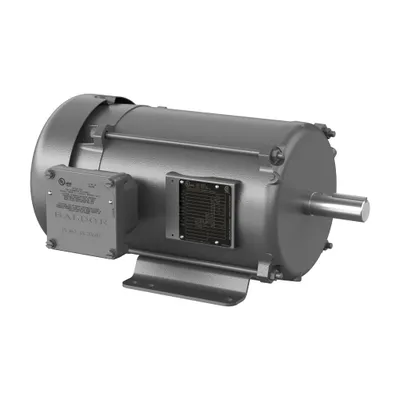

XM18342T-5

32M 4P XPFC HOR 182T T'STATS INVERT

ABB

CXM051542

1.5//1HP,1770//1475RPM,3PH,60//50HZ

ABB

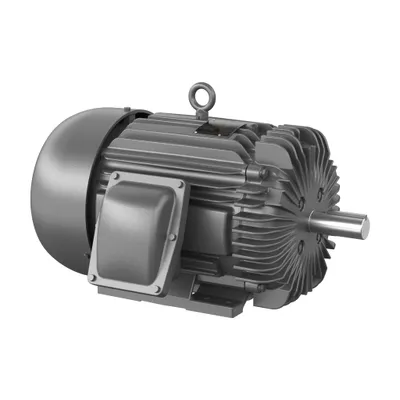

XM25222T

50M 2P XPFC HOR 256T T'STATS INV D

ABB

XM18542T-5

42M 4P XPFC HOR 184T T'STATS INVERT

ABB

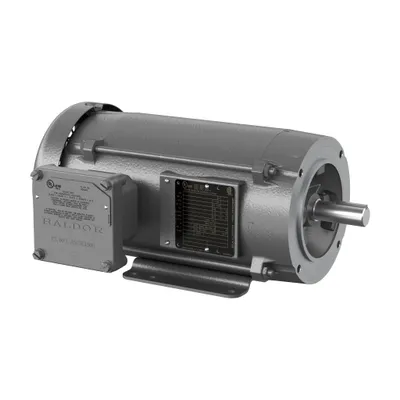

CM7018TX

1.5//1HP,3450//2880RPM,3PH,60//50HZ

ABB

XM181562T

32M 6P XPFC HOR 182T T'STATS INVERT

ABB

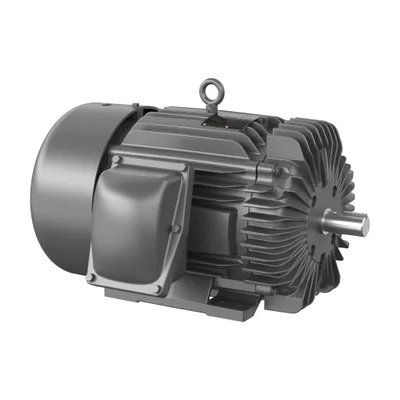

XM282522T

25HP,3520//2925RPM,3PH,60//50HZ,284

ABB

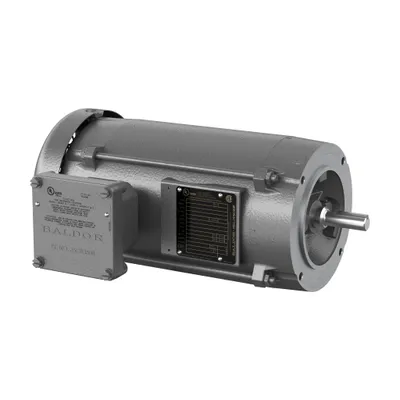

VXL051542A

1.5HP,1730RPM,1PH,60HZ,56C,3546L,XP

ABB

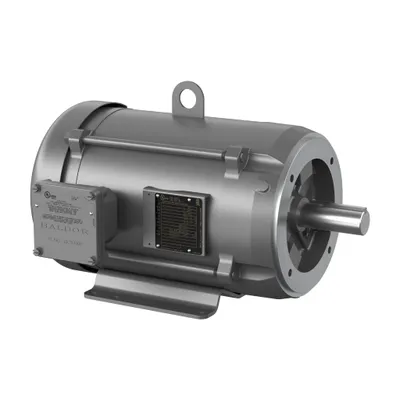

CXM21142T

10//7.5HP,1770//1475RPM,3PH,60//50H

ABB

CXM21122T

10//7.5HP,3510//2915RPM,3PH,60//50H

Compare XP general purpose

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Output Power	Product Net Weight	Dimension Diagram
XM32442T	XM32442T	82 %	30 Hp, 40.000 Hp	713 lb	12LYL018
XM05142	XM05142	67 %	0.750 Hp, 1.000 Hp	50 lb	35LYE356
XM14162T	XM14162T	64 %	0.750 Hp, 1.000 Hp	46 lb	35LYQ558
VXM050742-5	VXM050742-5	78 %	0.750 Hp	37 lb	35LYE374
CXM050342	CXM050342	49 %	0.250.000 Hp, 0.330 Hp	37 lb	35LYE2098
CXM14142T	CXM14142T	69 %	0.750 Hp, 1.000 Hp	50 lb	35LYE377
VXM05142	VXM05142	69 %	0.750 Hp, 1.000 Hp	50 lb	35LYE370
CXM050542	CXM050542	65 %	0.330.000 Hp, 0.500 Hp	33 lb	35LYE2098
CXM050742	CXM050742	74 %	0.5 Hp, 0.750 Hp	45 lb	35LYE2098
XM05162	XM05162	64 %	0.750 Hp, 1.000 Hp	49 lb	35LYE356
VXM050542-5	VXM050542-5	69 %	0.5 Hp	37 lb	35LYE374
CXM18542T	CXM18542T	74 %	3 Hp, 5.000 Hp	118 lb	36LYK919
XL05122A	XL05122A	81 %	1 Hp	50 lb	35LYE353
XM14242T	XM14242T	77 %	1.5 Hp, 2.000 Hp	59 lb	35LYE362
XM18342T-5	XM18342T-5	75 %	3 Hp	102 lb	36LYR726
CXM051542	CXM051542	72 %	1.500 Hp, 1 Hp	50 lb	35LYE368
XM25222T	XM25222T	91 %	15 Hp, 20.000 Hp	390 lb	09LYE270
XM18542T-5	XM18542T-5	78 %	5 Hp	97 lb	36LYR726
CM7018TX	CM7018TX	88 %	1.5 Hp, 1 Hp	47 lb	—
XM181562T	XM181562T	67 %	1.500 Hp, 1 Hp	102 lb	36LYR726
XM282522T	XM282522T	90 %	20 Hp, 25.000 Hp	507 lb	10LYE900
VXL051542A	VXL051542A	78 %	1.5 Hp	73 lb	35LYE371
CXM21142T	CXM21142T	85 %	10 Hp, 7.500 Hp	189 lb	37LYL772
CXM21122T	CXM21122T	90 %	10 Hp, 7.500 Hp	165 lb	37LYL772

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Type of Duty	Continuous
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Mounting Position	F1
Brake Present	No
