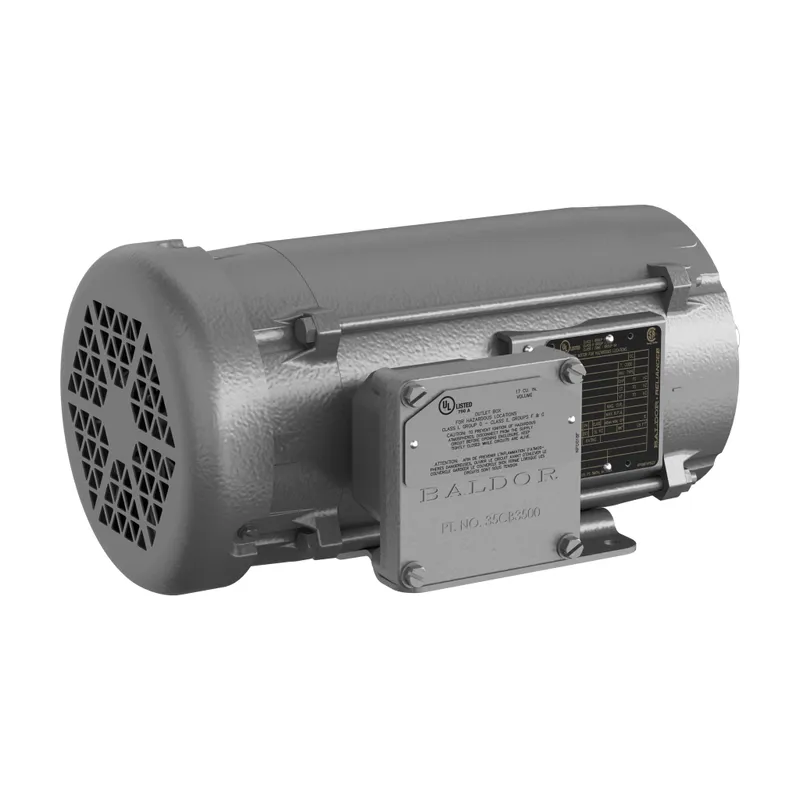

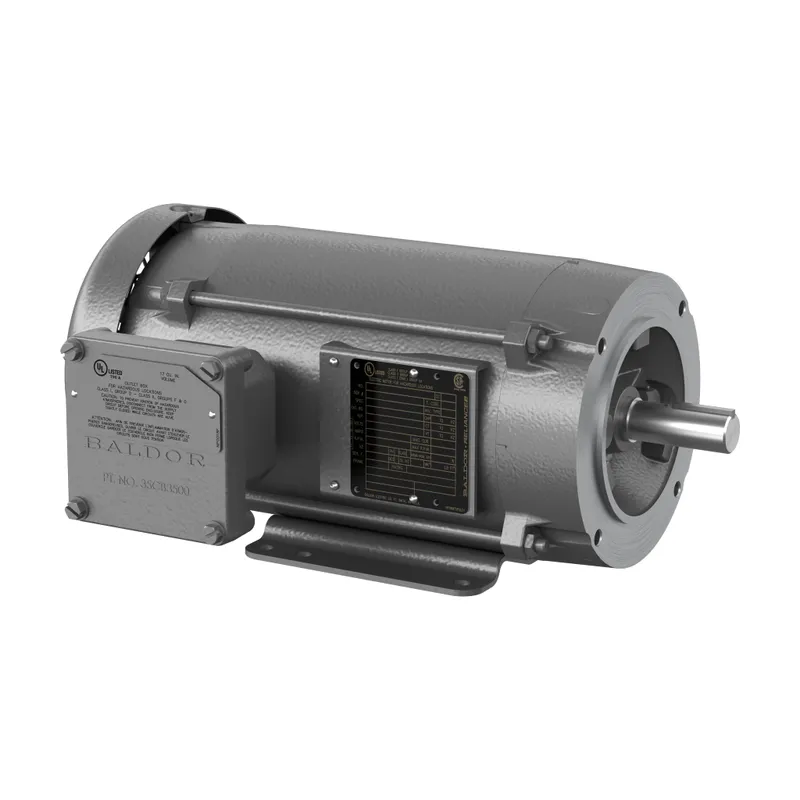

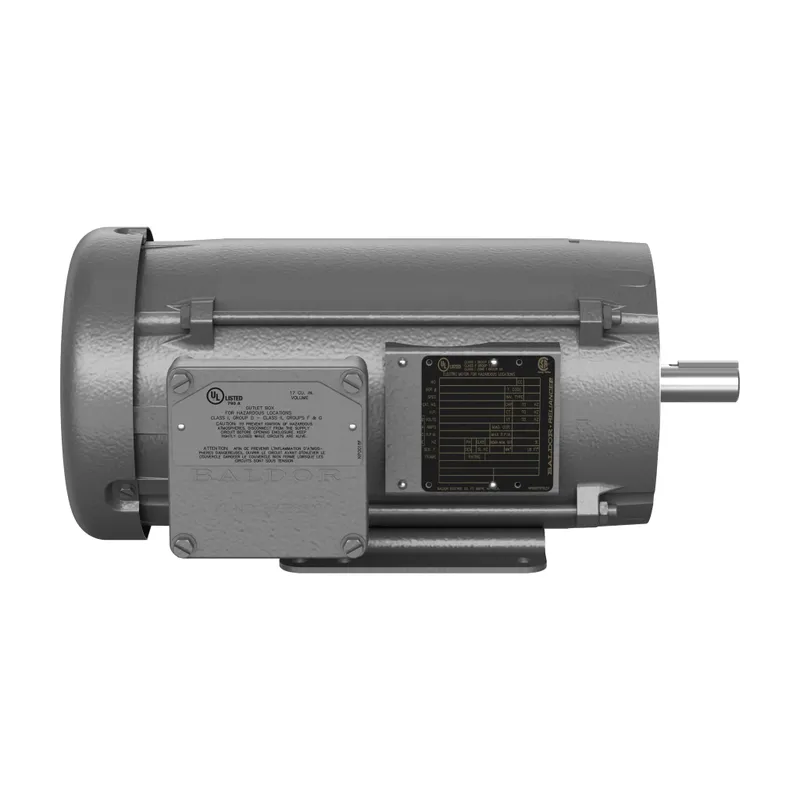

ABB CM7018TX

1.5//1HP,3450//2880RPM,3PH,60//50HZ

MPN: CM7018TX
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CM7018TX?

Explosion Proof General Purpos 1.5 Hp 190 V (CM7018TX)

Specifications

Ordering

Catalog Number	CM7018TX
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	IE2, Energy Efficiency (NEMA 12-11), Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	single_speed
Power Factor	88 %
Rated Efficiency	82.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	3000 r/min, 3600 r/min
Output Power	1.5 Hp, 1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	47 lb
Product Net Width	13.75 in

Certificates and Declarations

Certification Agency

CSA EEV, UL
