Home / ABB / XP general purpose / ABB CXM14142T
ABB

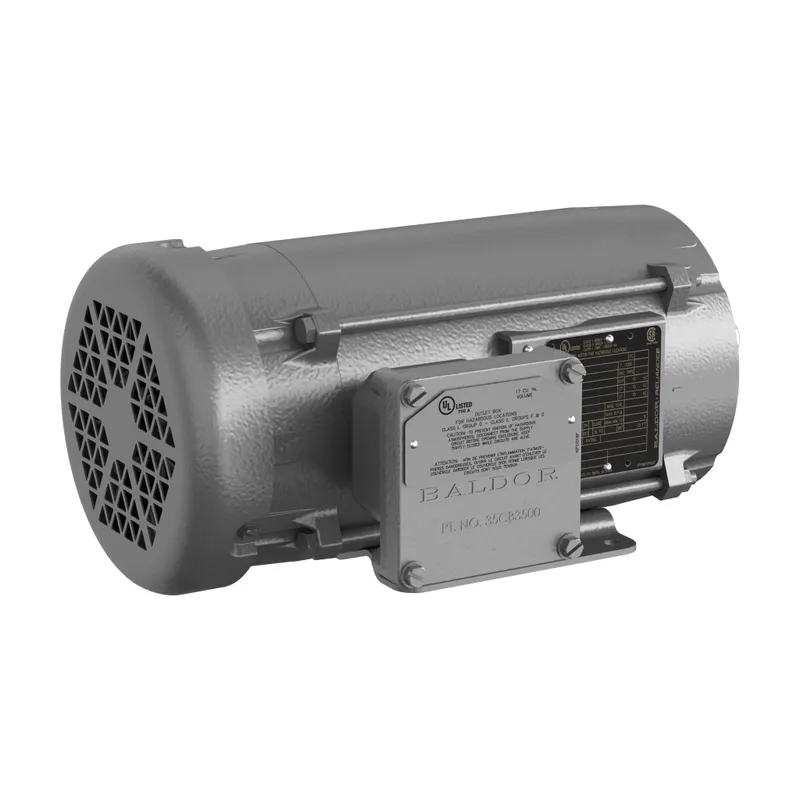

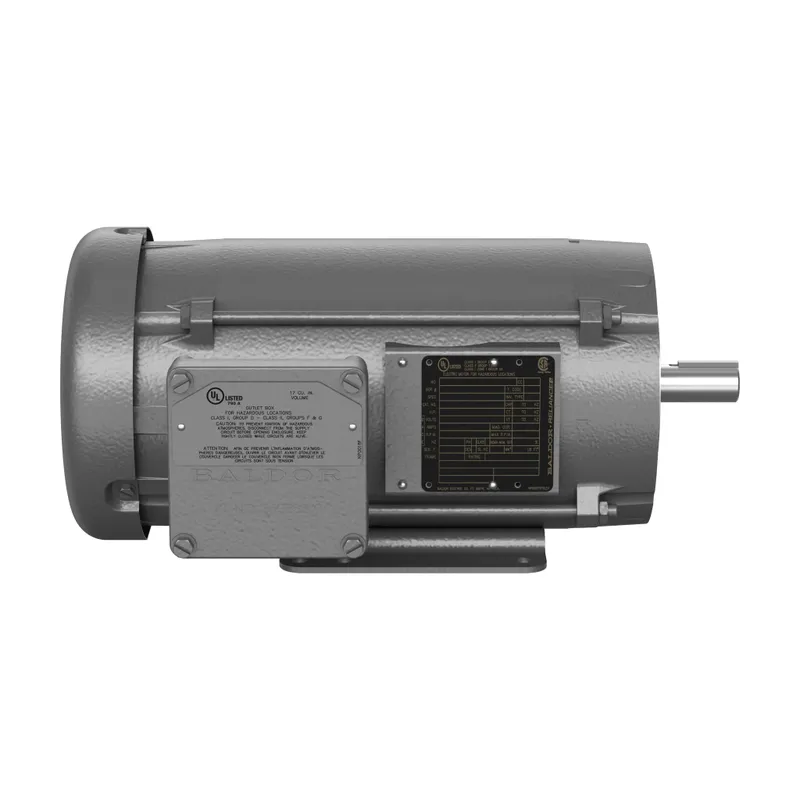

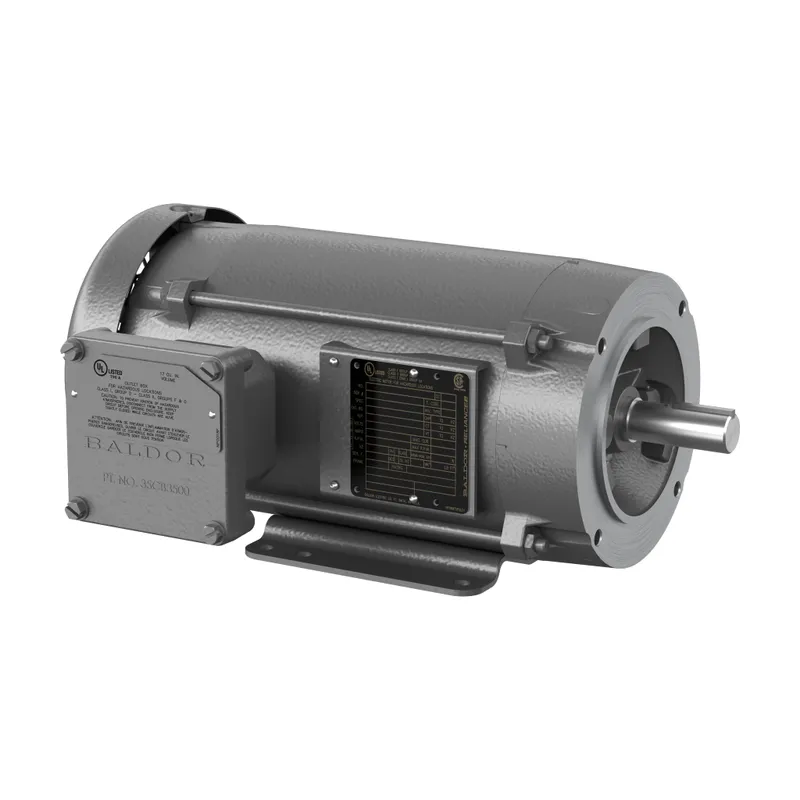

ABB CXM14142T

1//.75HP,1770//1475RPM,3PH,60//50HZ

MPN
CXM14142T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CXM14142T?

Explosion Proof General Purpos 0.750 Hp 190 V (CXM14142T)

Specifications

Ordering

Catalog NumberCXM14142T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor69 %
Rated Efficiency85.50 %
Service Factor1.00
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power0.750 Hp, 1.000 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size143TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight50 lb
Product Net Width13.75 in
Dimension Diagram35LYE377

Certificates and Declarations

Certification AgencyCSA EEV, UL, UR
ETIM 7EC001851 - Electric motor

CXM14142T: frequently asked questions

When can CXM14142T be shipped?

CXM14142T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CXM14142T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CXM14142T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CXM14142T, subject to availability and destination.

More ABB parts

ABB CXM05142 – 1//.75HP,1770//1475RPM,3PH,60//50HZ
ABB
CXM05142

1//.75HP,1770//1475RPM,3PH,60//50HZ

ABB CXM05142-57 – 1HP,1425RPM,3PH,50HZ,56C,3432M,XPFC
ABB
CXM05142-57

1HP,1425RPM,3PH,50HZ,56C,3432M,XPFC

ABB CXM051542 – 1.5//1HP,1770//1475RPM,3PH,60//50HZ
ABB
CXM051542

1.5//1HP,1770//1475RPM,3PH,60//50HZ

ABB CXM05242 – 2//1.5HP,1760//1456RPM,3PH,60//50HZ
ABB
CXM05242

2//1.5HP,1760//1456RPM,3PH,60//50HZ

ABB CXM141522T – 1.5//1HP,3500//2900RPM,3PH,60//50HZ
ABB
CXM141522T

1.5//1HP,3500//2900RPM,3PH,60//50HZ

ABB CXM14222T – 2//1.5HP,3490//2890RPM,3PH,60//50HZ
ABB
CXM14222T

2//1.5HP,3490//2890RPM,3PH,60//50HZ

ABB CXM14242T – 2//1.5HP,1760//1456RPM,3PH,60//50HZ
ABB
CXM14242T

2//1.5HP,1760//1456RPM,3PH,60//50HZ

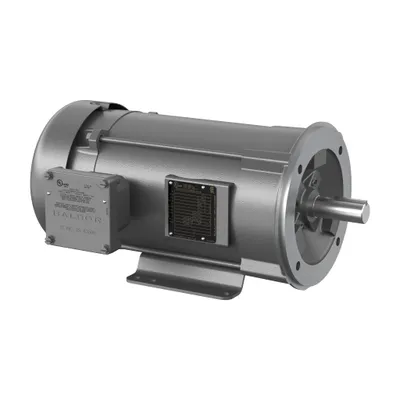

ABB CXM18322T – 3//2HP,3450//2890RPM,3PH,60//50HZ,1
