Home / ABB / XP general purpose / ABB CXM050342

ABB

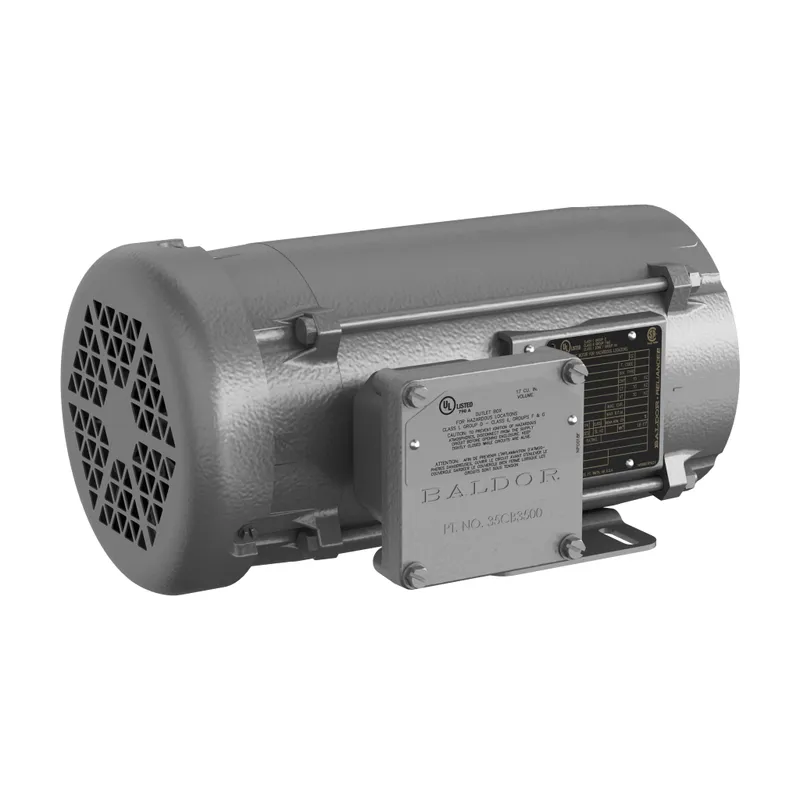

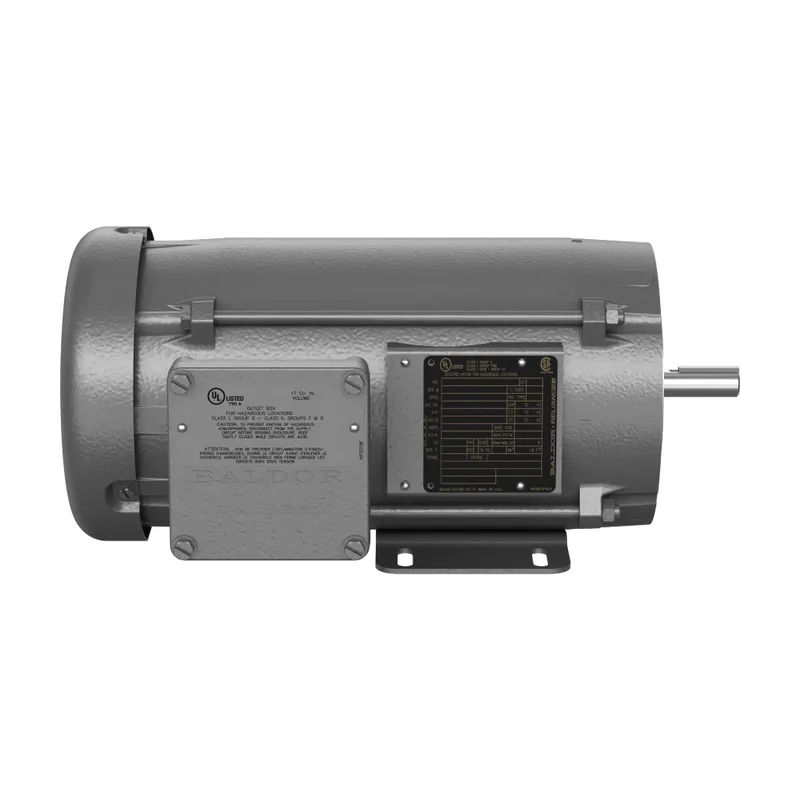

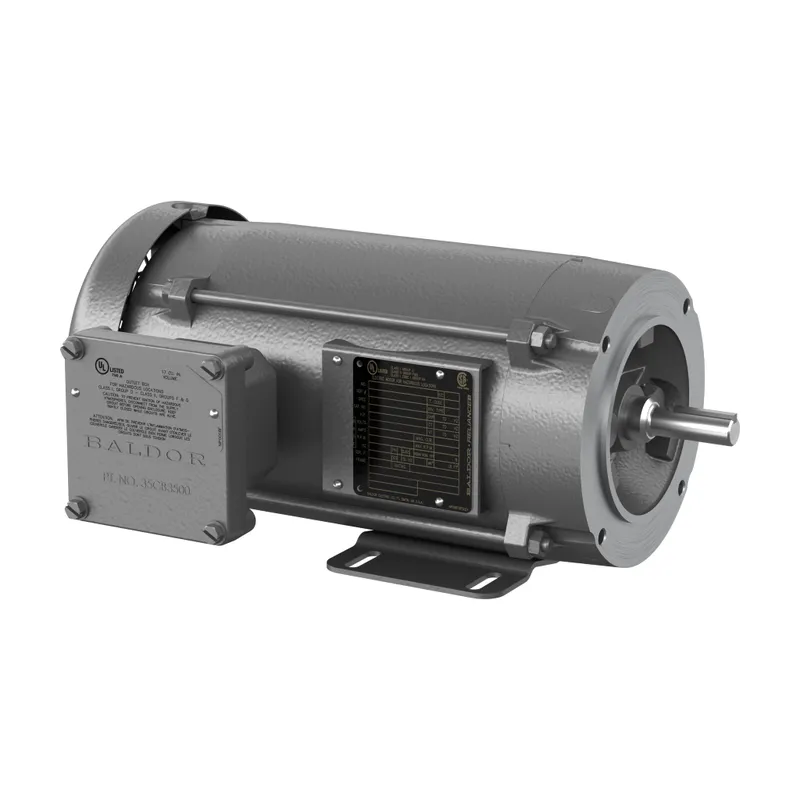

ABB CXM050342

0.33//0.25HP,1780//1480RPM,3PH,60//

MPN: CXM050342
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB CXM050342?

Explosion Proof General Purpos 0.250.000 Hp 190 V (CXM050342)

Specifications

Ordering

Catalog Number	CXM050342
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	49 %
Rated Efficiency	80 %
Service Factor	1.15
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.250.000 Hp, 0.330 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	37 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE2098

Certificates and Declarations

Certification Agency	CSA, CSA EEV, UL
ETIM 7	EC001851 - Electric motor
