Home / ABB / XP general purpose / ABB XM181562T

ABB

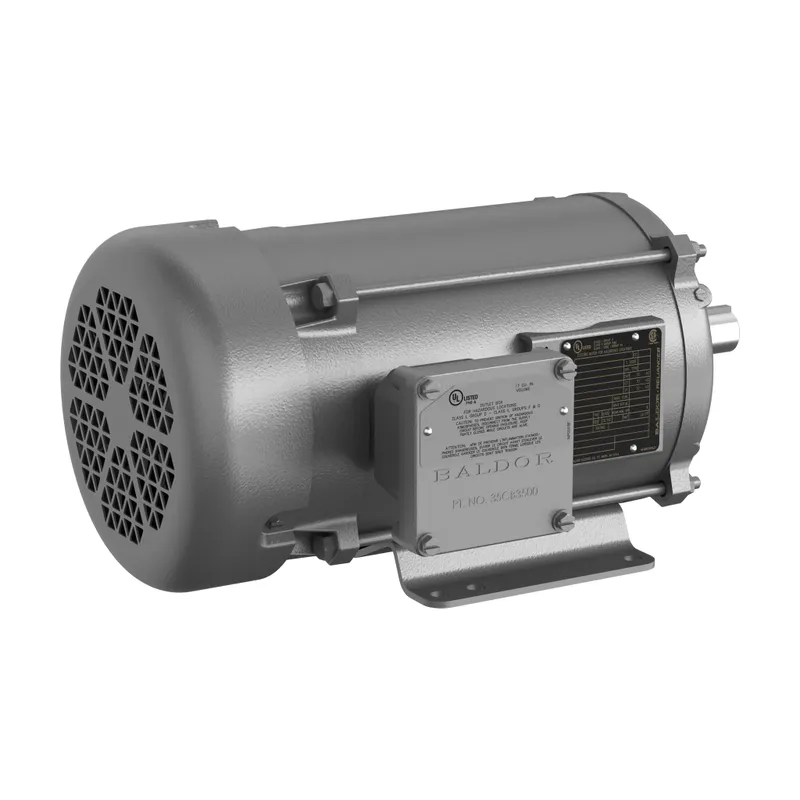

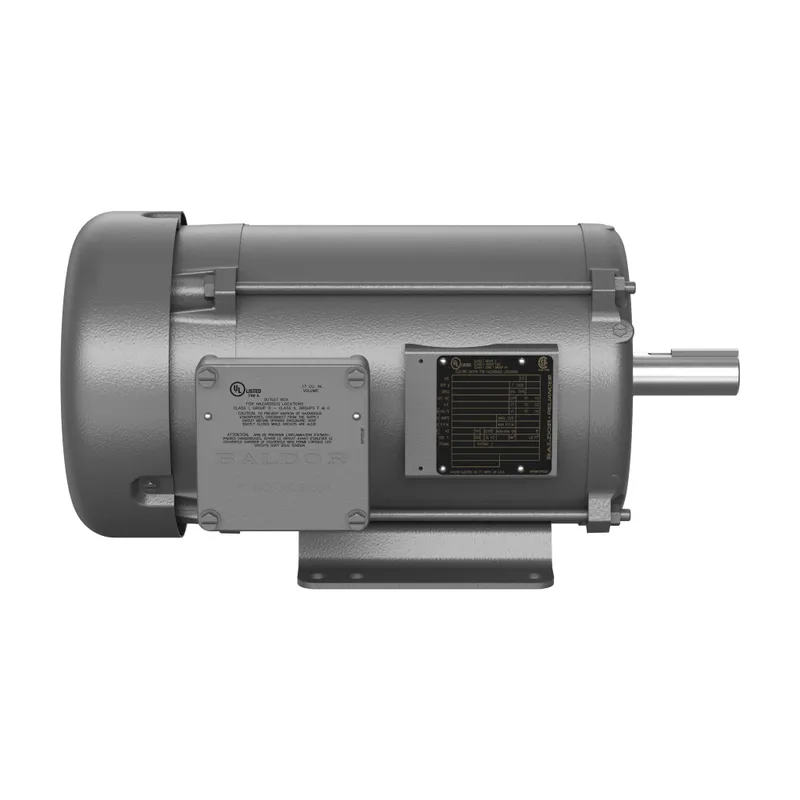

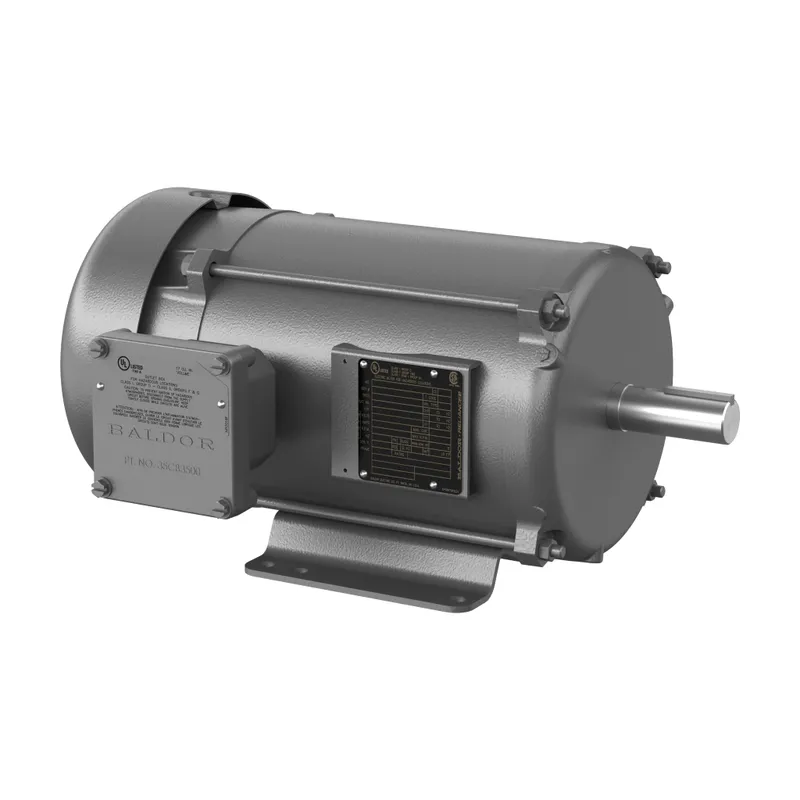

ABB XM181562T

32M 6P XPFC HOR 182T T'STATS INVERT

MPN: XM181562T
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB XM181562T?

Explosion Proof General Purpos 1.500 Hp 190 V (XM181562T)

Specifications

Ordering

Catalog Number	XM181562T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	67 %
Rated Efficiency	87.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1000 r/min, 1200 r/min
Output Power	1.500 Hp, 1 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	182T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.25 in
Product Net Weight	102 lb
Product Net Width	16.625 in
Dimension Diagram	36LYR726

Certificates and Declarations

Certification Agency	CSA EEV, UL, UR
ETIM 7	EC001851 - Electric motor
