Home / ABB / XP general purpose / ABB VXL051542A
ABB

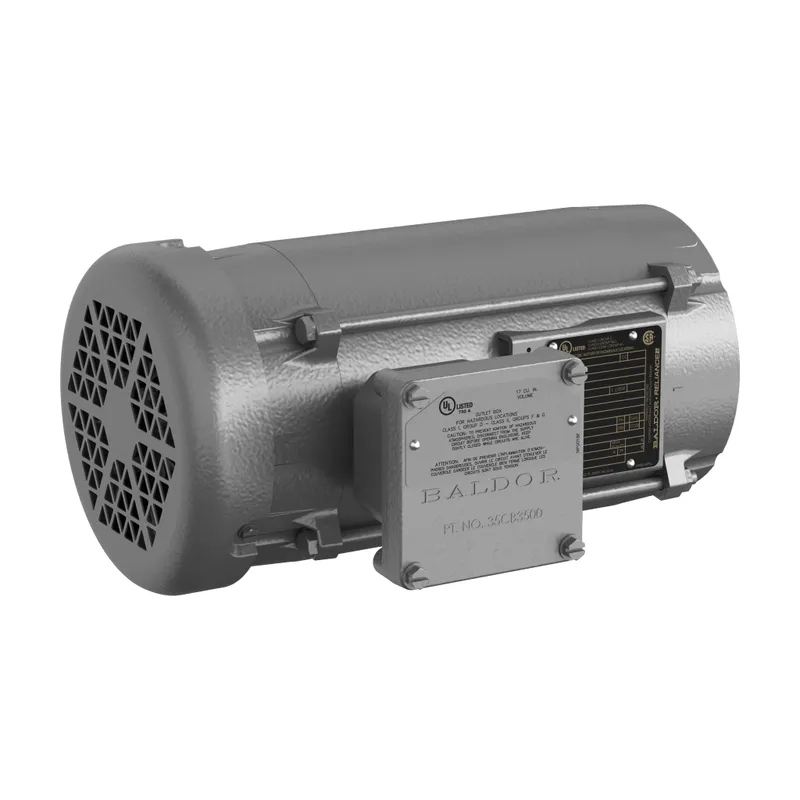

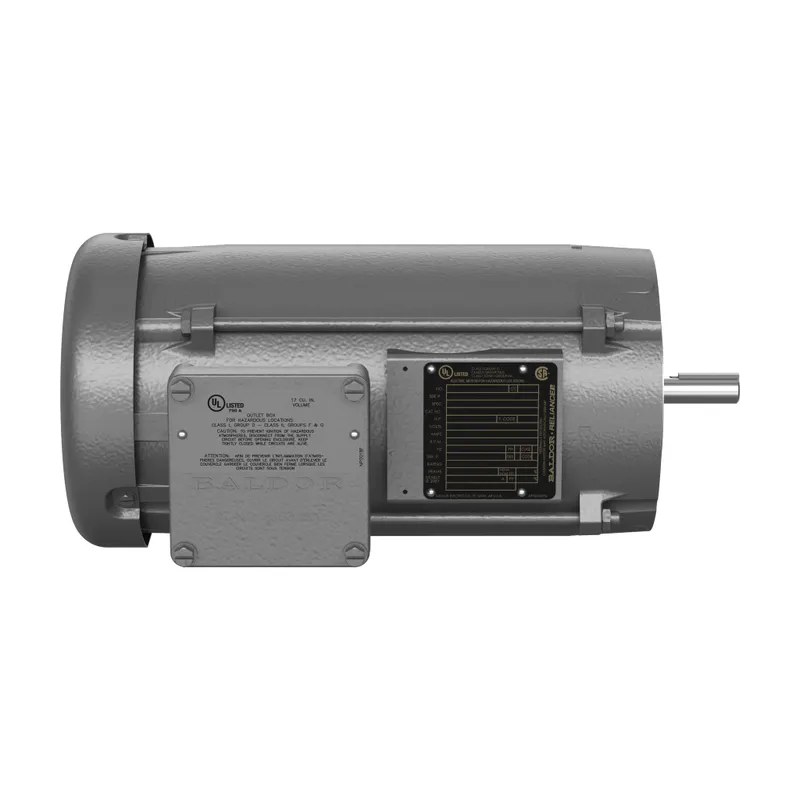

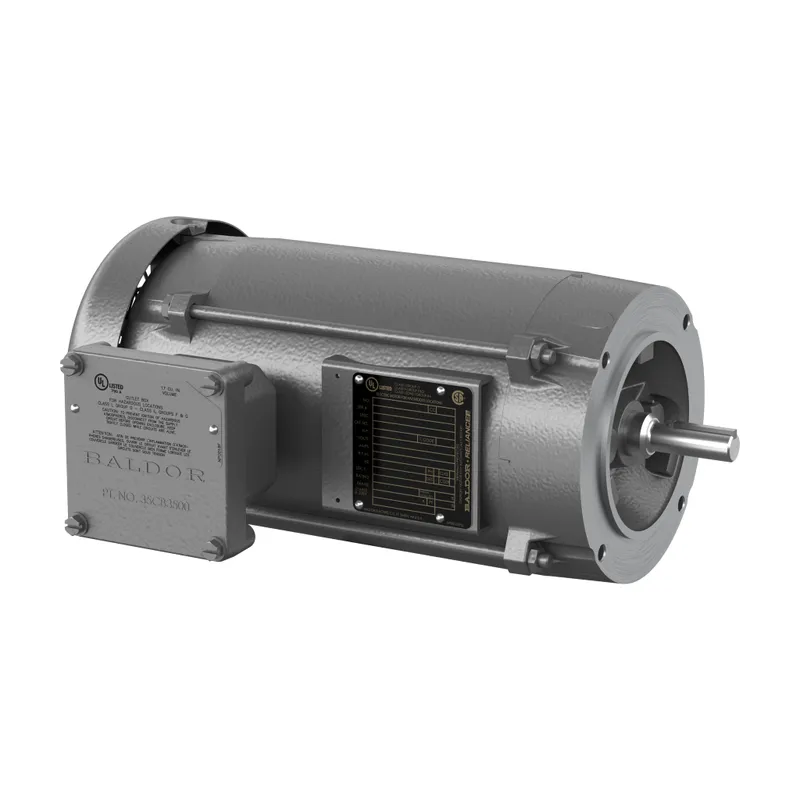

ABB VXL051542A

1.5HP,1730RPM,1PH,60HZ,56C,3546L,XP

MPN
VXL051542A
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VXL051542A?

Explosion Proof General Purpos 1.5 Hp 115 V (VXL051542A)

Specifications

Ordering

Catalog NumberVXL051542A
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelNot Regulated / Exempt
Insulation ClassB
NEMA Design CodeL
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor78 %
Rated Efficiency75 %
Service Factor1.00
Temperature ClassT2C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1800 r/min
Output Power1.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeXPFC
Explosion Proof Group ClassClass I, Group D, Class II, Group F & G G
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeNo Mounting
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height15.125 in
Product Net Weight73 lb
Product Net Width16.125 in
Dimension Diagram35LYE371

Certificates and Declarations

Certification AgencyCSA, UL
ETIM 7EC001851 - Electric motor

VXL051542A: frequently asked questions

When can VXL051542A be shipped?

VXL051542A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VXL051542A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VXL051542A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VXL051542A, subject to availability and destination.

More ABB parts

ABB VXL050742A – 0.75HP,1750RPM,1PH,60HZ,56C,3528L,X
ABB
VXL050742A

0.75HP,1750RPM,1PH,60HZ,56C,3528L,X

ABB VXL05122A – 1HP,3450RPM,1PH,60HZ,56C,3524L,XPFC
ABB
VXL05122A

1HP,3450RPM,1PH,60HZ,56C,3524L,XPFC

ABB VXL05142A – 1HP,1725RPM,1PH,60HZ,56C,3528L,XPFC
ABB
VXL05142A

1HP,1725RPM,1PH,60HZ,56C,3528L,XPFC

ABB VXL051522 – 1.5HP,3450RPM,1PH,60HZ,56C,3530L,XP
ABB
VXL051522

1.5HP,3450RPM,1PH,60HZ,56C,3530L,XP

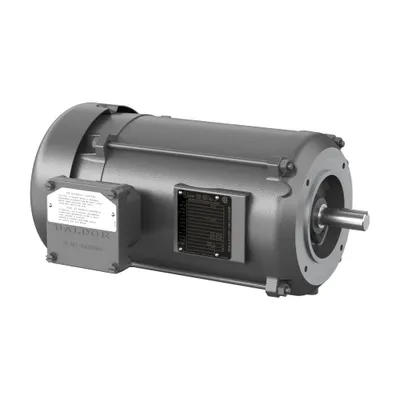

ABB VXL18242 – 2HP,1750RPM,1PH,60HZ,184C,3634L,XPF
ABB
VXL18242

2HP,1750RPM,1PH,60HZ,184C,3634L,XPF

ABB VXM050242A – 0.25HP,1725RPM,3PH,60HZ,56C,XPFC,F1
ABB
VXM050242A

0.25HP,1725RPM,3PH,60HZ,56C,XPFC,F1

ABB VXM050342A – 0.333HP,1725RPM,3PH,60HZ,56C,XPFC,F
ABB
VXM050342A

0.333HP,1725RPM,3PH,60HZ,56C,XPFC,F

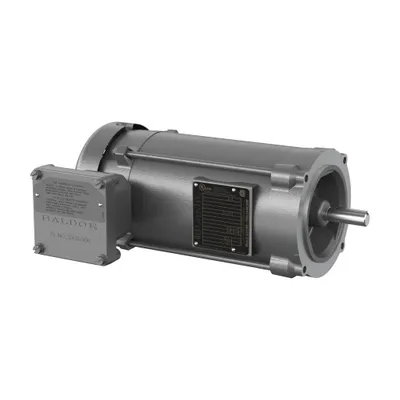

ABB VXM050522A – .5HP,3450RPM,3PH,60HZ,56C,3410M,XPF
