Home / ABB / XP general purpose / ABB VXM05142

ABB

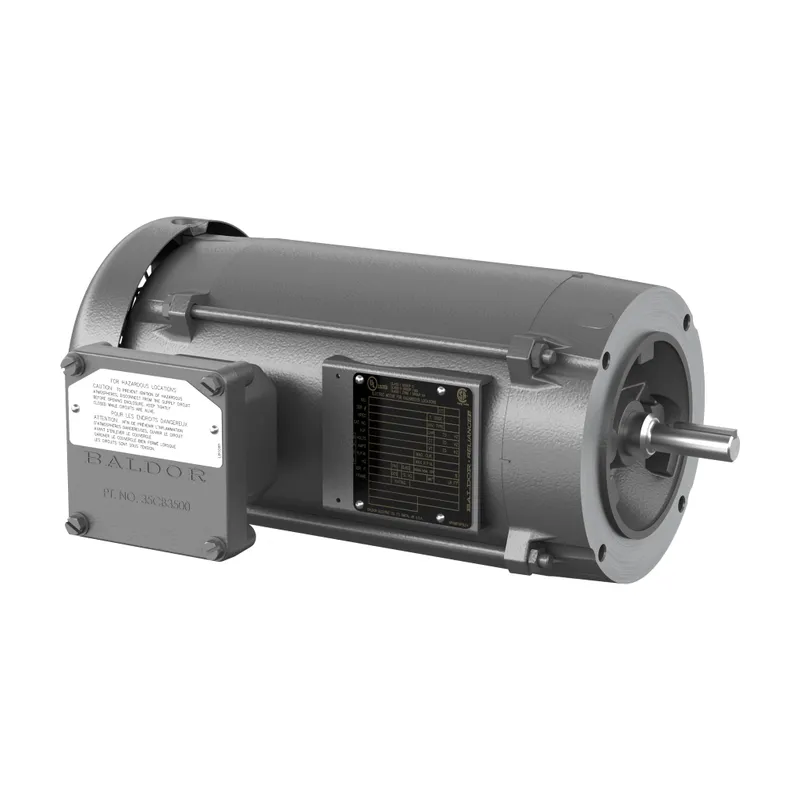

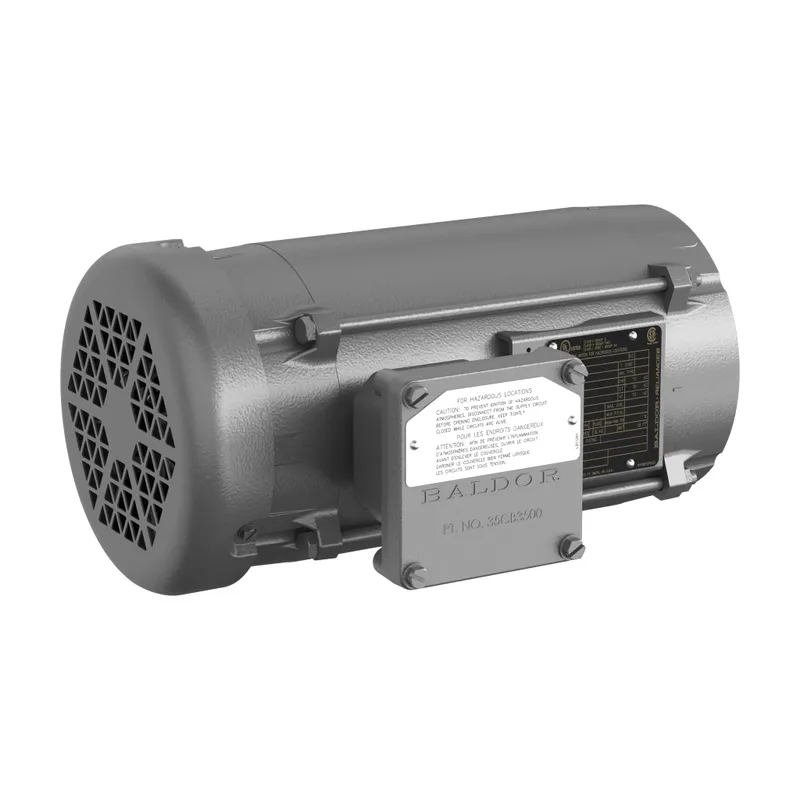

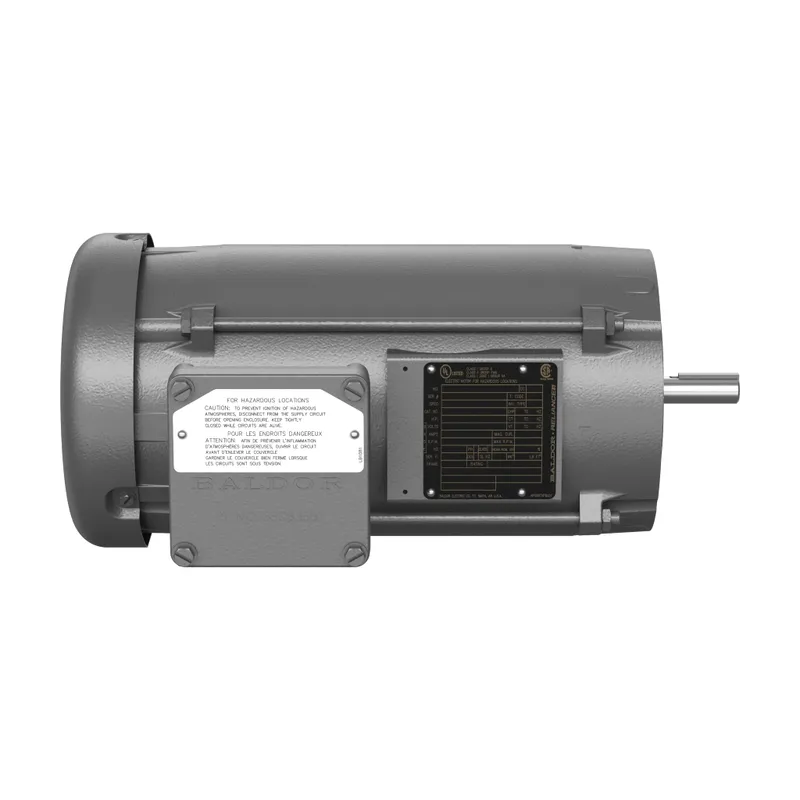

ABB VXM05142

1//.75HP,1770//1475RPM,3PH,60//50HZ

MPN: VXM05142
Category: XP general purpose

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VXM05142?

Explosion Proof General Purpos 0.750 Hp 190 V (VXM05142)

Specifications

Ordering

Catalog Number	VXM05142
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	69 %
Rated Efficiency	85.50 %
Service Factor	1.00
Temperature Class	T3C
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.750 Hp, 1.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	XPFC
Explosion Proof Group Class	Class I, Group D, Class II, Group F & G G
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	50 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE370

Certificates and Declarations

Certification Agency	CSA EEV, UL, UR
ETIM 7	EC001851 - Electric motor
