What is the Bosch Rexroth 3842993678?

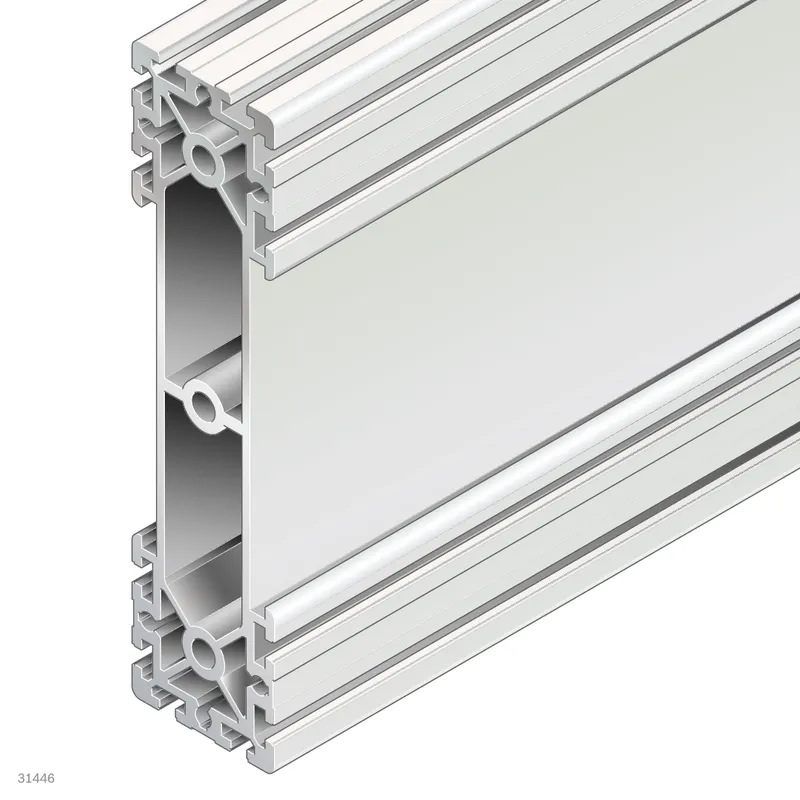

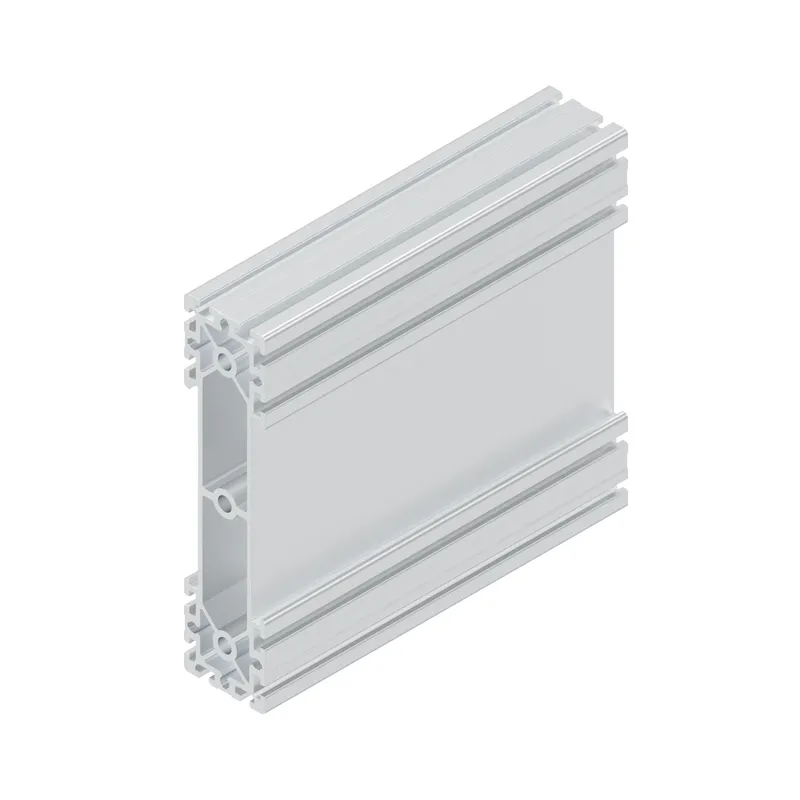

Strut profile 90x360 Q&E

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

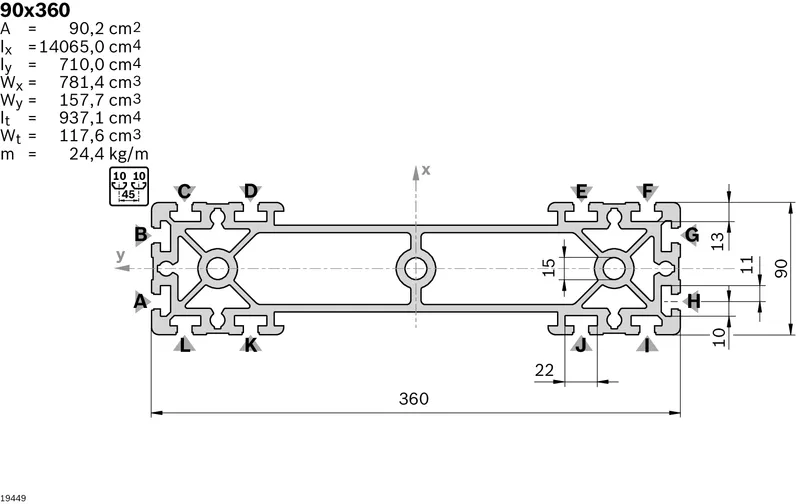

Cross-section	90x360
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x360
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS
Standard profile finishing	M16 / D9,8(C,D,E,F,I,J,K,L)<sup>1)</sup> / D17(C,D,E,F,I,J,K,L)<sup>1)</sup> / DB17 / F1(A,G)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	24.4
Area moment of inertia in x-direction [lx] [cm⁴]	14065
Area moment of inertia in y-direction [ly] [cm⁴]	710
Profile surface [A] [cm²]	90.2
Moment of resistance in the x-direction [Wx] [cm³]	781.4
Moment of resistance in the y-direction [Wy] [cm³]	157.7
Torsional moment of inertia [It] [cm⁴]	937.1
Moment of torsion resistance [Wt] [cm³]	117.6
Notice	Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 90x90, black; Cover cap 90x90, signal gray; Cover cap with hole 90x90, black; Cover cap with hole 90x90, signal gray
Weight [kg]	0
