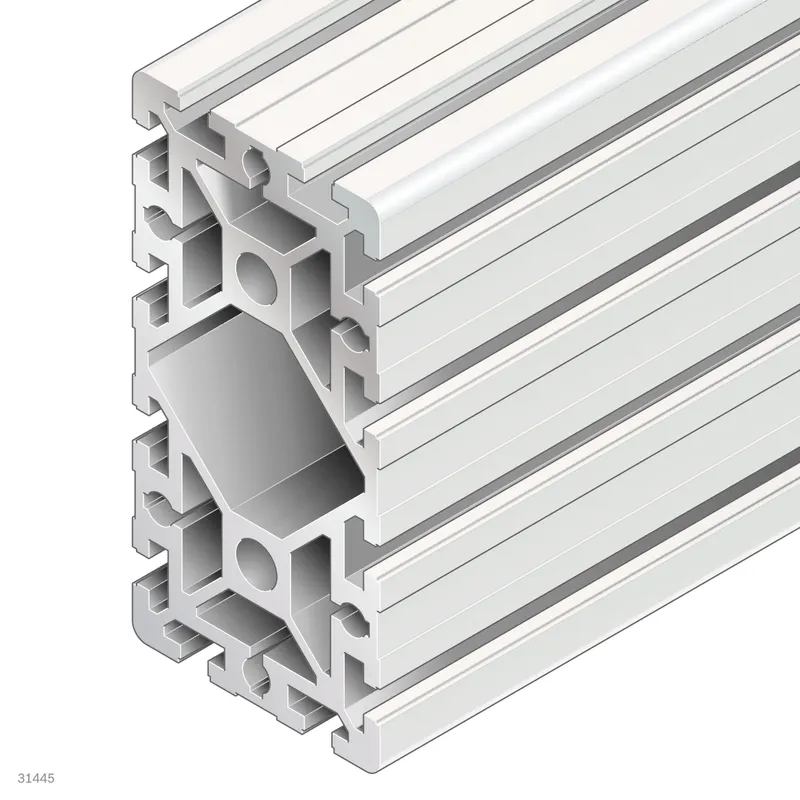

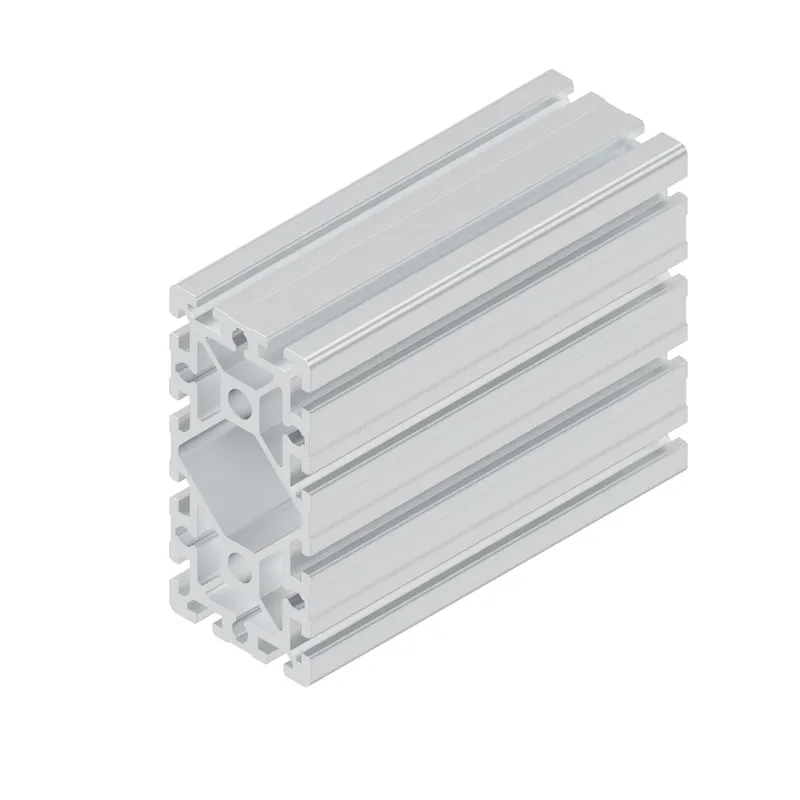

Bosch Rexroth 3842992378

STRUT PROFILE 90X180 D17V/D17V

MPN: 3842992378
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992378?

Strut profile 90x180 D17V/D17V

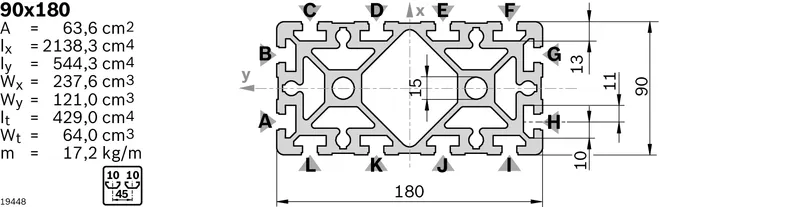

Specifications

Condition on delivery	Profile finishing
Cross-section	90x180
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x180
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	17.2
Area moment of inertia in x-direction [lx] [cm⁴]	2138.3
Area moment of inertia in y-direction [ly] [cm⁴]	544.3
Profile surface [A] [cm²]	63.6
Moment of resistance in the x-direction [Wx] [cm³]	237.6
Moment of resistance in the y-direction [Wy] [cm³]	121
Torsional moment of inertia [It] [cm⁴]	429.0
Moment of torsion resistance [Wt] [cm³]	64.0
Profile adaption	D17V: in slots A/H, B/G; LF-S: in slots D/K, E/J; LF: in slots A/H, B/G; M16: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 90x90, black; Cover cap 90x90, signal gray; Cover cap with hole 90x90, black; Cover cap with hole 90x90, signal gray
Weight [kg]	0
