Bosch Rexroth 3842516015
STRUT PROFILE 90X180L 3X5600MM
- MPN
- 3842516015
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842516015?

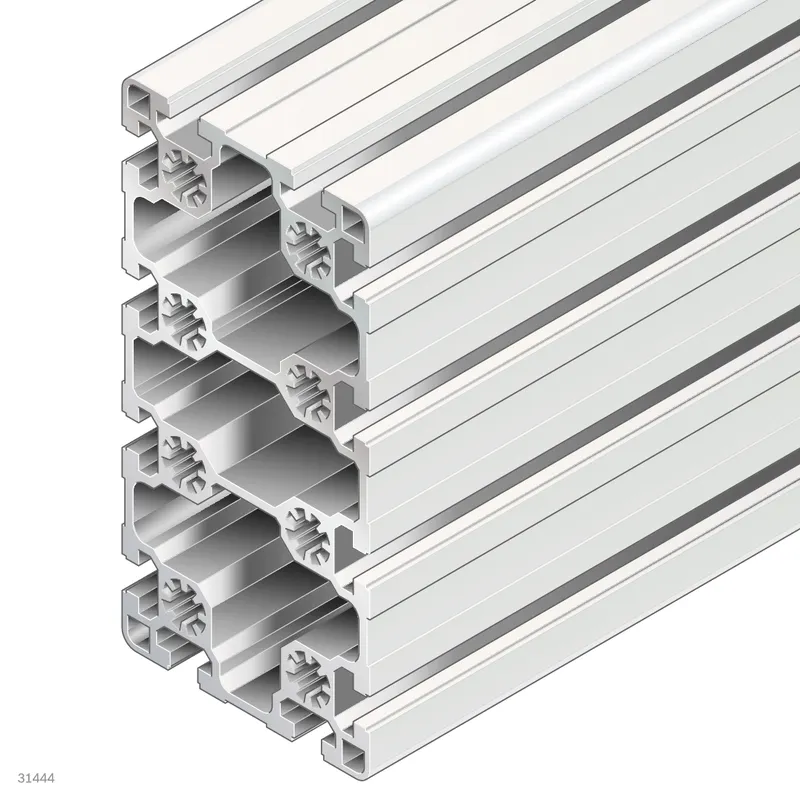

Strut profile 90x180L, 3xL=5600mm
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Cross-section | 90x180L |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| ESD | Yes |
| Dimensions | 90x180 |
| Open slots | 12.0 |
| Profile type | Standard |
| Color | Natural |
| Delivery unit | 3 |
| Mass [m] [kg] | 11.6 |

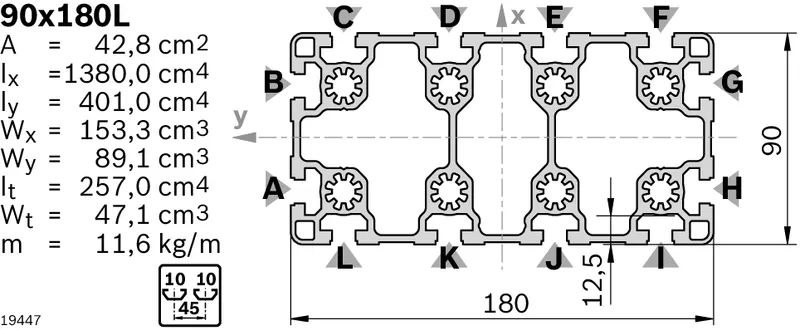

| Area moment of inertia in x-direction [lx] [cm⁴] | 1380 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 401 |
| Profile surface [A] [cm²] | 42.8 |
| Moment of resistance in the x-direction [Wx] [cm³] | 153.3 |
| Moment of resistance in the y-direction [Wy] [cm³] | 89.1 |
| Torsional moment of inertia [It] [cm⁴] | 257.0 |
| Moment of torsion resistance [Wt] [cm³] | 47.1 |
| Length [L] | 5600.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 90x90L, black; Cover cap 90x90L, signal gray |
| Weight [kg] | 213 |
