Bosch Rexroth 3842992857

STRUT PROFILE 90X180L

MPN: 3842992857
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992857?

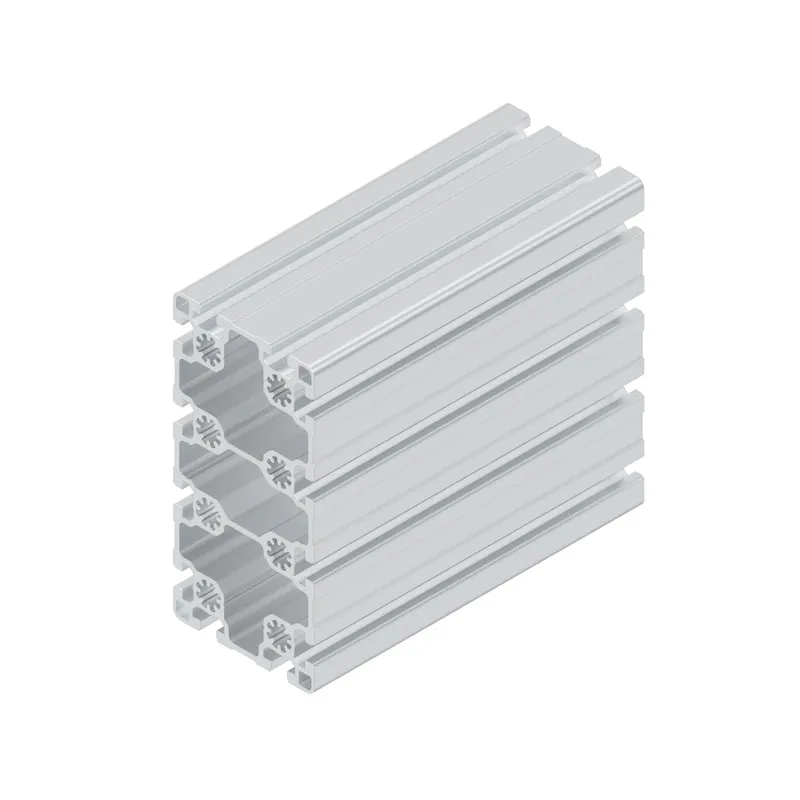

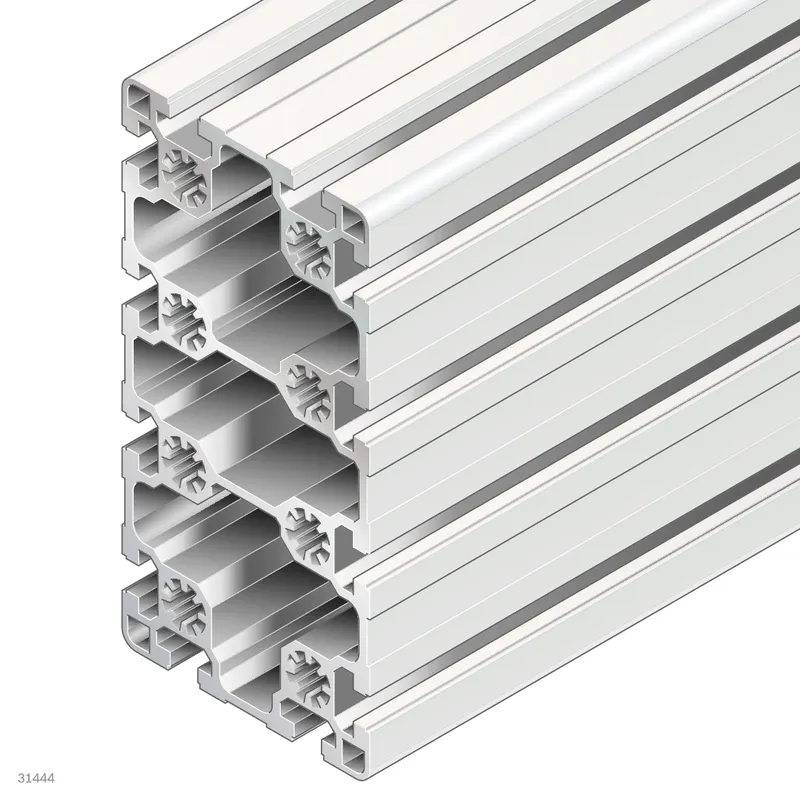

Strut profile 90x180L

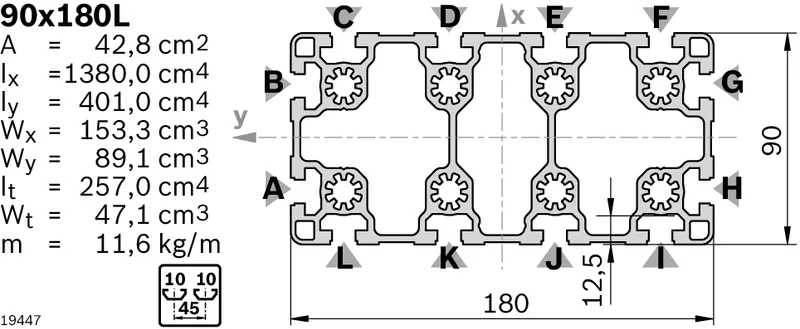

Specifications

Condition on delivery	Variable length
Cross-section	90x180L
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x180
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Material	Aluminum, anodized
Mass [m] [kg]	11.6
Area moment of inertia in x-direction [lx] [cm⁴]	1380
Area moment of inertia in y-direction [ly] [cm⁴]	401
Profile surface [A] [cm²]	42.8
Moment of resistance in the x-direction [Wx] [cm³]	153.3
Moment of resistance in the y-direction [Wy] [cm³]	89.1
Torsional moment of inertia [It] [cm⁴]	257.0
Moment of torsion resistance [Wt] [cm³]	47.1
Profile adaption	D17V: in slots A/H, B/G; LF: in slots A/H, B/G; M12: in all core holes
Recommended accessories	Cover cap 90x90L, signal gray; Cover cap 90x90L, black
Weight [kg]	0
