Bosch Rexroth 3842993494

STRUT PROFILE 20X20 M6/D8

MPN: 3842993494
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

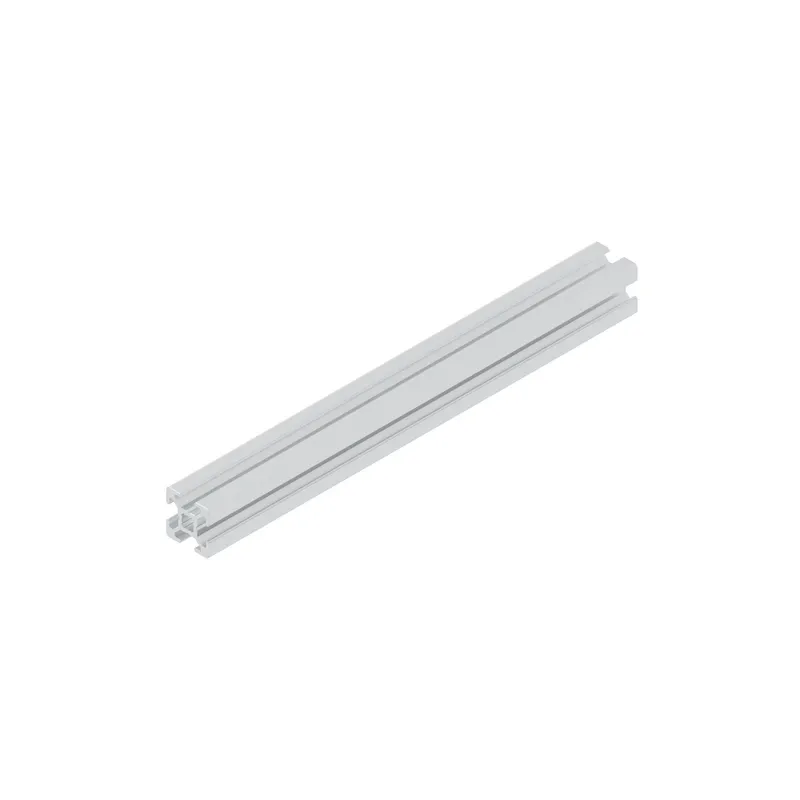

What is the Bosch Rexroth 3842993494?

Strut profile 20x20 M6/D8

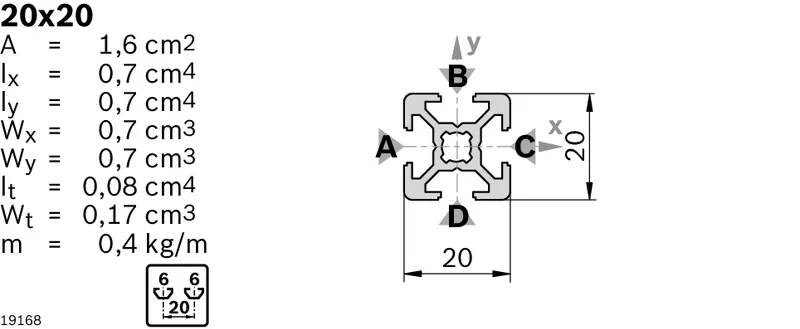

Specifications

Condition on delivery	Profile finishing
Cross-section	20x20
Modular dimension [mm]	20
Profile slot	6
Dimensions	20x20
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	3000
Length min [L min] [mm]	70
Packaging unit	1
Mass [m] [kg]	0.4
Area moment of inertia in x-direction [lx] [cm⁴]	0.7
Area moment of inertia in y-direction [ly] [cm⁴]	0.7
Profile surface [A] [cm²]	1.6
Moment of resistance in the x-direction [Wx] [cm³]	0.7
Moment of resistance in the y-direction [Wy] [cm³]	0.7
Torsional moment of inertia [It] [cm⁴]	0.08
Moment of torsion resistance [Wt] [cm³]	0.17
Material	Aluminum, anodized
Recommended accessories	Cover cap 20x20, black; Cover cap 20x20, signal gray
Weight [kg]	0
