What is the Bosch Rexroth 3842993693?

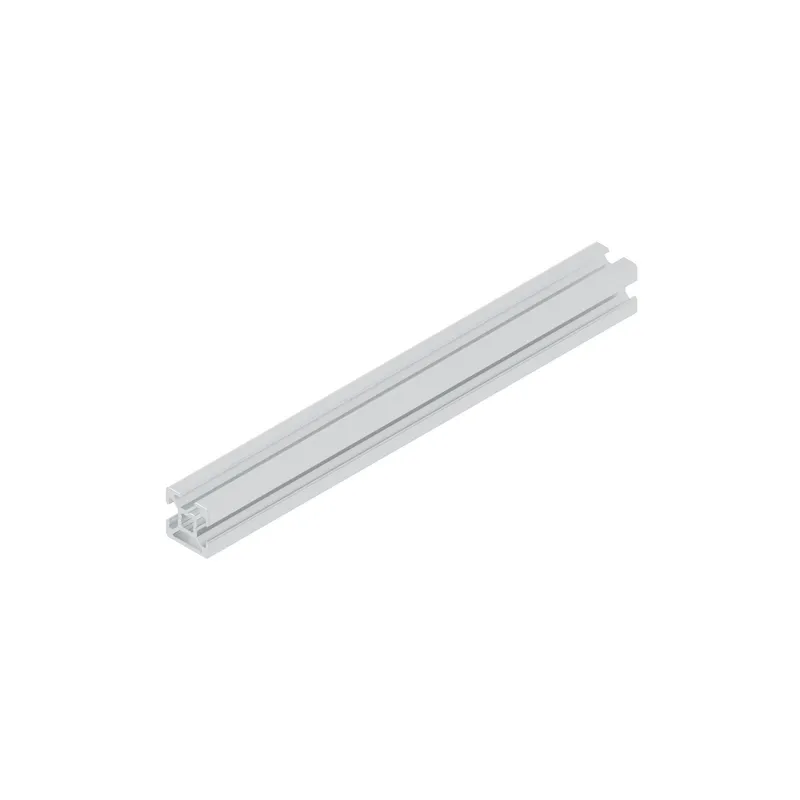

Strut profile 20x20 3N Q&E

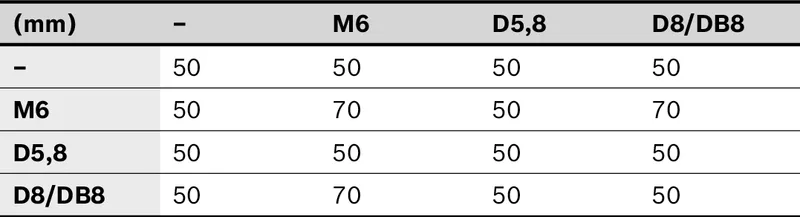

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing
Cross-section	20x20 3N
Modular dimension [mm]	20
Profile slot	6
Dimensions	20x20
Open slots	3.0
Profile type	3N
Color	Natural
Length max [L max] [mm]	3000
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	M6 / D5.8 / D8 / DB8
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	0.5

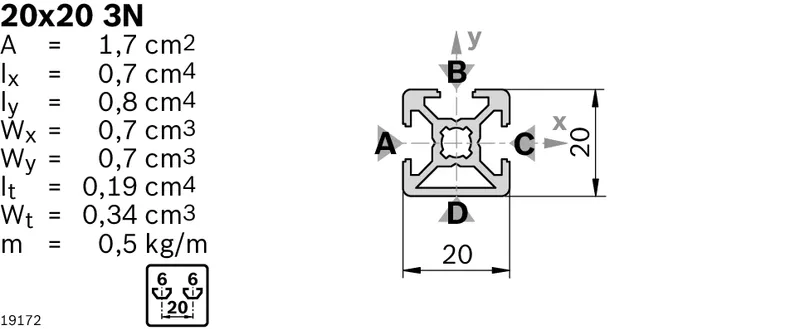

Area moment of inertia in x-direction [lx] [cm⁴]	0.7
Area moment of inertia in y-direction [ly] [cm⁴]	0.8
Profile surface [A] [cm²]	1.7
Moment of resistance in the x-direction [Wx] [cm³]	0.7
Moment of resistance in the y-direction [Wy] [cm³]	0.7
Torsional moment of inertia [It] [cm⁴]	0.19
Moment of torsion resistance [Wt] [cm³]	0.34
Notice	DGmax = 45°, Lmin1 / Lmin2 = 335/370mm
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	2300
Recommended accessories	Cover cap 20x20, black; Cover cap 20x20, signal gray
Weight [kg]	0
