Bosch Rexroth 3842537816

STRUT PROFILE 20X40 24X3000MM

MPN: 3842537816
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842537816?

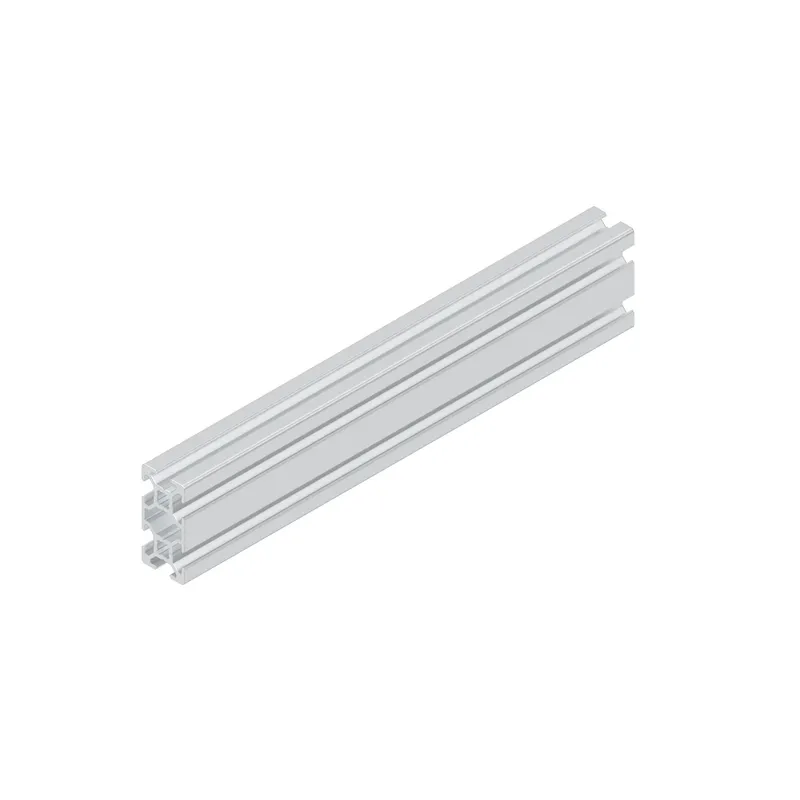

Strut profile 20x40, 24xL=3000mm

Specifications

Condition on delivery	Packaging unit in standard length

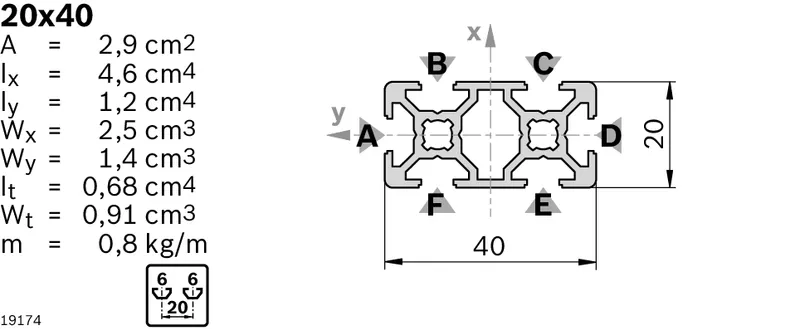

Cross-section	20x40
Modular dimension [mm]	20
Profile slot	6
Dimensions	20x40
Open slots	6.0
Profile type	Standard
Color	Natural
Delivery unit	24
Length [L]	3000.0
Material	Aluminum, anodized
Mass [m] [kg]	0.8
Area moment of inertia in x-direction [lx] [cm⁴]	4.6
Area moment of inertia in y-direction [ly] [cm⁴]	1.2
Profile surface [A] [cm²]	2.9
Moment of resistance in the x-direction [Wx] [cm³]	2.5
Moment of resistance in the y-direction [Wy] [cm³]	1.4
Torsional moment of inertia [It] [cm⁴]	0.68
Moment of torsion resistance [Wt] [cm³]	0.91
Profile adaption	D8: in slots B/F, C/E; D8V: in slots A/D
Recommended accessories	Cover cap 20x20, black; Cover cap 20x20, signal gray
Weight [kg]	58
